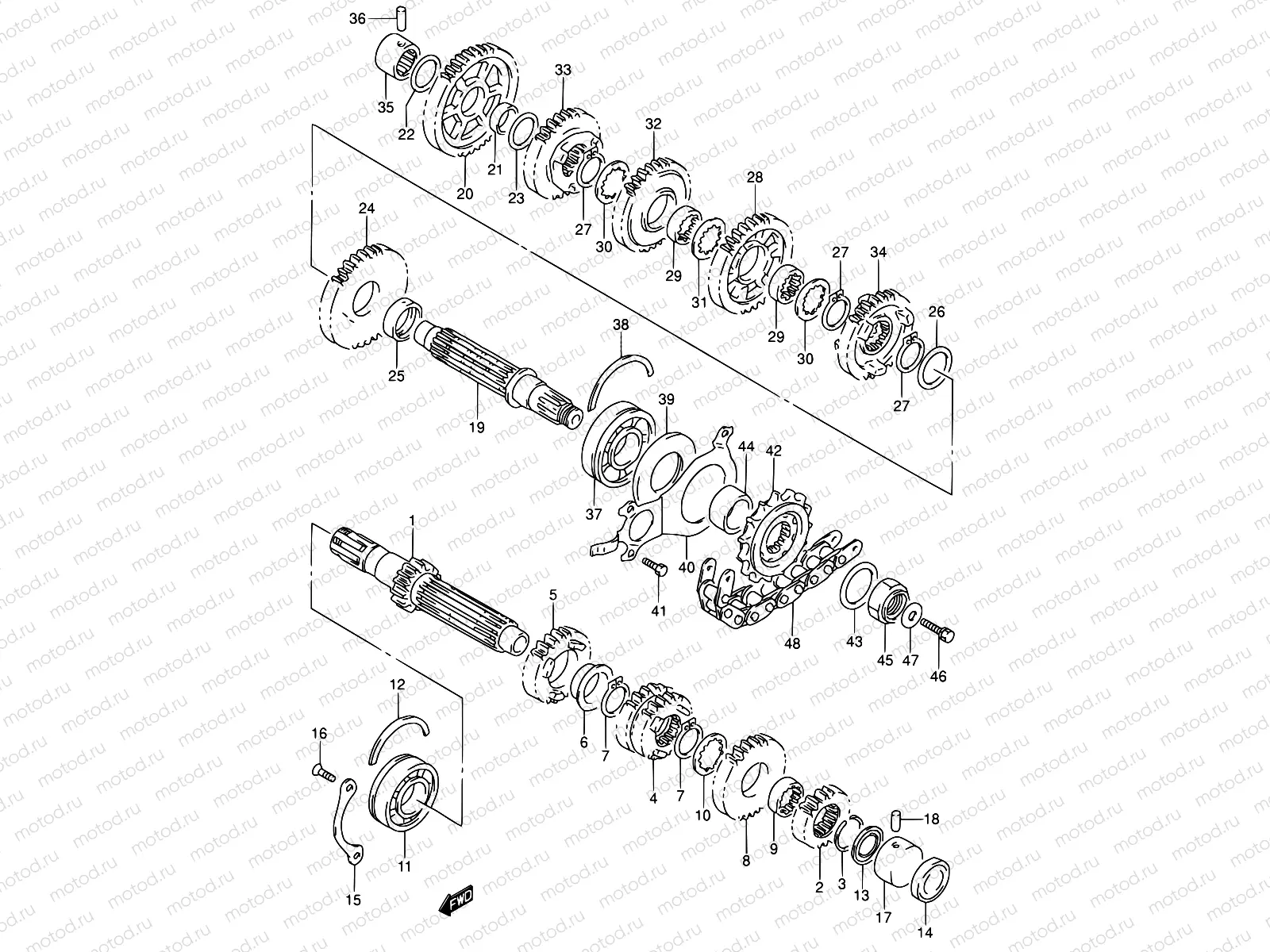

22 - TRANSMISSION

22 - TRANSMISSION

Например: 24120-17E10

1

24120-17E10

Countershaft (nt:14)

2

24221-17E00

Gear, 2nd drive (nt:17)

3

09380-27004

КЛИПС

187 ₽/шт

4

24231-17E00

Gear,3rd & 4th

5

24251-17E11

Gear,5th drive

6

09301-28001

BUSH(28X32X2)

14 700 ₽/шт

7

09380-27001

CIRCLIP

1 170 ₽/шт

8

24261-17E10

Gear,6th drive

9

24262-17E01

BUSH

2 561 ₽/шт

10

09167-27001

ШАЙБА

204 ₽/шт

11

09262-25051

Подшипник

4 441 ₽/шт

12

09390-62012

C RING

4 460 ₽/шт

13

09285-20006

Сальник

598 ₽/шт

14

23116-27A30

Cap,countershaf

15

24741-27A00

RETAINER,CNTR SHAFT BEARING

782 ₽/шт

16

02122-0616B

Болт

85 ₽/шт

17

09263-20069

BEARING(20X34X17.5)

4 379 ₽/шт

18

04221-07129

PIN

1 060 ₽/шт

19

24131-17E10

Shaft,drive

20

24311-17E20

Gear,1st driven

21

09300-22008

Втулка

791 ₽/шт

22

08211-20341

WASHER

1 410 ₽/шт

23

08211-22341

WASHER

1 840 ₽/шт

24

24321-17E10

Gear,2nd driven

25

09300-28003

BUSH(28X32X9.5)

12 630 ₽/шт

26

09181-28195

Шайба

2 310 ₽/шт

27

09380-27001

CIRCLIP

1 170 ₽/шт

28

24331-17E02

GEAR,3RD DRIVEN(NT:33)

8 954 ₽/шт

29

24332-17E02

Silentblock

30

09167-27001

ШАЙБА

204 ₽/шт

31

09167-27002

WASHER,LOCK

4 140 ₽/шт

32

24341-17E04

Gear,4th.driven

33

24351-17E02

Gear,5th driven

34

24361-17E20

GEAR,6TH DRIVEN

9 189 ₽/шт

35

09263-20040

ПОДШИПНИК ШАРИКОВЫЙ

4 505 ₽/шт

36

04221-07209

ШТИФТ

102 ₽/шт

37

09262-28025

ПОДШИПНИК

6 622 ₽/шт

38

09390-70001

C RING

4 690 ₽/шт

39

09283-36008

Сальник (36X70X6)

1 276 ₽/шт

40

24751-17E00

RETAINER,DRIVE SHAFT OIL SEAL

872 ₽/шт

41

01500-0612B

Болт

1 210 ₽/шт

42

27510-21E00

Pignon avant (Z=14)

43

09181-25268

Шайба

194 ₽/шт

44

09180-25098

Spacer

45

09159-20004

Гайка

759 ₽/шт

48

27600-16G00-110

Цепь

27 761 ₽/шт
