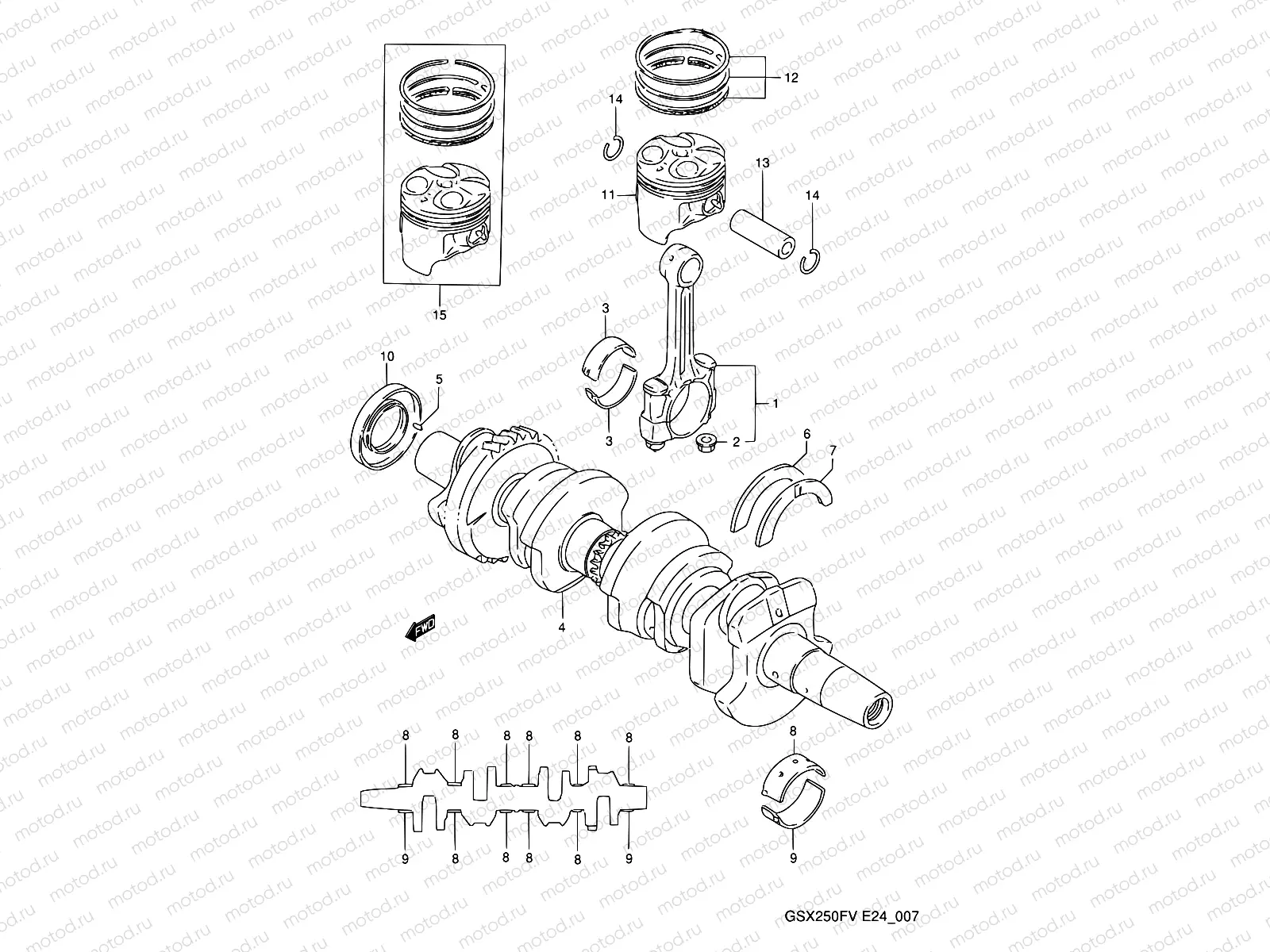

7 - CRANKSHAFT

7 - CRANKSHAFT

Например: 12160-05C02

1

12160-05C02

Rod assy, conecting

2

09159-06046

.nut

3

12164-05C01-0A0

Plane bearing - connecting rod (GREEN)

3

12164-05C01-0B0

EARING,CRANK PIN

1 580 ₽/шт

3

12164-05C01-0C0

ВКЛАДЫШИ КОЛЕНВАЛА

1 744 ₽/шт

3

12164-05C01-0D0

Bearing, crank pin (yellow)

4

12000-05821

Crankshaft set

5

09202-03016

PIN

1 020 ₽/шт

6

12228-38414

PLATE,CRANK THRUST

567 ₽/шт

7

12228-38411

.bearing, crank thrust (red)

7

12228-38412

.bearing, crank thrust (black)

7

12228-38413

.bearing, crank thrust (blue)

7

12228-38414

PLATE,CRANK THRUST

567 ₽/шт

7

12228-38415

.bearing, crank thrust (yellow

7

12228-38416

.bearing, crank thrust (white)

8

12229-38402-010

Metal,crankshaf (GREEN)

8

12229-48H00-0B0

EARING,CRANK BALANCER

1 048 ₽/шт

8

12229-38402-030

Bearing, crankshaft (brown)

8

12229-38402-040

Bearing, crankshaft (yellow)

9

12229-05C00-0A0

Bearing,cranksh (GREEN)

9

12229-05C00-0B0

earing,cranksh (BLACK)

9

12229-05C00-0C0

BEARING,CRANKSHAFT(BROWN)

739 ₽/шт

9

12229-05C00-0D0

BEARING,CRANKSHAFT(YELLOW)

669 ₽/шт

10

09283-28014

Сальник

1 227 ₽/шт

11

12111-05C04

PISTON (49.00MM)

69 190 ₽/шт

12

12140-05C00

Ring set,piston

13

12151-06C01

Палец поршня

813 ₽/шт

14

09381-14001

КОЛЬЦО СТОПОРНОЕ

113 ₽/шт

15

12100-05C00-050

Piston kit (OS: 0.5)

15

12100-05C00-100

Piston kit (1,0)
