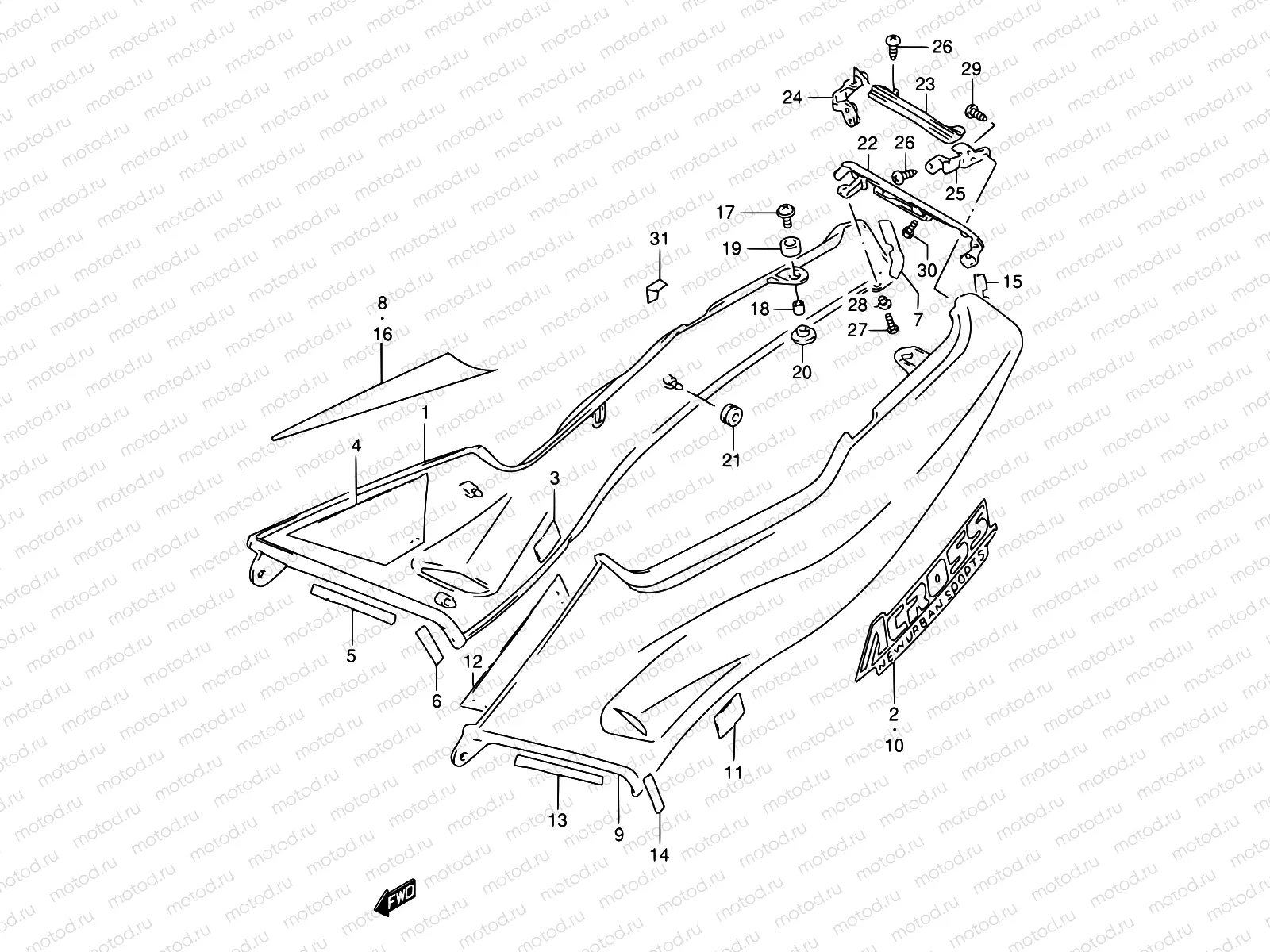

37B - FRAME COVER (MODEL P/R/T)

37B - FRAME COVER (MODEL P/R/T)
Например: 47110-24D00-10X
1
47110-24D00-10X
Cover, frame rh (red)
2
68131-24D10-K84
EMBLEM,FRAME COVER
3 499 ₽/шт
3
44885-38A00
CUSHION
254 ₽/шт
4
47117-24D00
.shield, heat rh
5
47161-24D00
Protector,frame
6
94461-08C00
PROTECTOR,FRAME COVER NO.2
313 ₽/шт
7
47162-24D00
.seal, rear
9
47210-24D00-10X
Cover, frame lh (red)
10
68131-24D10-K84
EMBLEM,FRAME COVER
3 499 ₽/шт
11
44885-38A00
CUSHION
254 ₽/шт
12
47217-24D00
.shield, heat lh
13
47161-24D00
Protector,frame
14
94461-08C00
PROTECTOR,FRAME COVER NO.2
313 ₽/шт
15
47162-24D00
.seal, rear
17
09136-06105
Болт
129 ₽/шт
18
09180-06286
Кольцо/шайба
162 ₽/шт
19
45149-04A00
CUSHION,TAIL COVER UPR
162 ₽/шт
20
45326-17C00
USHION,FRAME COVER LWR
786 ₽/шт
21
09320-08527
Cushion
1 640 ₽/шт
22
47320-24D00-19A
Cover, frame end (red)
23
47360-24D00
BRACKET,FRAME COVER RR
4 457 ₽/шт
24
47366-24D00
BRACKET,FRAME COVER RR,R
575 ₽/шт
25
47367-24D00
BRACKET,FRAME COVER RR,L
575 ₽/шт
26
02142-0508A
SCREW
85 ₽/шт
27
02142-0512A
Болт
85 ₽/шт
28
09161-05017-LCP
Rondelle
29
03541-0512B
Винт
81 ₽/шт
30
07130-05083
Vis
31
47163-24D00-19A
Protector, rear (red)
