Главная Каталог товаров SUZUKI EPC 700 cm³ - 1099 cm³ SUZUKI DL 1000 V-Strom SUZUKI DL1000 L2 V-Strom (E03,E28,E33) SUZUKI 68 - REAR SWINGINGARM

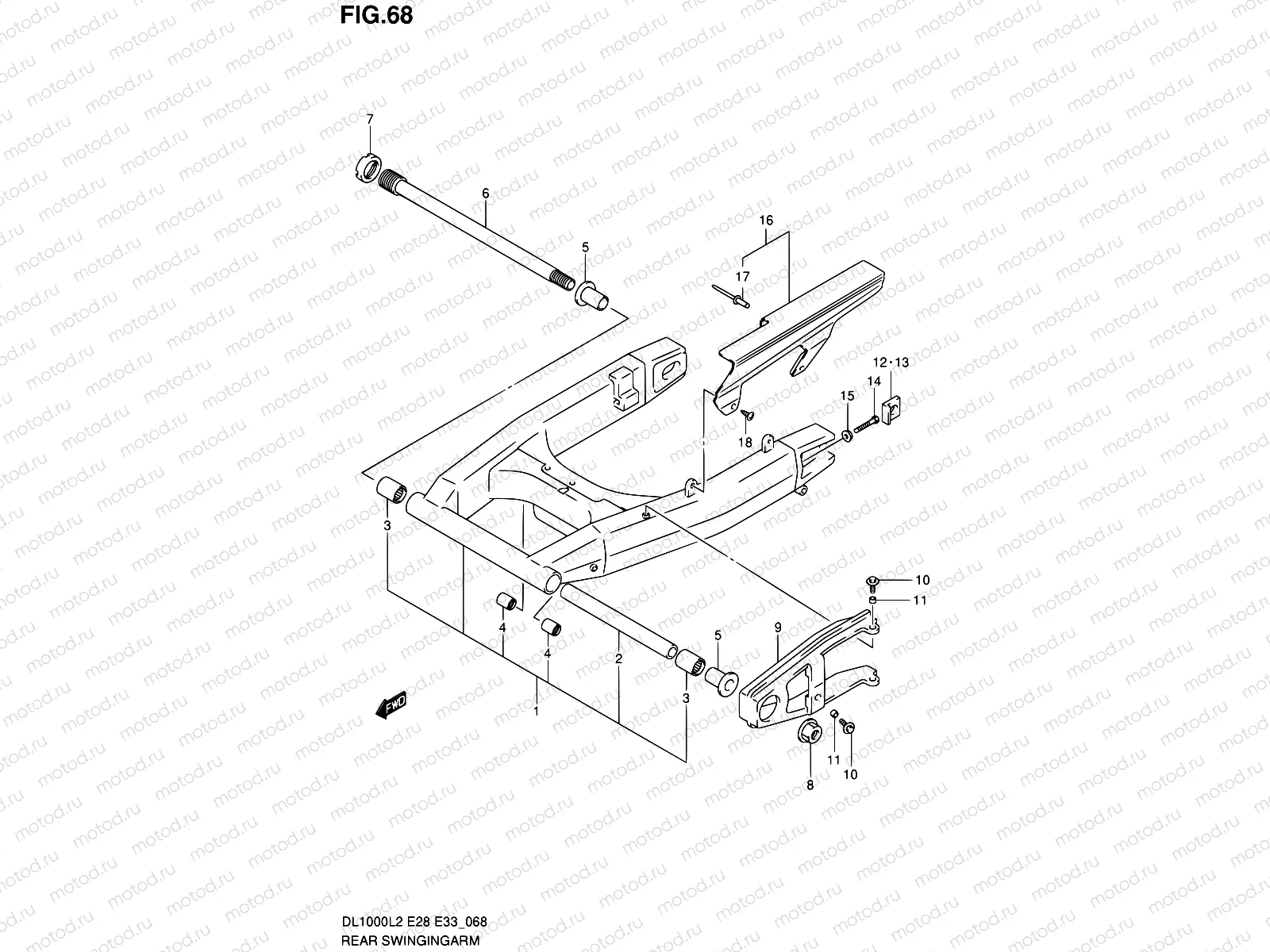

68 - REAR SWINGINGARM

68 - REAR SWINGINGARM

Например: 61000-06G20

1

61000-06G20

Swinging arm assy, rear (black)

2

09180-20118

SPACER(20.8X27.2X196.7)

11 730 ₽/шт

3

09263-25073

BEARING(25X33X35)

2 100 ₽/шт

4

09263-17053

Подшипник

1 147 ₽/шт

5

61251-31E00

SPACER,PIVOT BEARING

872 ₽/шт

6

61211-06G00

SHAFT,RR SWINGINGARM PIVOT

7 859 ₽/шт

7

61214-19F10

NUT,RR SWGARM PIVOT BOLT

1 067 ₽/шт

8

08319-3118A

Гайка

934 ₽/шт

9

61273-06G01

Buffer,chain Touch Defense

5 440 ₽/шт

10

09116-06152

BOLT(6X20)

146 ₽/шт

11

09180-06306

SPACER(6.5X9X5)

1 250 ₽/шт

12

61446-17E11

WASHER,CHAIN ADJUSTER,L

2 502 ₽/шт

13

61446-27C21

WASHER,CHAIN ADJUSTER,L

2 502 ₽/шт

14

09100-08287

BOLT(8X50)

162 ₽/шт

15

08316-1008A

Гайка вала

81 ₽/шт

16

61310-34E00

Корпус натяжения

3 825 ₽/шт

17

09229-03019

RIVET

1 410 ₽/шт

18

09139-06083

БОЛТ

194 ₽/шт
