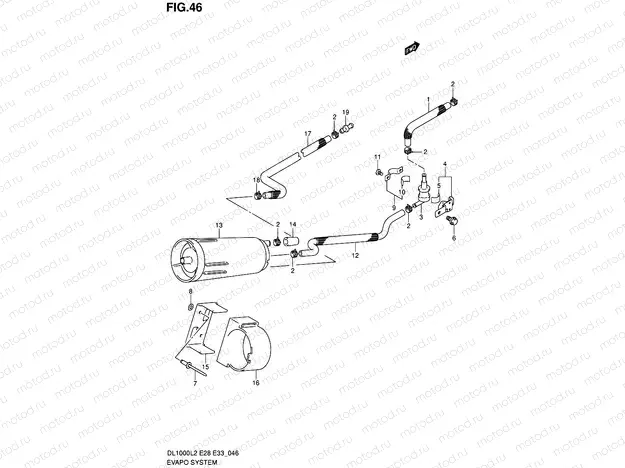

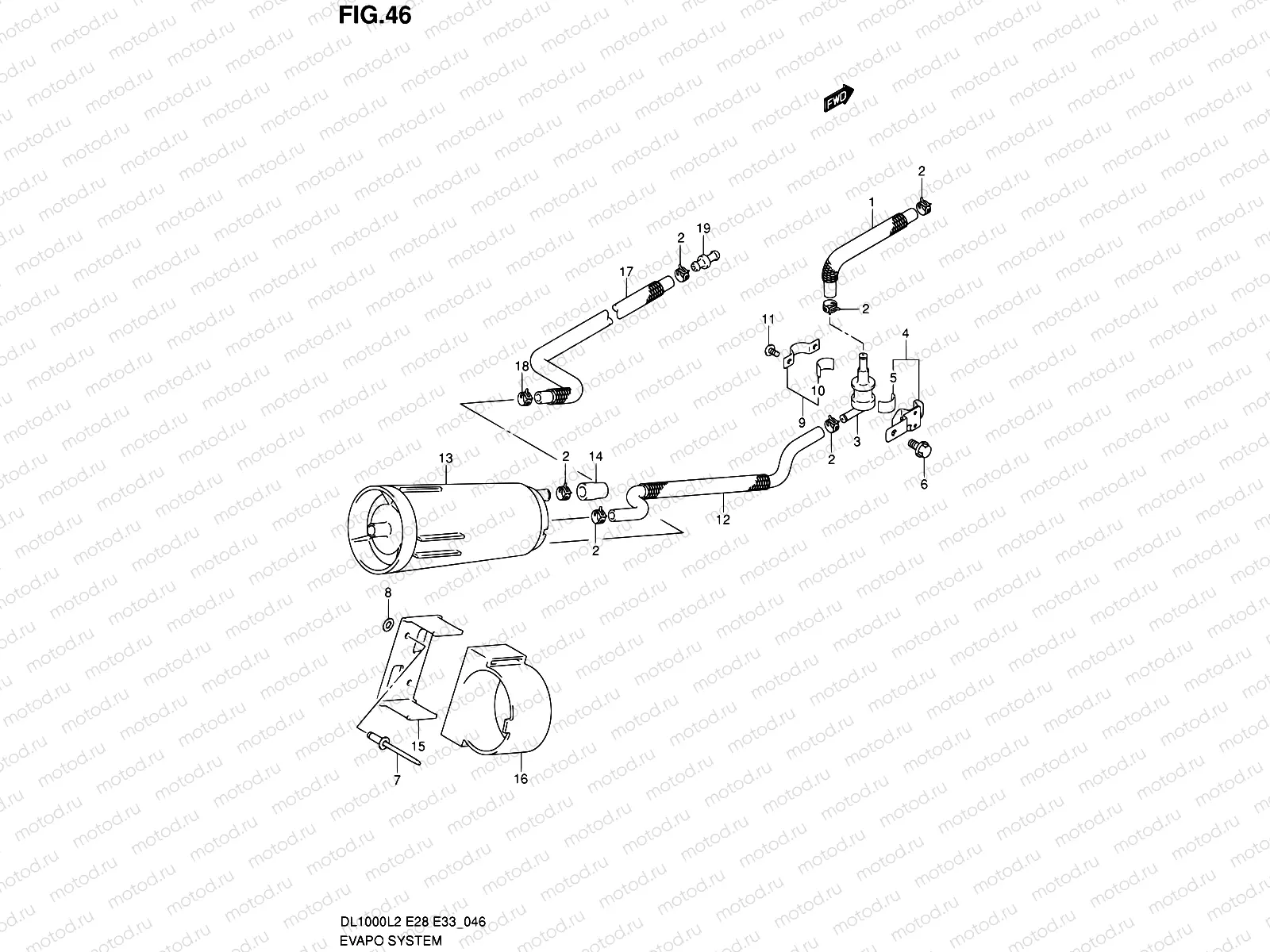

46 - EVAPO SYSTEM (DL1000L2 E33)

46 - EVAPO SYSTEM (DL1000L2 E33)

Например: 44434-06G10

1

44434-06G10

Hose, tank & valve

2

09401-11413

ХОМУТ МАЛЫЙ

102 ₽/шт

3

44240-17C00

VALVE,FUEL TANK BREATHER

3 265 ₽/шт

4

44890-06G00

PLATE,BREATHER VALVE

997 ₽/шт

5

44894-24A00

CUSHION

98 ₽/шт

6

01550-0612B

БОЛТ

81 ₽/шт

7

09229-04020

КЛИПС

97 ₽/шт

8

08322-0104B

Шайба

81 ₽/шт

9

44892-24A00

PLATE,FUEL TANK BREATHER NO.2

227 ₽/шт

10

44894-24A00

CUSHION

98 ₽/шт

11

02142-0408B

Винт

82 ₽/шт

12

44435-06G10

Hose, valve & canister

13

17210-26E00

Адсорбер с активированным углем

19 746 ₽/шт

14

09251-07005

CAP

4 220 ₽/шт

15

44881-06G00

Bracket, canister

16

44883-06G00

Damper

17

44436-06G10

Hose, purge

18

09401-12404

Крепёж

162 ₽/шт

19

09367-06009

ШАРОВАЯ ОПОРА

2 030 ₽/шт
