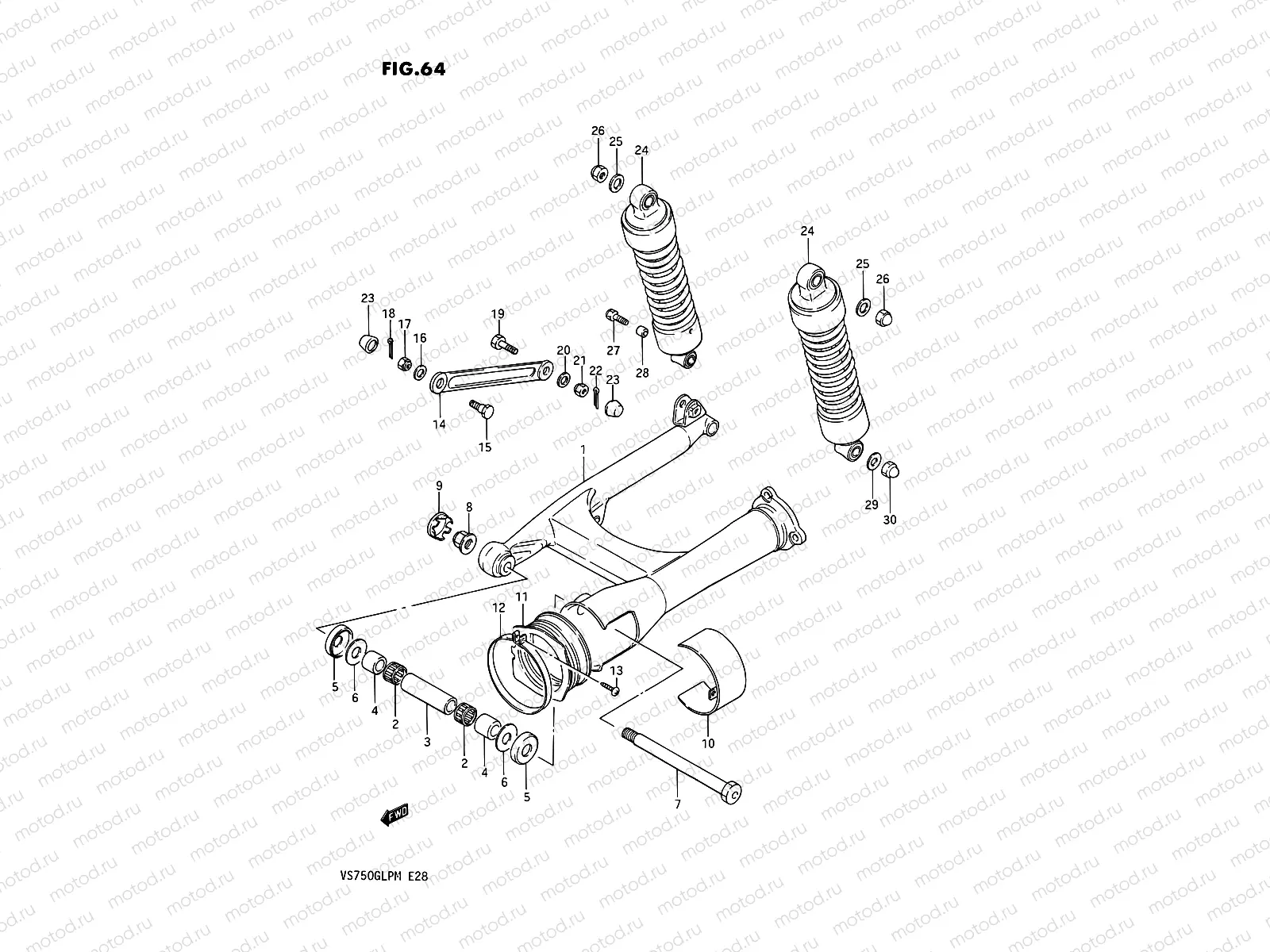

64 - REAR SWINGING ARM (VS750GLF/GLFG/GLPG ~F.NO.100109)

64 - REAR SWINGING ARM (VS750GLF/GLFG/GLPG ~F.NO.100109)

Например: 61100-38A02-019

1

61100-38A02-019

Swinging arm, rear (black)

1

61100-38A02-24D

Swinging arm, rear (maroon)

2

09263-22022

BEARING(22X29X20)

2 988 ₽/шт

3

61282-38E01

SPACER,RR SWGARM PIVOT

1 290 ₽/шт

4

61251-32400

SPACER,RR SWGARM PIVOT

1 067 ₽/шт

5

61262-45002

CVR,RR SWGARM DUST SEAL(OD:40)

544 ₽/шт

6

08211-14341

Шайба

1 720 ₽/шт

7

61211-38A00

Shaft,rr swgarm

8

08319-3114A

Гайка

646 ₽/шт

9

61222-38A01

CAP,RR SWINGING ARM PIVOT,R

824 ₽/шт

10

61232-38A00-13L

COVER,SWGARM PIVOT,L

2 913 ₽/шт

11

61372-38A00

BOOT,PROPELLER SHAFT

4 080 ₽/шт

12

09402-92306-XC0

LAMP

258 ₽/шт

13

03211-0425B

Болт

82 ₽/шт

14

64310-38A02-019

Torque link, rear (black)

15

09111-10010

Bolt

16

09160-10121

Шайба

1 250 ₽/шт

17

09159-10059

Гайка

1 720 ₽/шт

18

04111-1620A

PIN

740 ₽/шт

19

09101-10019

Bolt,ctr stand

20

09160-10121

Шайба

1 250 ₽/шт

21

09159-10059

Гайка

1 720 ₽/шт

22

04111-1620A

PIN

740 ₽/шт

23

09251-13002

Крышка

4 380 ₽/шт

24

62100-38A53

BSORBER ASSY,RR SHOCK

37 927 ₽/шт

25

09160-10093

Шайба

144 ₽/шт

26

08313-10107

Гайка

1 520 ₽/шт

27

09104-10002

BOLT(10X36)

2 780 ₽/шт

28

09180-10139

SPACER(10.2X14X20.7)

3 010 ₽/шт

29

09160-10093

Шайба

144 ₽/шт

30

08313-10107

Гайка

1 520 ₽/шт
