Главная Каталог товаров SUZUKI EPC 700 cm³ - 1099 cm³ SUZUKI VS 750 GL Intruder SUZUKI VS750GL F Intruder (E03,E28,E33) SUZUKI 43 - PILLION RIDER HANDLE

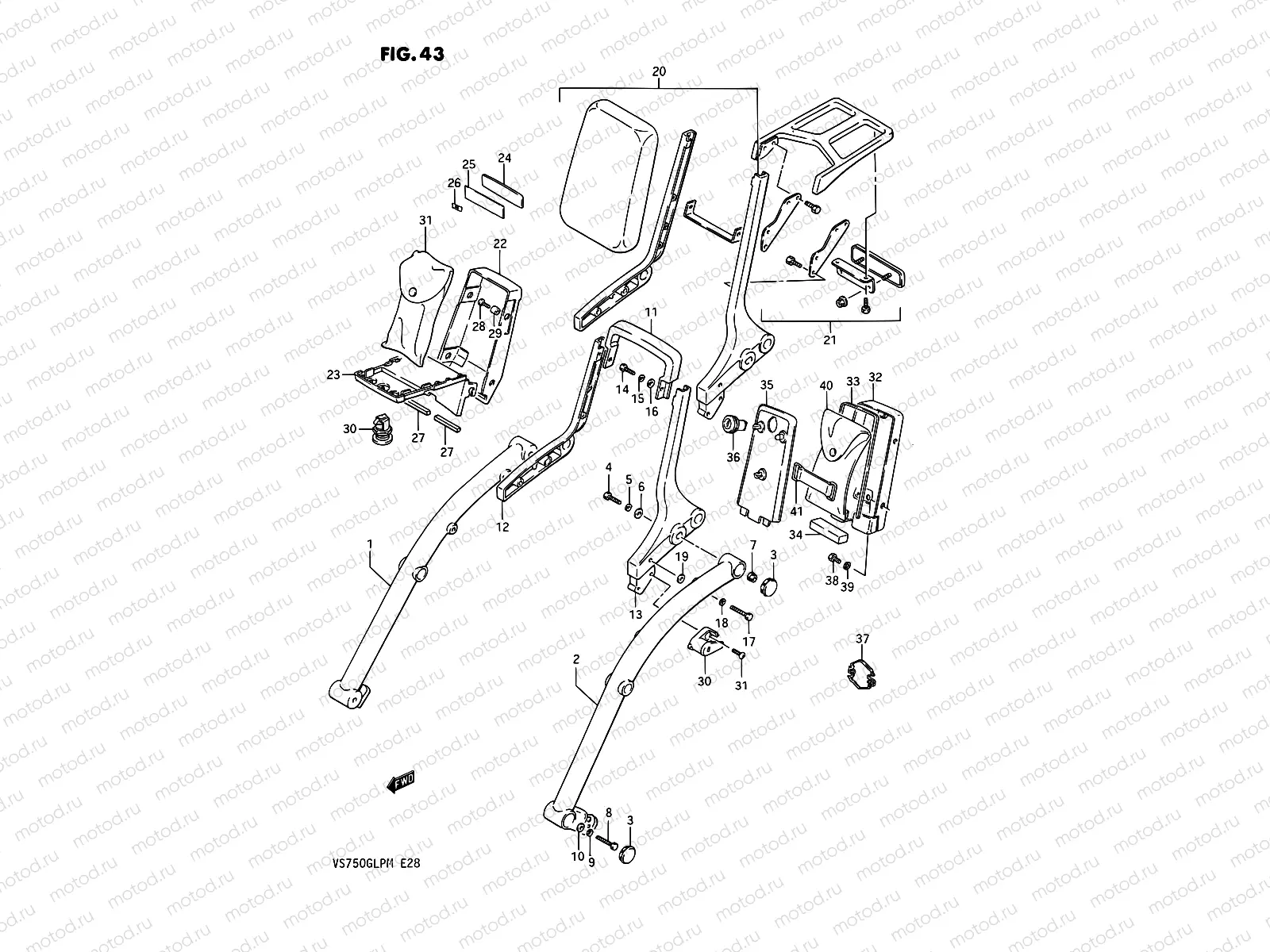

43 - PILLION RIDER HANDLE

43 - PILLION RIDER HANDLE

Например: 41610-38A20

1

41610-38A20

GRIP,FRAME HANDLE RH

27 957 ₽/шт

2

41620-38A20

GRIP,FRAME HANDLE LH

27 957 ₽/шт

3

95672-24A00

CAP,FRAME HANDLE GRIP

275 ₽/шт

4

01500-08207

Болт

85 ₽/шт

5

08321-01087

Пластина замка

81 ₽/шт

6

08322-01087

Шайба

81 ₽/шт

7

08316-1008B

Гайка

81 ₽/шт

8

01550-0850A

Болт

1 840 ₽/шт

9

08321-0108B

Пластина замка

81 ₽/шт

9

09162-08008

Шайба, стопорная

85 ₽/шт

10

08322-0108A

Шайба

85 ₽/шт

11

46211-38A01

Handle

12

46212-38A00

Handle, pillion rider rh

13

46213-38A00

Handle, pillion rider lh

14

01500-0616B

Болт

1 330 ₽/шт

15

08321-01067

Шайба, стопорная

81 ₽/шт

16

08322-0106A

Шайба

81 ₽/шт

17

01500-0635B

Болт

81 ₽/шт

18

08321-0106A

Шайба

81 ₽/шт

19

08322-0106A

Шайба

81 ₽/шт

20

46200-38811

Handle set, pillion rider

21

46310-38A10

Carrier assy, sports

22

47430-38A01

Holder tool

23

47440-38A01

HOLDER,TOOL FR

1 013 ₽/шт

27

47451-38A00

Cushion, tool holder

28

02142-0512A

Болт

85 ₽/шт

29

09180-05046

Прокладка 5.5X8X4

1 410 ₽/шт

30

95700-24831

LOCK SET,TOOL HOLDER

5 005 ₽/шт

31

09800-21011

Tool assy

42

95700-38821

LOCK SET,HELMET

3 499 ₽/шт

43

02112-05127

Болт

81 ₽/шт
