Главная Каталог товаров SUZUKI EPC 1099 cm³ < SUZUKI VZR 1800 Intruder M1800R / Boulevard M109R SUZUKI VZR1800 L2 Intruder M1800R / Boulevard M109R (E03,E28,E33) SUZUKI 62 - WIRING HARNESS (VZR1800L2 E33)

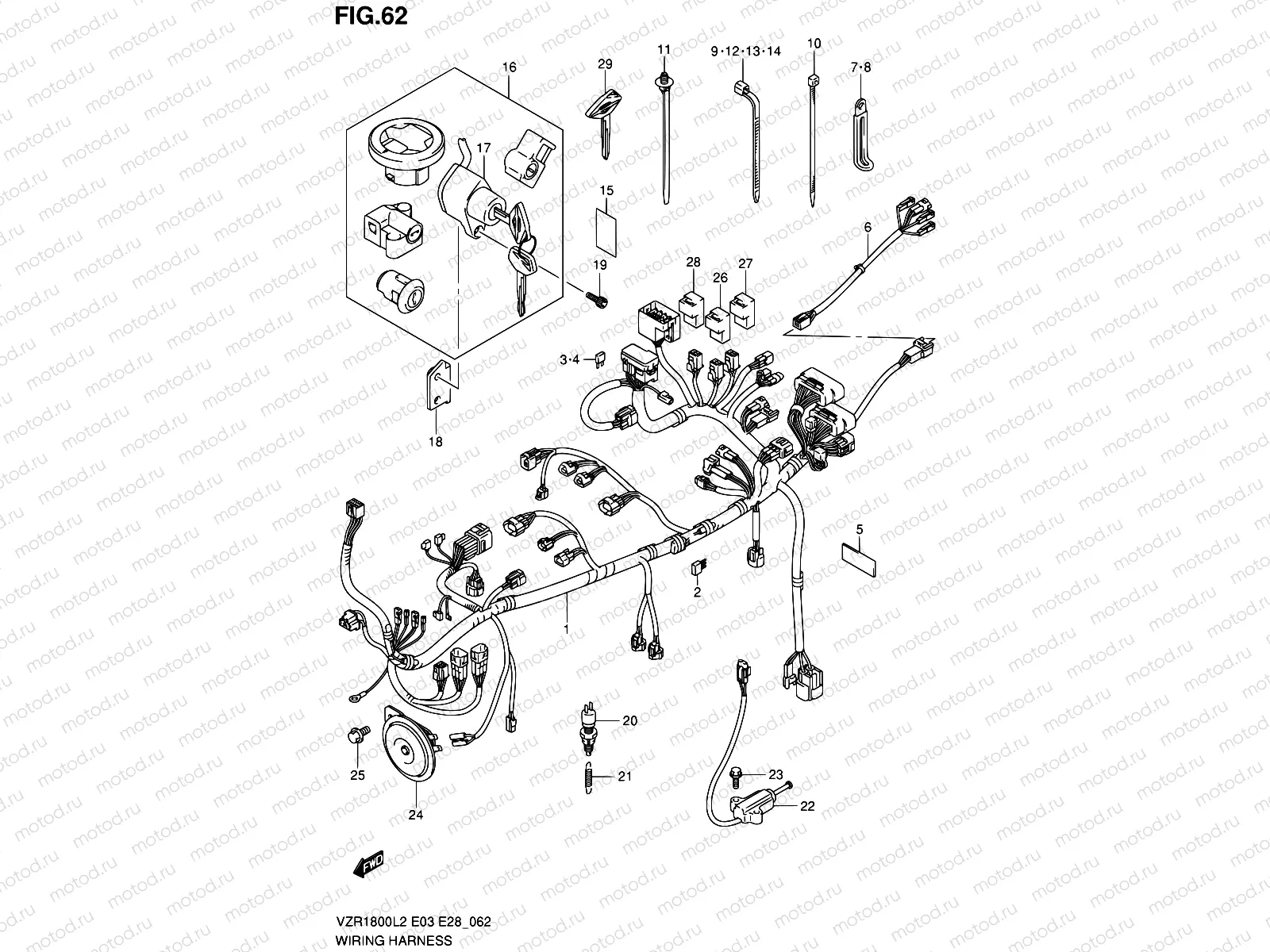

62 - WIRING HARNESS (VZR1800L2 E33)

62 - WIRING HARNESS (VZR1800L2 E33)

Например: 36610-48GB1

1

36610-48GB1

HARNESS,WIRING

96 492 ₽/шт

2

36611-38A10

DIODE

1 024 ₽/шт

3

09481-10504

Ограничитель,10A

1 250 ₽/шт

4

09481-15501-LCP

Fusible (10A)

5

33652-48G00

PROTECTOR,WIRING HARNESS

152 ₽/шт

6

36858-48G01

Wire,rr comb

7

09404-06039

Clamp(L:65)

194 ₽/шт

8

09404-06039

Clamp(L:65)

194 ₽/шт

9

09407-14403

КЛЕММА

221 ₽/шт

10

09407-14407

ЗАЖИМ

221 ₽/шт

11

09407-17403

CLAMP ,L:154

306 ₽/шт

12

09407-18402

Струбцина (L:165)

211 ₽/шт

13

09407-22403

CLAMP(L:220)

1 370 ₽/шт

14

09407-25401

Хомут

221 ₽/шт

15

36611-16G00

TAPE,WIRING HARNESS(28X50X0.13

152 ₽/шт

16

37100-48850

Lock set

17

37110-48G50

SWITCH ASSY,IGNITION

11 026 ₽/шт

18

37119-48G00

BRACKET,IGNITION SWITCH

374 ₽/шт

19

07130-0616B

БОЛТ

97 ₽/шт

20

37740-45D00

SWITCH ASSY,STOP LAMP

1 224 ₽/шт

21

09443-06077

Пружина

2 740 ₽/шт

22

37840-25D01

Switch Assy,side Stand

5 904 ₽/шт

23

01550-0625A

Болт

102 ₽/шт

24

38500-48G01

Звуковой сигнал

4 457 ₽/шт

25

01550-0812B

Болт

97 ₽/шт

26

38740-24X50

RELAY ASSY, HEAD LAMP

2 665 ₽/шт

27

38740-24X50

RELAY ASSY, HEAD LAMP

2 665 ₽/шт

28

38740-24A00

RELAY ASSY

3 167 ₽/шт

29

37146-10F00

ЗАГОТОВКА КЛЮЧА(BOULEVARD)

5 733 ₽/шт
