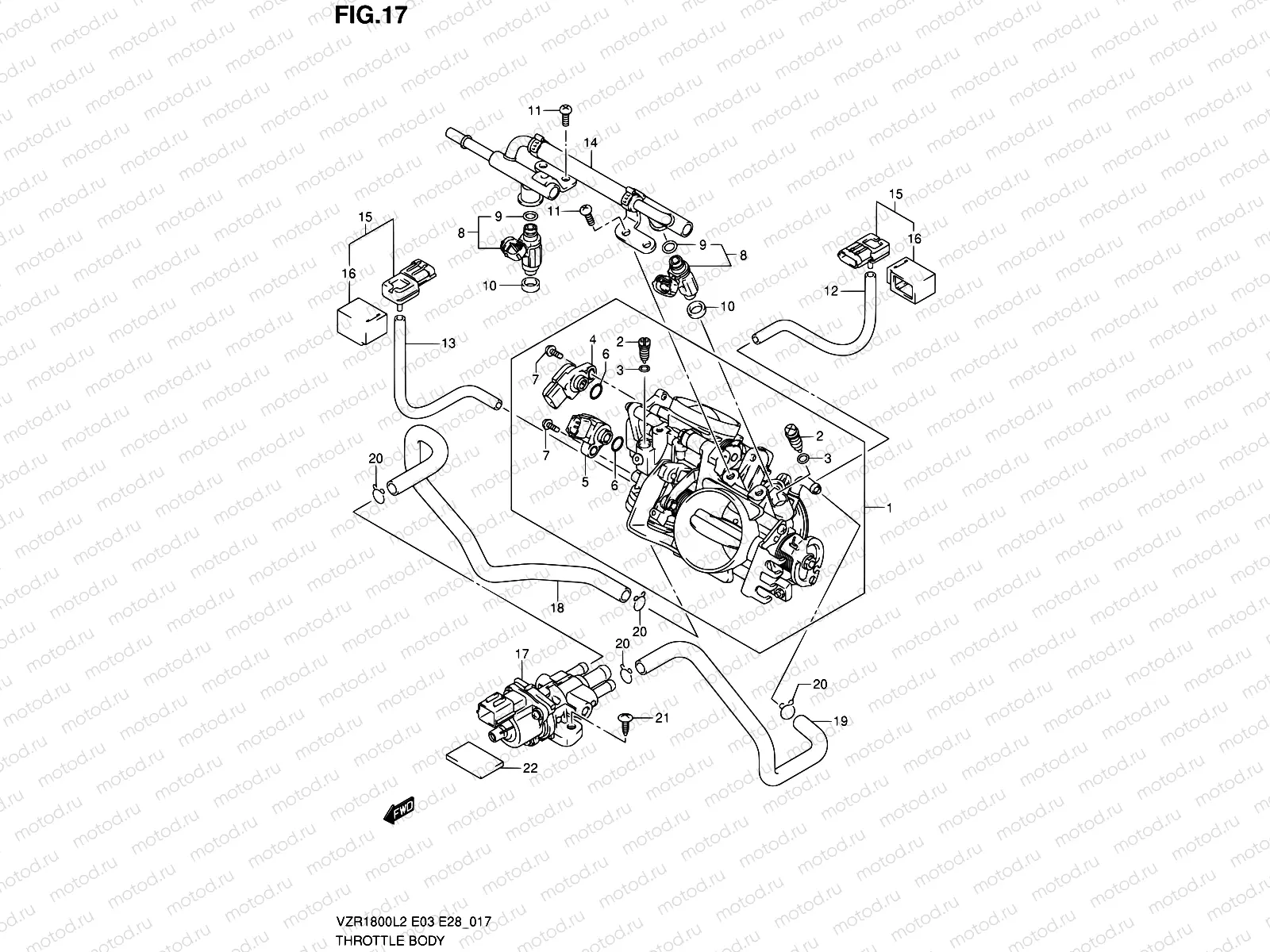

17 - THROTTLE BODY (VZR1800ZL2 E28)

17 - THROTTLE BODY (VZR1800ZL2 E28)

Например: 13405-48G21

1

13405-48G21

Body assy,throt

2

13269-48G00

Регулятор

469 ₽/шт

3

13521-29FA0

O RING

188 ₽/шт

4

13580-29G00

Датчик

7 348 ₽/шт

5

13580-48G00

Датчик

10 285 ₽/шт

6

13575-29G00

O-Ring

7

13605-02F00

Болт

170 ₽/шт

8

15710-48G00

INJECTOR ASSY

13 808 ₽/шт

9

15717-58B00

Кольцо уплотнительное

581 ₽/шт

10

15722-29G00

САЛЬНИК

459 ₽/шт

11

13602-06148

Болт

180 ₽/шт

12

13683-48G01

Hose

13

13683-48G11

Hose

2 151 ₽/шт

14

15730-48G01

PIPE ASSY,DELIVERY

18 533 ₽/шт

15

15630-29G10

Сенсор прессуры

14 623 ₽/шт

16

15625-29G00

COVER

680 ₽/шт

17

18117-48G00

VALVE,ISC

20 919 ₽/шт

18

13697-48G01

Hose,isc valve,

19

13698-48G01

Hose,isc Valve,l

954 ₽/шт

20

09401-13102-A05

Clip

274 ₽/шт

21

03111-0625A

Болт

82 ₽/шт

22

44612-13600

CUSHION,FUEL TANK NO.2

170 ₽/шт
