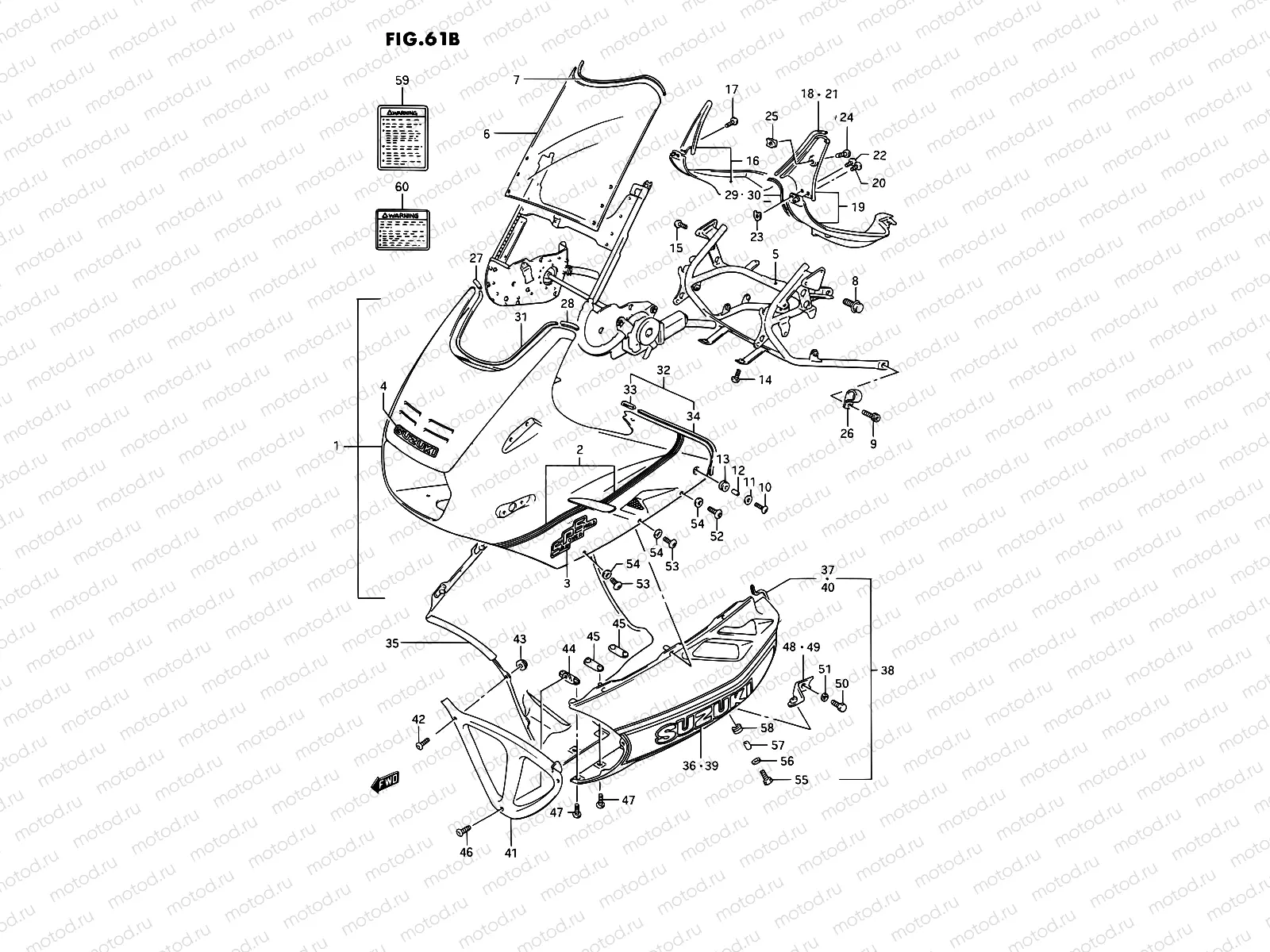

61B - COWLING (MODEL L 3BF)

61B - COWLING (MODEL L 3BF)

Например: 94400-48C31-3BF

1

94400-48C31-3BF

ody,cowling

2

68275-48B20-3ZD

.tape, rh

2

68285-48B20-3ZD

.tape, lh

3

68181-48B01-A36

.emblem (sps)

4

68166-04700-742

Emblem

5

94510-48B21

race comp,cowl

6

94611-48B40

Windscreen

7

94631-48B10

Molding

8

09103-10190-XC0

Vis

9

07130-0816A

БОЛТ

113 ₽/шт

10

09139-06028

SCREW(6X20)

194 ₽/шт

11

09160-06056

WASHER(6.5X18X1)

82 ₽/шт

12

09180-06262

Кольцо/шайба

162 ₽/шт

13

09320-09016

РЕЗИНКА

162 ₽/шт

14

09139-06030

Винт (6X16)

194 ₽/шт

15

02142-06127

Винт 6X12

81 ₽/шт

16

94700-48B10-291

PANEL ASSY,R

16 969 ₽/шт

17

02142-0508A

SCREW

85 ₽/шт

18

94635-19C00

MOLDING

918 ₽/шт

19

94800-48B10-291

Panel

20

02142-0508A

SCREW

85 ₽/шт

21

94635-19C00

MOLDING

918 ₽/шт

22

02142-0512A

Болт

85 ₽/шт

23

09148-05020

Гайка

97 ₽/шт

24

03241-M0512-A

Vis

25

09148-05020

Гайка

97 ₽/шт

26

09403-18410

Collier

27

94426-48B10

CAP,PANEL & COWLING,R

375 ₽/шт

28

94427-48B10

CAP,PANEL & COWLING,L

375 ₽/шт

29

94591-48B10

Molding.cowl.p.

30

94592-48B10

Molding, panel lh

31

94635-19C00

MOLDING

918 ₽/шт

32

94439-48B00

MOLDING,COWLING BODY SIDE

1 263 ₽/шт

33

94651-48B00

.cover

34

94479-48B00

MOLDING,COWLING BODY SIDE

942 ₽/шт

35

94470-48B00

COVER COMP,COWL LOWER,R

36

68685-48B60-3ZE

.tape, rh

37

94479-48B00

MOLDING,COWLING BODY SIDE

942 ₽/шт

38

97700-48C80-3BF

over assy

39

68695-48B60-3ZE

.tape, lh

40

94479-48B00

MOLDING,COWLING BODY SIDE

942 ₽/шт

41

94475-48B02

Cover,cowling

42

09139-05025

БОЛТ НЕ КОЛЕСНЫЙ, МЕТАЛЛ

162 ₽/шт

43

08316-2005A

Гайка

85 ₽/шт

44

94490-06B00

Plate,lower

45

94493-06B00

race comp,cowl

46

09139-06027

Винт (6х12)

194 ₽/шт

47

09139-06039

SCREW(6X16)

1 410 ₽/шт

48

94580-48B11

race,cowllower

49

94590-48B11

race,lower,l.

50

01500-08127

Болт

81 ₽/шт

51

08321-01087

Пластина замка

81 ₽/шт

52

09139-06028

SCREW(6X20)

194 ₽/шт

53

09139-06030

Винт (6X16)

194 ₽/шт

54

09161-07006

Шайба

307 ₽/шт

55

09139-06028

SCREW(6X20)

194 ₽/шт

56

09160-06056

WASHER(6.5X18X1)

82 ₽/шт

57

09180-06121

SPACER(6.4X9.2X12)

1 330 ₽/шт

58

09320-09016

РЕЗИНКА

162 ₽/шт

59

68922-14F31

Label,screen

567 ₽/шт

59

68922-14F01

Label,screen

771 ₽/шт

60

68319-33E02

Label,general Warning

1 155 ₽/шт

60

68319-33E32

Label,general w

60

68319-40C40

Label, warning

60

68319-33E52

Label,general w
