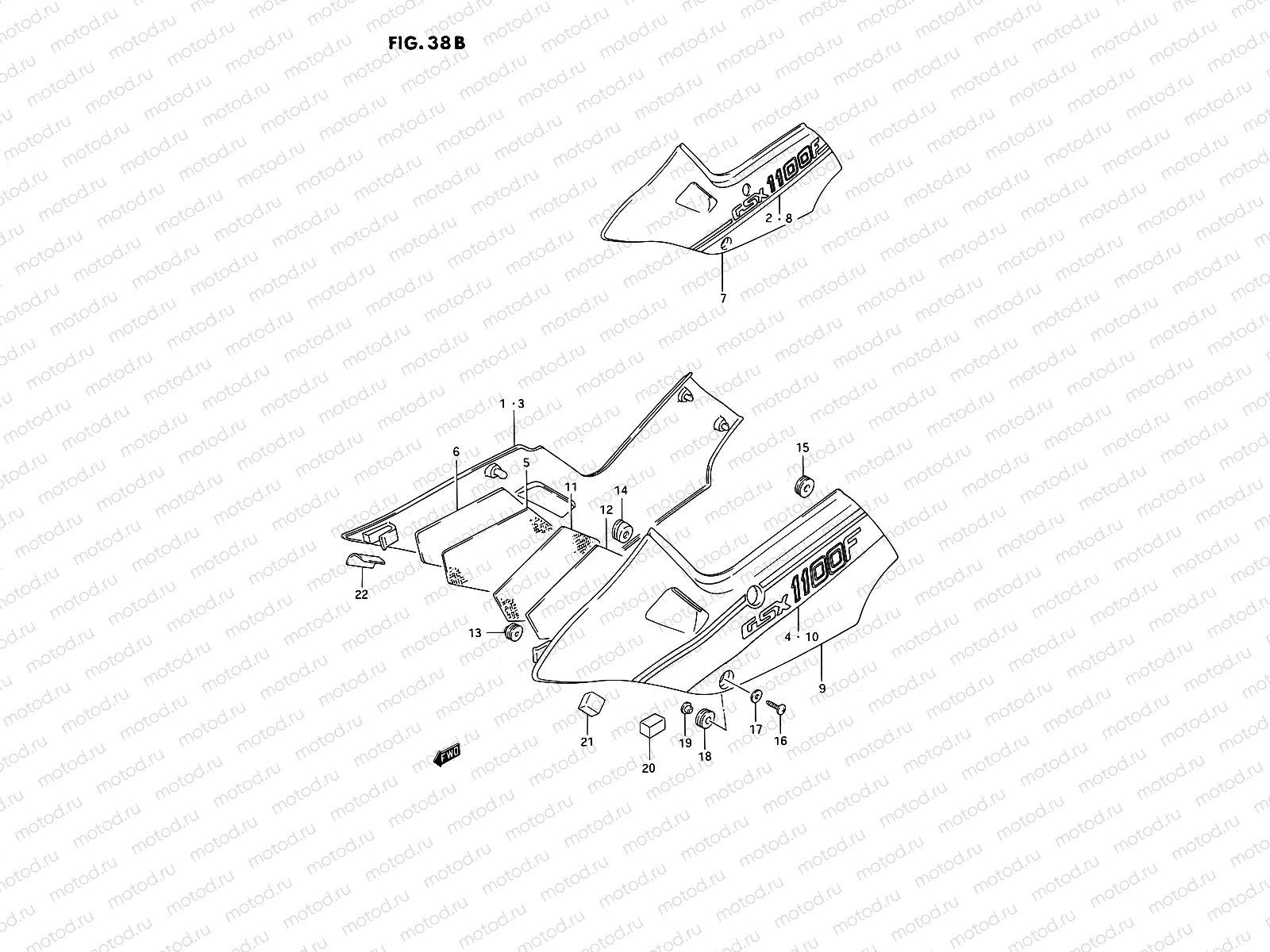

38B - FRAME COVER (MODEL L)

38B - FRAME COVER (MODEL L)
Например: 47111-48B21
1
47111-48B21
2
68135-48B60-3TL
.tape, frame cover rh
3
47111-48B21
4
68135-48B70-3ZE
.tape, frame cover rh
5
47166-48B01
Heat shield, rh
6
47169-48B01
alancer sheet, rh
7
47211-48B21
Frame cover
8
68145-48B60-3TL
.tape, frame cover lh
9
47211-48B21
Frame cover
10
68145-48B70-3ZE
.tape, frame cover lh
11
47266-48B00
Heat shield, lh
12
47269-48B00
alancer sheet, lh
13
47162-48B10
Cushion
14
47163-48B10
CUSHION,COVER FRAME FR NO.2
270 ₽/шт
15
09320-08527
Cushion
1 640 ₽/шт
16
09125-06079
Vis
17
09160-06084
Шайба 6.5X18X1
81 ₽/шт
18
47161-48B10
Damper (rear)
19
09169-06058
Rondelle
20
47165-48B11
CUSHION
250 ₽/шт
21
56314-48B10
CUSHION
210 ₽/шт
22
47261-48B00
PROTECTOR,FRAME COVER FR
512 ₽/шт
