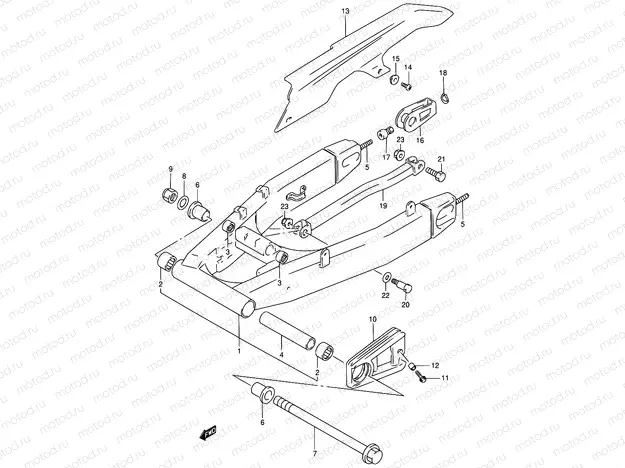

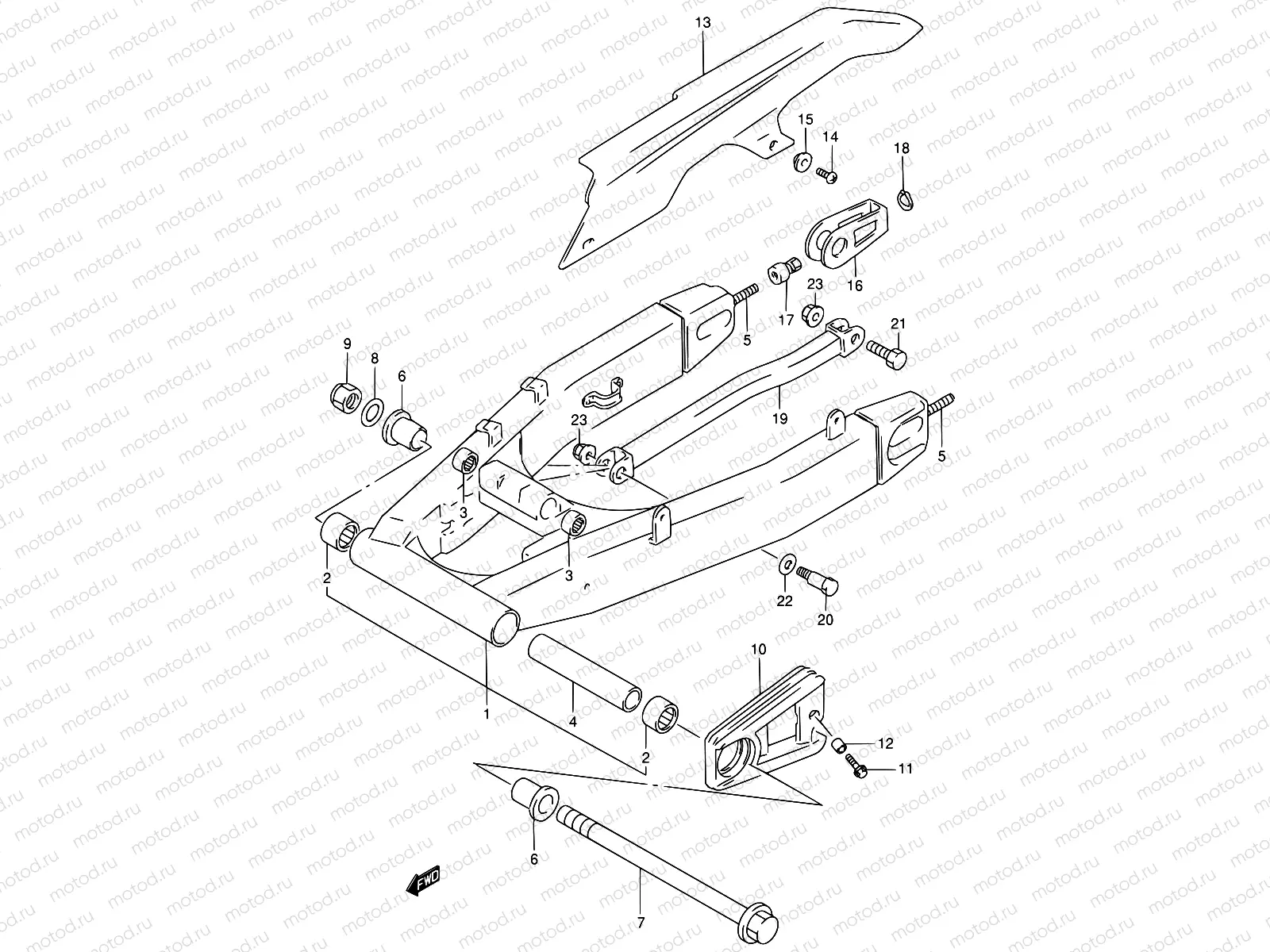

57A - REAR SWINGING ARM (MODEL T/V/W)

57A - REAR SWINGING ARM (MODEL T/V/W)

Например: 61000-31E10

1

61000-31E10

Swingingarm,rr.

2

09263-25073

BEARING(25X33X35)

2 100 ₽/шт

3

09263-17053

Подшипник

1 147 ₽/шт

4

61282-31E00

SPACER,RR SWGARM PIVOT CTR

1 951 ₽/шт

5

09108-08261

Болт

4 540 ₽/шт

6

61251-31E00

SPACER,PIVOT BEARING

872 ₽/шт

7

61211-31E00

SHAFT,RR SWINGINGARM PIVOT

6 686 ₽/шт

8

09160-18030

Шайба

115 ₽/шт

9

09159-18007

Гайка

10 240 ₽/шт

10

61273-17E51

Guard chain sliding shoe

11

09116-06152

BOLT(6X20)

146 ₽/шт

12

09180-06283

Кольцо/шайба

162 ₽/шт

13

61310-45D12

Case, chain

14

02142-0612B

Винт

81 ₽/шт

15

09169-06026

Пластина замка

119 ₽/шт

16

61411-40C00

ADJUSTER,CHAIN

1 777 ₽/шт

17

61415-22D00

NUT,CHAIN ADJUSTER

1 756 ₽/шт

18

08331-3113A

КЛИПС

102 ₽/шт

19

64310-27E00-019

TORQUELINK,RR

4 184 ₽/шт

20

09111-10051

BOLT(10X39)

4 380 ₽/шт

21

09100-10187

BOLT(10X34)

2 270 ₽/шт

22

09160-12011

Уплотнение

97 ₽/шт

23

08319-31107

Гайка

210 ₽/шт
