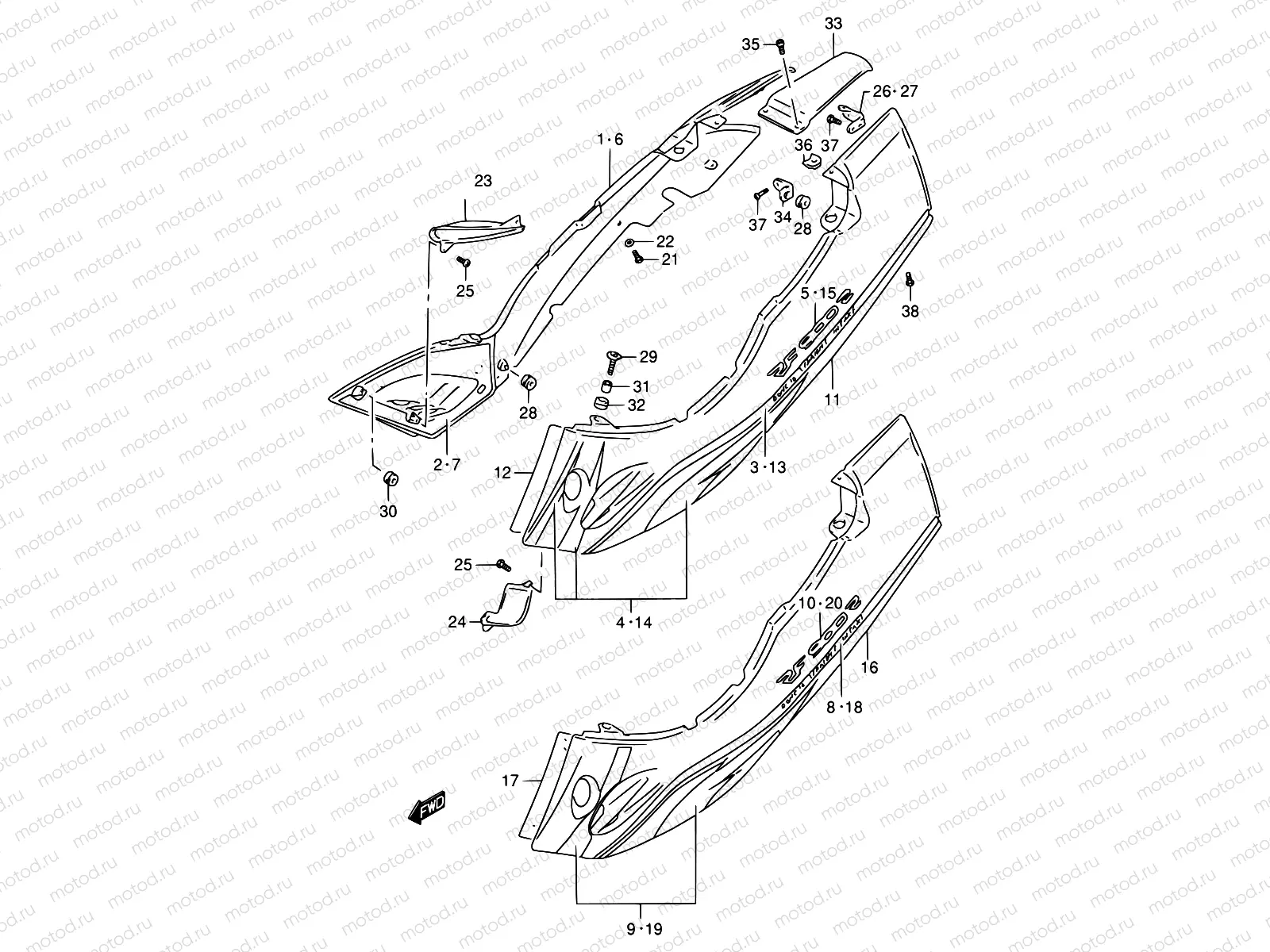

39A - FRAME COVER (MODEL T/V)

39A - FRAME COVER (MODEL T/V)

Например: 47100-31E30-019

6

47100-31E30-019

COVER ASSY,FRAME,R

6

47100-31E30-3DX

COVER ASSY,FRAME,R

7

47117-31E00

.shield, heat rh

8

68130-31E00-F3H

.tape set, striping rh

9

68130-31E30-G4Y

.tape set, rh

9

68130-31E30-G4Z

.tape set, rh

10

68131-31E00-G5A

.emblem

10

68131-31E00-G5B

.emblem

16

47200-31E30-019

Cover assy,fram

16

47200-31E30-3DX

COVER ASSY,FRAME,L

17

47217-31E00

Shield,frm heat

18

68140-31E00-F3H

Tape set,stripe

19

68140-31E30-G4Y

TAPE SET,FRAME COVER,L

4 379 ₽/шт

19

68140-31E30-G4Z

TAPE SET,FRAME COVER,L

4 379 ₽/шт

20

68131-31E00-G5A

.emblem

20

68131-31E00-G5B

.emblem

21

02142-0512A

Болт

85 ₽/шт

22

09161-05017-LCP

Rondelle

23

47511-31E00

Cover,inner,r.

24

47611-31E00

Cover,inner,l.

25

03541-1412A

Болт

1 210 ₽/шт

26

47191-21E00

Bracket,frmc.,r

27

47192-21E00

Bracket,frmc.,l

28

09320-08527

Cushion

1 640 ₽/шт

29

09116-06131

BOLT(6X25)

1 210 ₽/шт

30

47161-21E01

Damper

31

09180-06265

Кольцо/шайба

211 ₽/шт

32

09320-08525

Cushion

3 210 ₽/шт

33

47311-31E00-019

Cover,frame ctr

34

47193-21E00

Bracket,rr lamp

35

02142-0512A

Болт

85 ₽/шт

36

09148-05013

Гайка

97 ₽/шт

37

03541-1412A

Болт

1 210 ₽/шт

38

03241-1516A

ШАЙБА

82 ₽/шт
