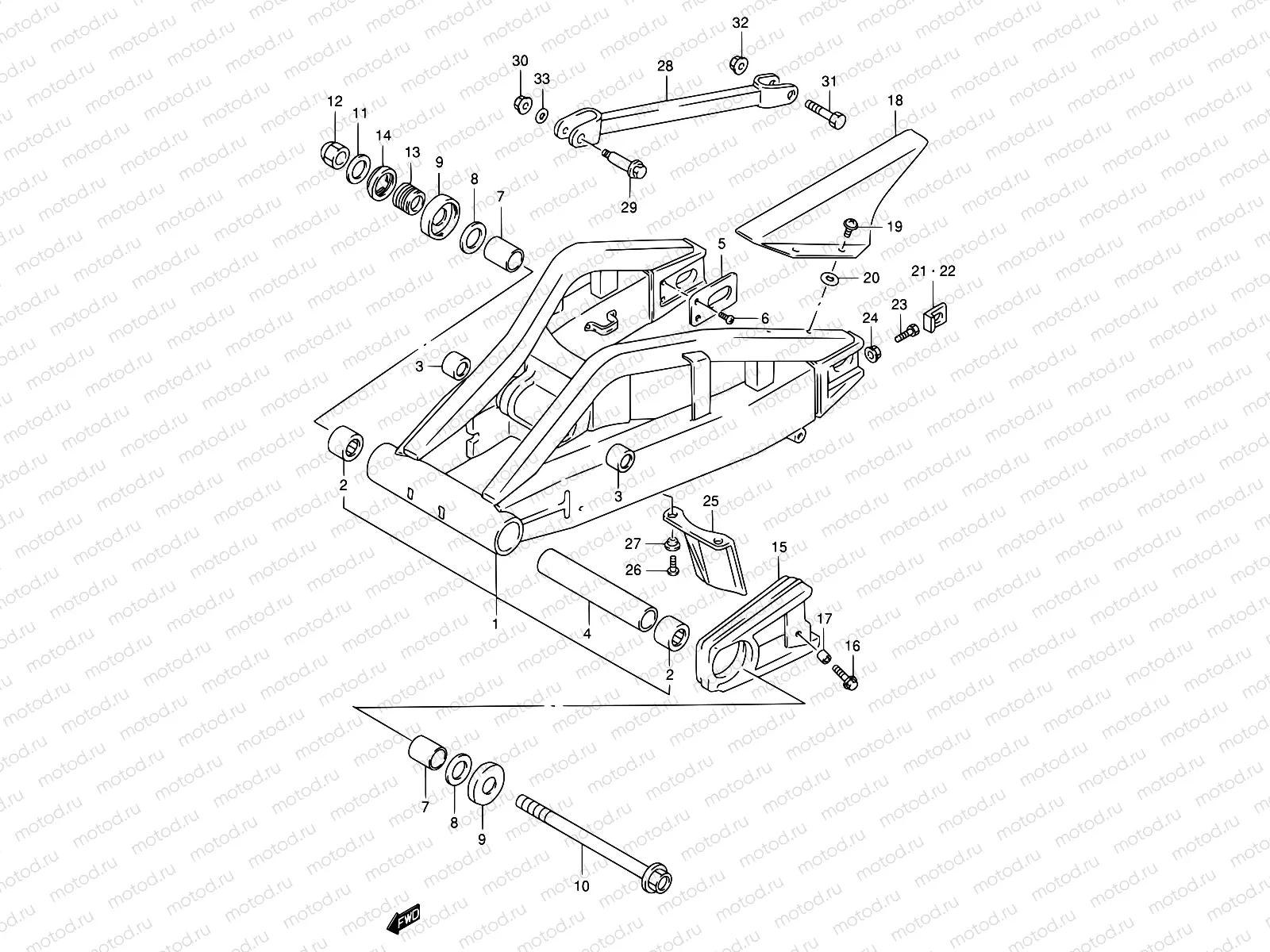

57A - REAR SWINGING ARM (MODEL S/T/V/W)

57A - REAR SWINGING ARM (MODEL S/T/V/W)
Например: 61000-46E10
1
61000-46E10
Swinging arm assy, rear
2
09263-30040
Подшипник (30x40x25)
2 180 ₽/шт
3
09263-17058
Bearing
1 098 ₽/шт
4
09180-25099-XC0
Spacer,25.4x31.
5
61124-17E10
PLATE,RR SWING ARM BRKT
791 ₽/шт
6
02142-0610B
Винт держатель
85 ₽/шт
7
61251-17E20
SPACER, RR PIVOT BEARING
1 197 ₽/шт
8
08211-25481
Шайба упорная
3 480 ₽/шт
9
61262-17E11
Seal,dust
692 ₽/шт
10
61211-17E10
Shaft, pivot
11
09160-25070
Шайба
242 ₽/шт
12
09159-25003
Гайка
2 665 ₽/шт
13
61213-17E1V
14
61214-17E1V
NUT,RR SWGARM PIVOT BOLT
3 069 ₽/шт
15
61273-17E11
Guard chain sliding shoe
16
09116-06152
BOLT(6X20)
146 ₽/шт
17
09180-06283
Кольцо/шайба
162 ₽/шт
18
61311-17E10
Case ,chain
19
09136-06022
Болт
1 720 ₽/шт
20
09160-06084
Шайба 6.5X18X1
81 ₽/шт
21
61446-17E11
WASHER,CHAIN ADJUSTER,L
2 502 ₽/шт
22
61446-27C21
WASHER,CHAIN ADJUSTER,L
2 502 ₽/шт
23
09100-08287
BOLT(8X50)
162 ₽/шт
24
08316-1008B
Гайка
81 ₽/шт
25
63411-C42A0-0J000
Mud guard, rear unit
413 ₽/шт
26
02142-0616A
Болт
81 ₽/шт
27
09169-06010
WASHER
211 ₽/шт
28
64310-46E00
TORQUELINK,RR
7 859 ₽/шт
29
09111-08058
Bolt, front (8x44)
30
08319-31087
Гайка
178 ₽/шт
31
09103-10019
BOLT(10X37)
1 520 ₽/шт
32
08319-31107
Гайка
210 ₽/шт
33
08321-0112A
Пружинная шайба
81 ₽/шт
