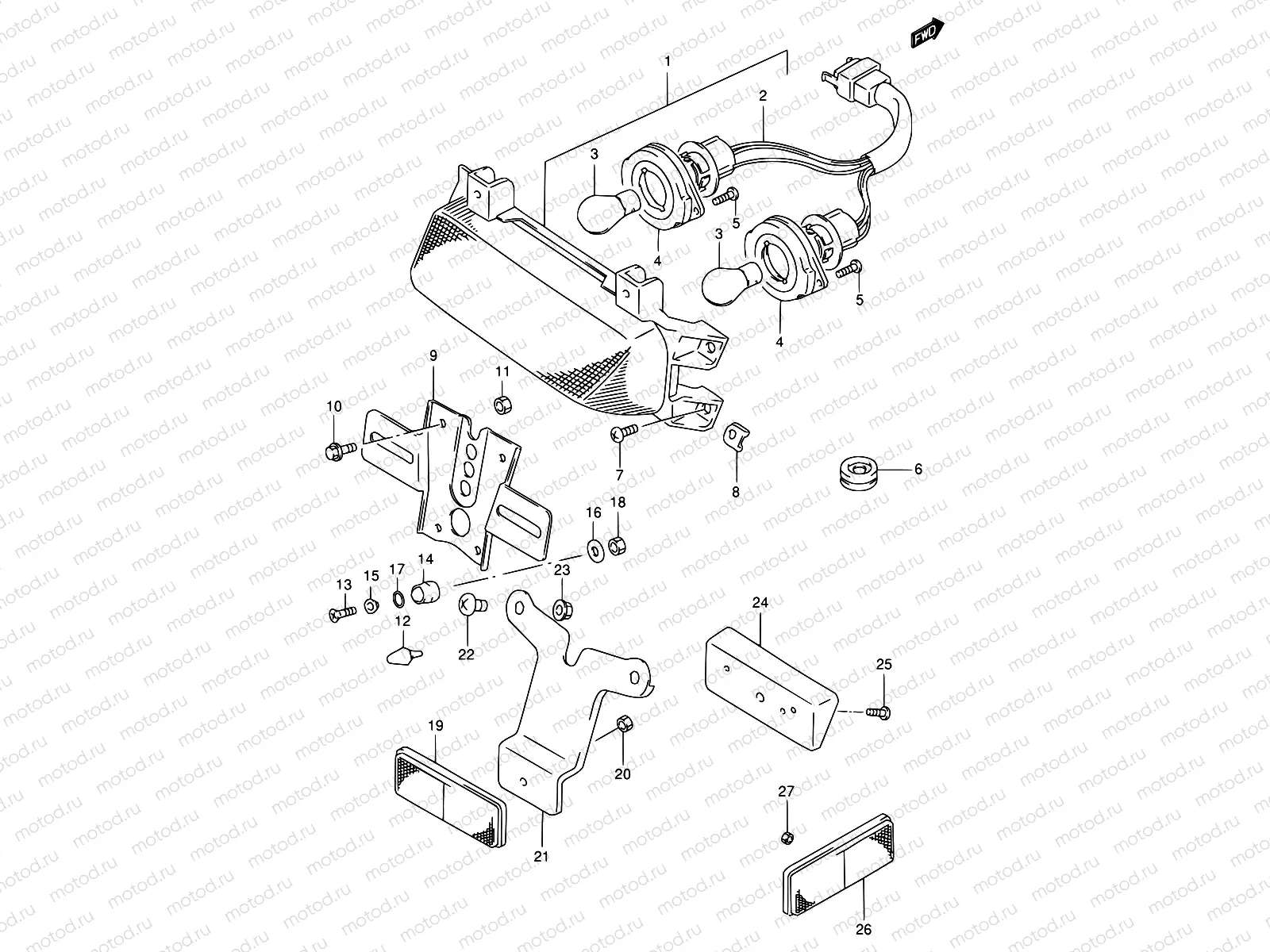

30B - TAIL LAMP (MODEL T/V/W)

30B - TAIL LAMP (MODEL T/V/W)
Например: 35710-17E00
1
35710-17E00
LAMP ASSY REAR COMB
2
35718-17E00
Socket & cord
3
40503-00838-069
P21/5w,5w, bay1 (12V 21/5W BAY15d)
4
35765-48B21
CUSHION
860 ₽/шт
5
03211-0412A
Болт
1 060 ₽/шт
6
09308-07013
Damper
7
02142-0512A
Болт
85 ₽/шт
8
09148-05013
Гайка
97 ₽/шт
9
35927-46E00
BRACKET,LICENSE PLATE
1 157 ₽/шт
10
02142-0612B
Винт
81 ₽/шт
11
08319-31067
Гайка
153 ₽/шт
12
09321-06038
Cushion
1 520 ₽/шт
12
09321-06026
САЙЛЕНТБЛОК
170 ₽/шт
13
02142-0620B
Болт
1 060 ₽/шт
14
09320-08058
Cushion, plate
15
09169-06071
Шайба
97 ₽/шт
16
09160-06084
Шайба 6.5X18X1
81 ₽/шт
17
09160-06052
Шайба
136 ₽/шт
18
08319-2106A
Гайка
114 ₽/шт
19
35970-24D60
REFLECTOR ASSY,RR
1 479 ₽/шт
20
08310-0005B
Гайка
1 370 ₽/шт
20
08316-1005B
Гайка
1 520 ₽/шт
21
35974-01D00
BRACKET,RR RR
352 ₽/шт
21
35974-18D10
Bracket,rear rr
22
02142-0612B
Винт
81 ₽/шт
23
08316-10067
Гайка
1 330 ₽/шт
24
35977-18D00
Spacer
25
03541-0412A
ШАЙБА
85 ₽/шт
26
35950-43431
REFLEX REFLECTOR,FR SIDE
1 343 ₽/шт
27
08310-0005B
Гайка
1 370 ₽/шт
