Главная Каталог товаров SUZUKI EPC 700 cm³ - 1099 cm³ SUZUKI GSX 750 SUZUKI GSX750E T SUZUKI 57 - FRAME COVER (MODEL T : 24L)

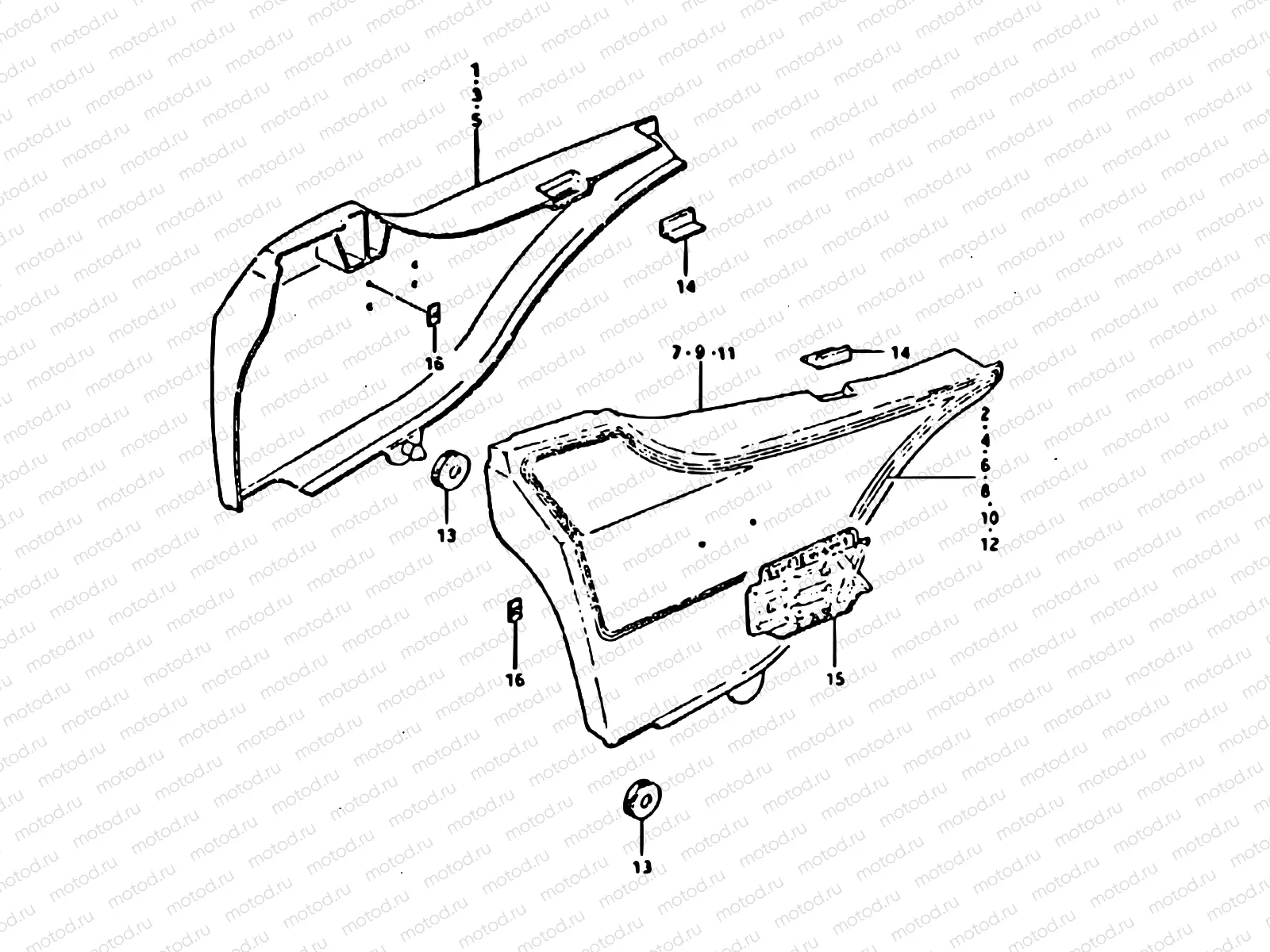

57 - FRAME COVER (MODEL T : 24L)

57 - FRAME COVER (MODEL T : 24L)

Например: 47111-49200-08E

1

47111-49200-08E

Cover, frame rh (black)

2

68136-45420-71P

Tape, rh

3

47111-49200-07P

Cover, frame rh (red)

4

68136-45420-60T

ape, rh

5

47111-49200

Cover,frame rh

6

68136-45420-65Y

Tape, rh

7

47211-49200

Cover,frame lh

8

68146-45420-71P

Tape, lh

9

47211-49200

Cover,frame lh

10

68146-45420-60T

ape, lh

11

47211-49200-04Y

Cover, frame lh (blue)

12

68146-45420-65Y

Tape, lh

13

09320-08527

Cushion

1 640 ₽/шт

14

47117-02400

CUSHION,FRAME COVER

170 ₽/шт

15

68131-45410

Emblem

16

09148-03002

NUT

129 ₽/шт
