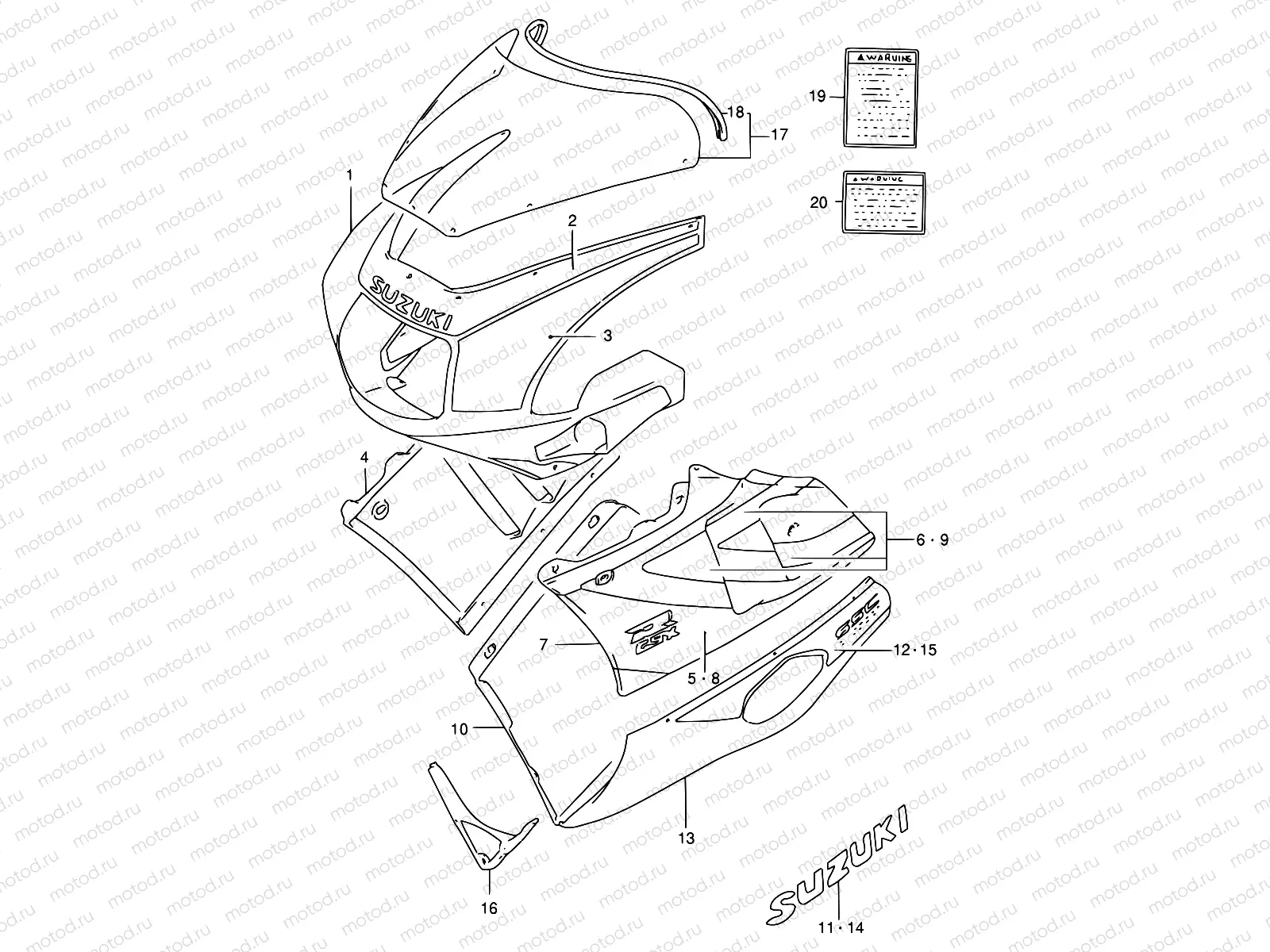

57 - COWLING BODY (MODEL M 3SL/8RY)

57 - COWLING BODY (MODEL M 3SL/8RY)

Например: 94400-33C60-3SL

1

94400-33C60-3SL

Body assy, cowling (white/blue)

1

94400-33C60-8RY

Body assy, cowling (black/red)

2

68275-33C10-3SH

.tape, upper

2

68275-33C10-H77

.tape, upper

3

68280-33C40-0NG

.tape set, upper (blue)

3

68280-33C40-28V

.tape set, upper (red)

4

94403-33C30-0JW

over assy, cowling side,rh (white)

4

94403-33C30-13Z

over assy, cowling side,rh (black)

5

68685-33C01-H04

.tape set, side rh

5

68685-33C01-H35

.tape set, side rh

6

68680-33C21-0NE

.tape set, side rh (blue)

6

68680-33C21-0FP

.tape set, side rh (silver)

7

94404-33C30-0JW

over assy, cowling side lh (white)

7

94404-33C30-13Z

over assy, cowling side lh (black)

8

68695-33C01-H04

.tape set, side lh

8

68695-33C01-H35

.tape set, side lh

9

68690-33C21-0NE

.tape set, side lh (blue)

9

68690-33C21-0FP

.tape set, side lh (silver)

10

94407-33C60-0JW

owling assy, under rh (white)

10

94407-33C60-13Z

owling assy, under rh (black)

11

68111-34320-0NE

mblem,suzuki

11

68111-34301-0FP

.emblem, "suzuki" (silver)

12

68185-33C10-3SL

.tape, under rh

12

68185-33C10-F75

.tape, under rh

13

94408-33C60-0JW

owling assy, under lh (white)

13

94408-33C60-13Z

owling assy, under lh (black)

14

68111-34320-0NE

mblem,suzuki

14

68111-34301-0FP

.emblem, "suzuki" (silver)

15

68195-33C10-3SL

.tape, under lh

15

68195-33C10-F75

.tape, under lh

16

94498-33C00-0JW

owling, under center (white)

16

94498-33C00-13Z

owling, under center (black)

17

94610-33C00

Screen set, window

18

94631-33C00

.moulding

19

68922-14F01

Label,screen

771 ₽/шт

20

68319-33E02

Label,general Warning

1 155 ₽/шт

21

68332-33C20

Label, tire air pressure
