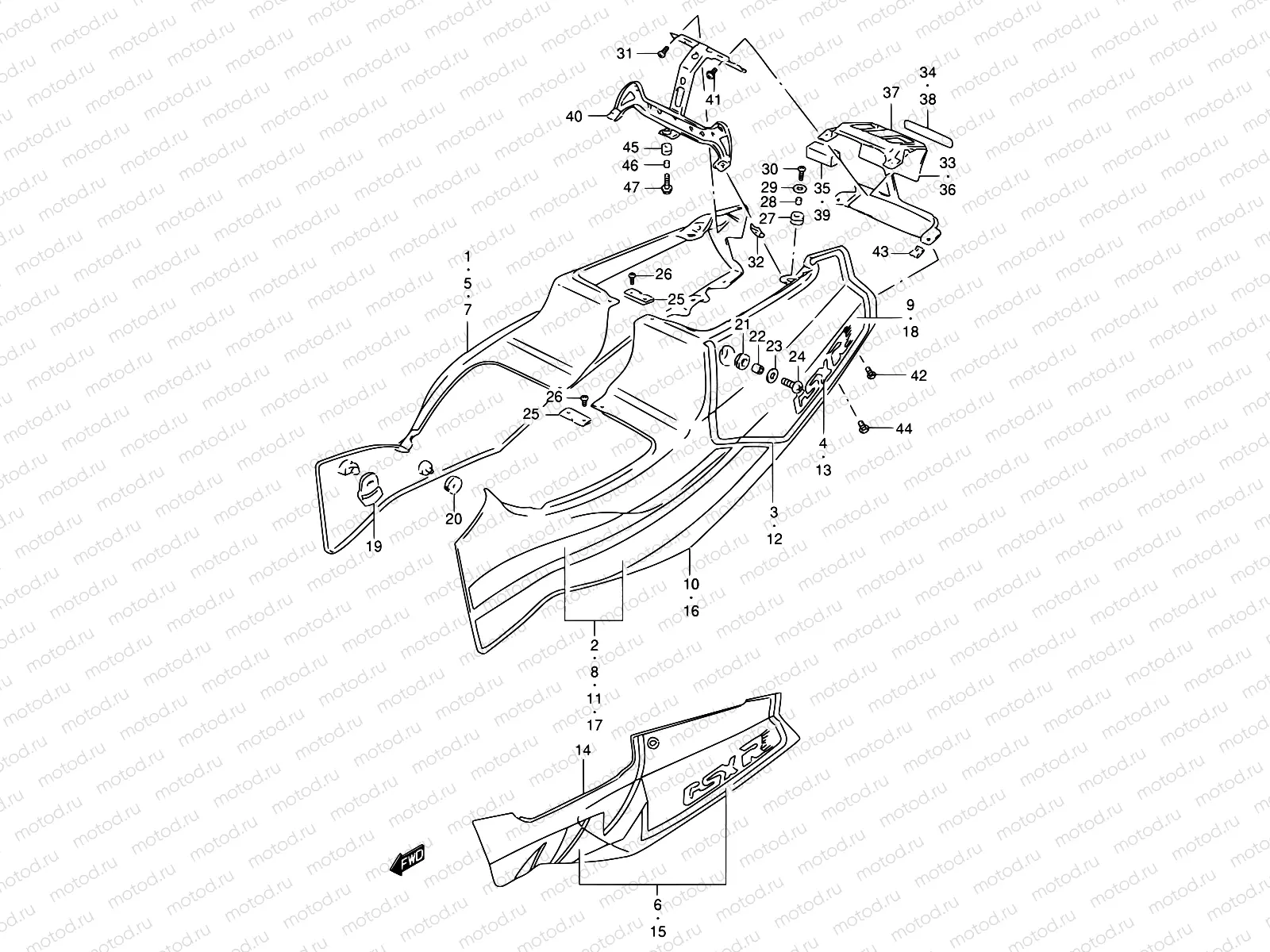

37A - FRAME COVER (MODEL M)

37A - FRAME COVER (MODEL M)

Например: 47110-33C40-0JW

1

47110-33C40-0JW

over, frame rh (white)

1

47110-33C40-13Z

over, frame rh (black)

2

68130-33C21-3SR

.tape set, rh

2

68130-33C21-F75

.tape set, rh

3

68135-33C20-0NE

.tape, rear rh (blue)

3

68135-33C20-0FP

.tape, rear rh (silver)

4

68131-33C20-3RZ

.emblem

4

68131-33C20-8RY

.emblem

5

47110-33C50-08E

over, frame rh (black)

6

68130-33C32-1GU

.tape set, rh

10

47210-33C40-0JW

over, frame lh (white)

10

47210-33C40-13Z

over, frame lh (black)

11

68140-33C21-3SR

.tape set, lh

11

68140-33C21-F75

.tape set, lh

12

68145-33C20-0NE

.tape, rear lh (blue)

12

68145-33C20-0FP

.tape, rear lh (silver)

13

68131-33C20-3RZ

.emblem

13

68131-33C20-8RY

.emblem

14

47210-33C50-08E

over, frame lh (black0

15

68140-33C32-1GU

.tape set, lh

19

47164-12C01

Damper

20

09320-08527

Cushion

1 640 ₽/шт

21

94433-26B01

Cushion

22

09180-06258

SPACER(6.5X9X6.7)

1 410 ₽/шт

23

09160-06054

Шайба

129 ₽/шт

24

09139-06050

Болт

187 ₽/шт

25

47168-12C00

Nut,cntr cover

26

09139-05021

Винт (5X12)

81 ₽/шт

27

94433-26B01

Cushion

28

09180-06258

SPACER(6.5X9X6.7)

1 410 ₽/шт

29

09160-06054

Шайба

129 ₽/шт

30

09139-06063

Винт

2 230 ₽/шт

31

03241-1512B

Болт

82 ₽/шт

32

09148-05019

Гайка

102 ₽/шт

33

47310-33C00-0JW

over, frame center (white)

33

47310-33C00-13Z

over, frame center (black)

34

68166-31310-0NE

MBLEM, SUZUKI

34

68166-31310-0FP

Emblem, suzuki

35

47191-22D00

RUBBER

282 ₽/шт

36

47310-33C00-08E

over, frame center (black)

37

68160-33C00-J52

.tape set

38

68166-31310-13L

Emblem,"suzuki"

375 ₽/шт

39

47191-22D00

RUBBER

282 ₽/шт

40

47410-33C00

Bracket, tail lamp

41

03541-0412A

ШАЙБА

85 ₽/шт

42

03241-1512B

Болт

82 ₽/шт

43

09148-05019

Гайка

102 ₽/шт

44

09136-06017

Винт 6X16

85 ₽/шт

45

09320-08501

САЙЛЕНТБЛОК

1 880 ₽/шт

46

09180-06248

Кольцо/шайба

179 ₽/шт

47

01500-06207

Болт

81 ₽/шт
