Главная Каталог товаров SUZUKI EPC 1099 cm³ < SUZUKI GSX 1100 SUZUKI GSX1100F K (E03,E28,E33) SUZUKI 56A - COWLING (MODEL K)

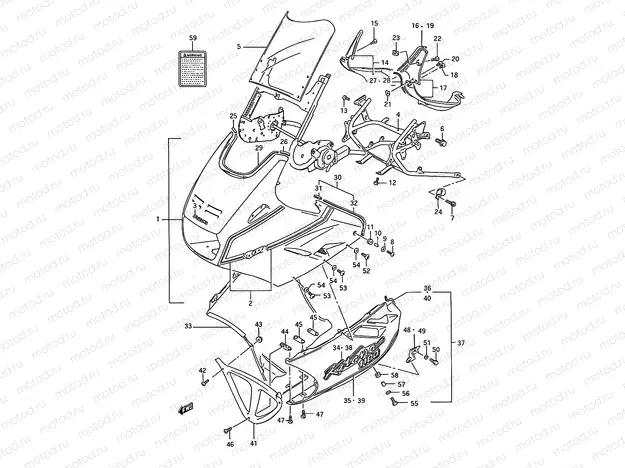

56A - COWLING (MODEL K)

56A - COWLING (MODEL K)

Например: 94400-48C10-33J

1

94400-48C10-33J

Body assy, cowling (black)

1

94400-48C00-33J

Body assy, cowling (black)

1

94400-48C11-33J

Body assy, cowling (black)

1

94400-48C01-33J

Body assy, cowling (black)

2

68180-48B31-3BD

3

68185-05C10-12R

.emblem

4

94510-48B21

race comp,cowl

5

94611-48B40

Windscreen

6

09103-10190-XC0

Vis

7

07130-0816A

БОЛТ

113 ₽/шт

8

09139-06028

SCREW(6X20)

194 ₽/шт

9

09160-06056

WASHER(6.5X18X1)

82 ₽/шт

10

09180-06262

Кольцо/шайба

162 ₽/шт

11

09320-09016

РЕЗИНКА

162 ₽/шт

12

09139-06030

Винт (6X16)

194 ₽/шт

13

02142-06127

Винт 6X12

81 ₽/шт

14

94700-48B10-291

PANEL ASSY,R

16 969 ₽/шт

15

02142-0508A

SCREW

85 ₽/шт

16

94635-19C00

MOLDING

918 ₽/шт

17

94800-48B10-291

Panel

18

02142-0508A

SCREW

85 ₽/шт

19

94635-19C00

MOLDING

918 ₽/шт

20

02142-0512A

Болт

85 ₽/шт

21

09148-05020

Гайка

97 ₽/шт

22

03241-M0512-A

Vis

23

09148-05020

Гайка

97 ₽/шт

24

09403-18410

Collier

25

94426-48B10

CAP,PANEL & COWLING,R

375 ₽/шт

26

94427-48B10

CAP,PANEL & COWLING,L

375 ₽/шт

27

94591-48B10

Molding.cowl.p.

28

94592-48B10

Moldimg. panel lh

29

94635-19C00

MOLDING

918 ₽/шт

30

94439-48B00

MOLDING,COWLING BODY SIDE

1 263 ₽/шт

31

94651-48B00

.cover

32

94479-48B00

MOLDING,COWLING BODY SIDE

942 ₽/шт

33

97600-48C01-33J

over assy, lower rh (black)

33

97600-48C02-33J

over assy, lower rh (black)

34

68191-48B20-3BJ

.emblem

35

68685-48B31-3BD

36

94479-48B00

MOLDING,COWLING BODY SIDE

942 ₽/шт

37

97700-48C01-33J

over assy, lower lh (black)

37

97700-48C02-33J

over assy, lower lh (black)

38

68191-48B20-3BJ

.emblem

39

68695-48B31-3BD

Tape,l

40

94479-48B00

MOLDING,COWLING BODY SIDE

942 ₽/шт

41

94475-48B02

Cover,cowling

42

09139-05025

БОЛТ НЕ КОЛЕСНЫЙ, МЕТАЛЛ

162 ₽/шт

43

08316-2005A

Гайка

85 ₽/шт

44

94490-06B00

Plate,lower

45

94493-06B00

race comp,cowl

46

09139-06027

Винт (6х12)

194 ₽/шт

47

09139-06039

SCREW(6X16)

1 410 ₽/шт

48

94580-48B11

race,cowllower

49

94590-48B11

race,lower,l.

50

01500-08127

Болт

81 ₽/шт

51

08321-01087

Пластина замка

81 ₽/шт

52

09139-06028

SCREW(6X20)

194 ₽/шт

53

09139-06030

Винт (6X16)

194 ₽/шт

54

09161-07006

Шайба

307 ₽/шт

55

09139-06028

SCREW(6X20)

194 ₽/шт

56

09160-06056

WASHER(6.5X18X1)

82 ₽/шт

57

09180-06121

SPACER(6.4X9.2X12)

1 330 ₽/шт

58

09320-09016

РЕЗИНКА

162 ₽/шт

59

68922-14F01

Label,screen

771 ₽/шт

59

68922-14F31

Label,screen

567 ₽/шт
