Главная Каталог товаров SUZUKI EPC 1099 cm³ < SUZUKI GSX 1100 SUZUKI GSX1100F K (E03,E28,E33) SUZUKI 37 - FRAME COVER (MODEL J/K/L)

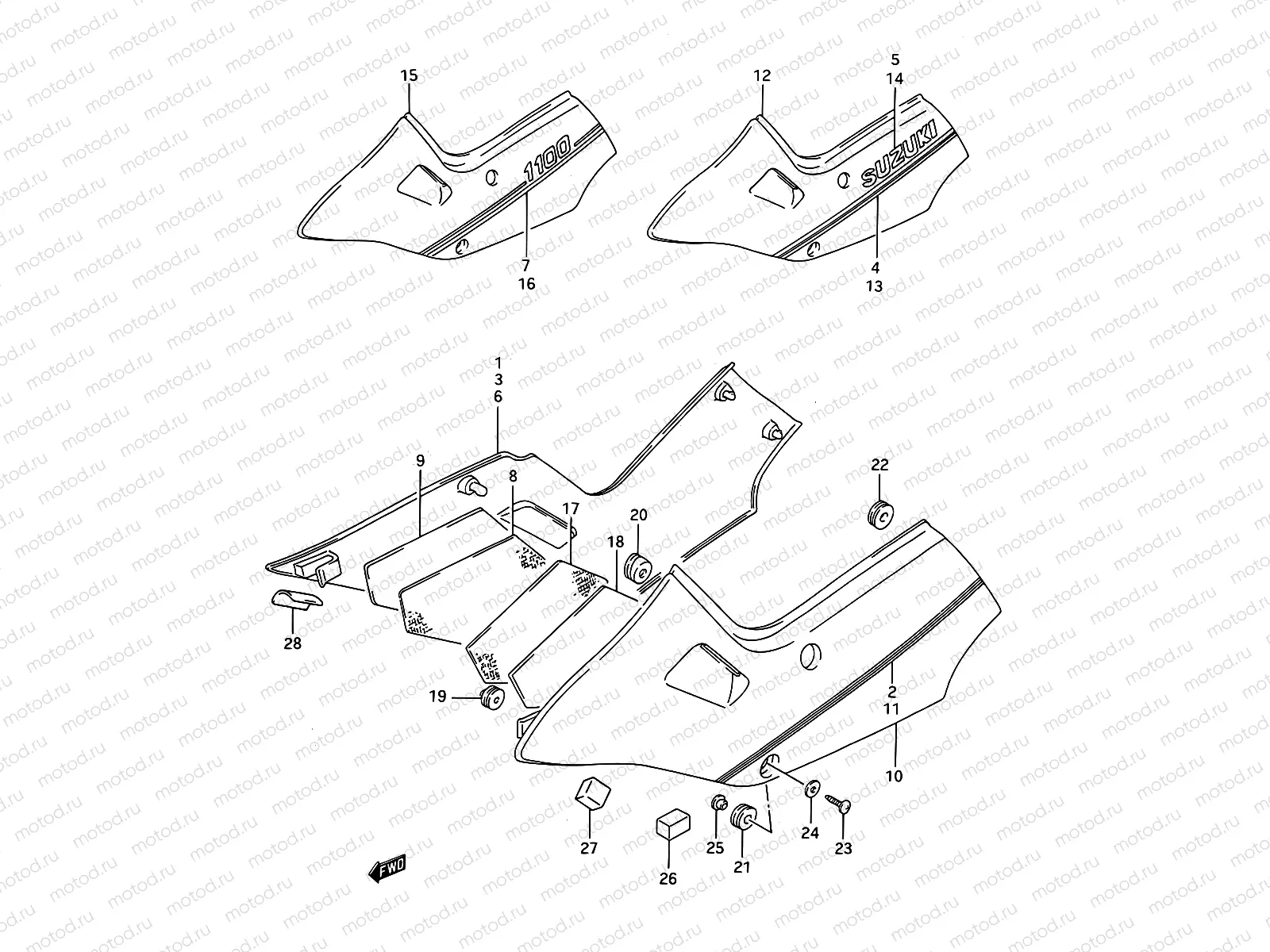

37 - FRAME COVER (MODEL J/K/L)

37 - FRAME COVER (MODEL J/K/L)
Например: 47110-48B90-33J
3
47110-48B90-33J
Cover, frame rh (black)
3
47110-48B91-33J
Cover, frame rh (black)
4
68135-48B31-3BD
5
68181-32B00-12R
.emblem, frame cover (silver)
8
47166-48B01
Heat shield, rh
9
47169-48B01
alancer sheet, rh
12
47210-48B90-33J
Cover, frame lh (black)
12
47210-48B91-33J
Cover, frame lh (black)
13
68145-48B31-3BD
14
68181-32B00-12R
.emblem, frame cover (silver)
17
47266-48B00
Heat shield, lh
18
47269-48B00
alancer sheet, lh
18
47162-48B10
Cushion
20
47163-48B10
CUSHION,COVER FRAME FR NO.2
270 ₽/шт
21
47161-48B10
Damper (rear)
22
09320-08527
Cushion
1 640 ₽/шт
23
09125-06079
Vis
24
09160-06084
Шайба 6.5X18X1
81 ₽/шт
25
09169-06058
Rondelle
26
47165-48B11
CUSHION
250 ₽/шт
27
56314-48B10
CUSHION
210 ₽/шт
28
47261-48B00
PROTECTOR,FRAME COVER FR
512 ₽/шт
