Главная Каталог товаров SUZUKI EPC 1099 cm³ < SUZUKI VS 1400 Intruder SUZUKI VS1400GLF H Intruder (E03,E28,E33) SUZUKI 55 - REAR FENDER

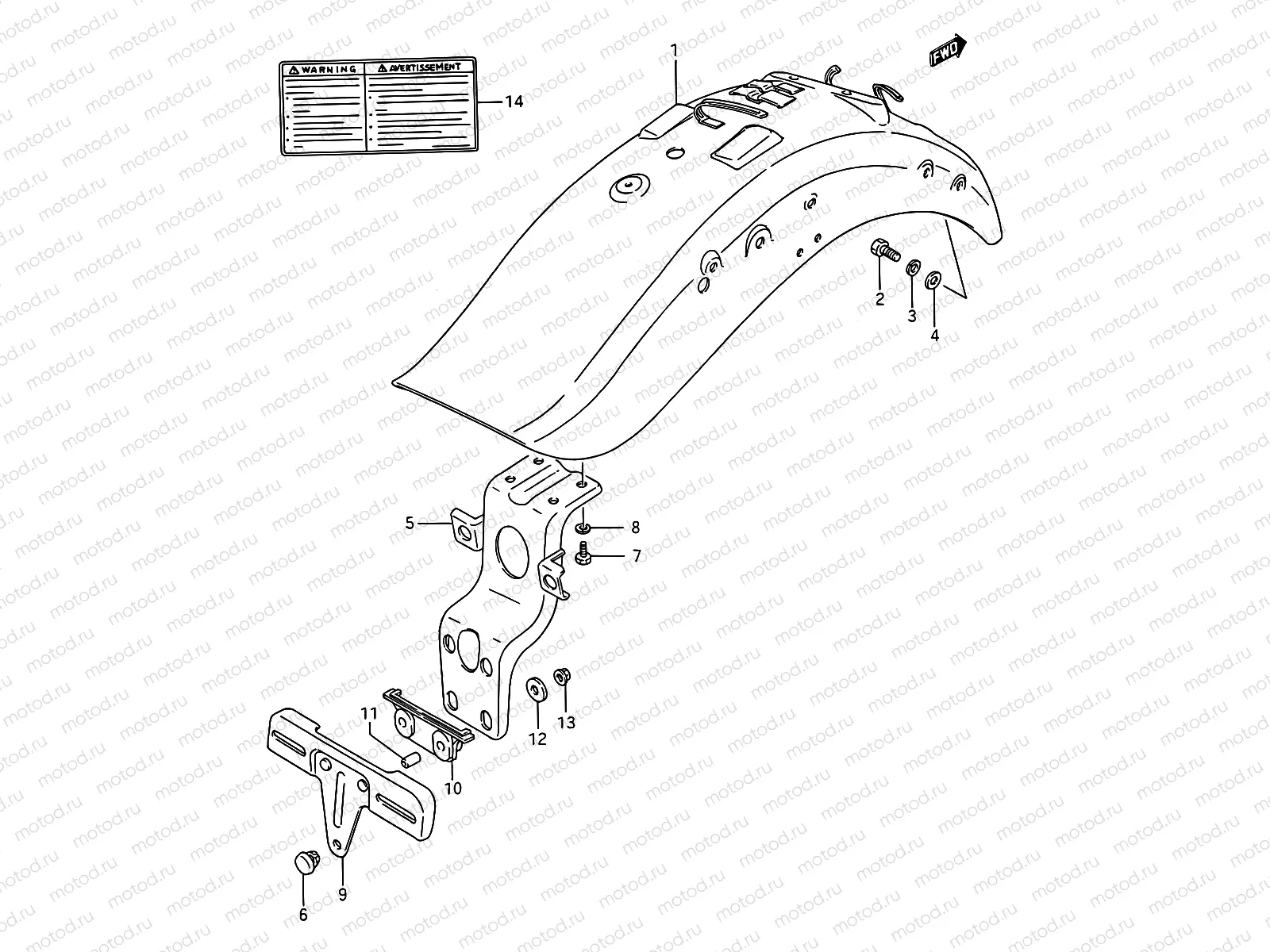

55 - REAR FENDER

55 - REAR FENDER
Например: 63110-38B01-33J
1
63110-38B01-33J
FENDER, REAR (BLACK)
1
63110-38B00-33D
Fender, rear (maroon)
1
63110-38B00-24V
Fender, rear (blue)
2
01500-0820A
Болт
85 ₽/шт
3
08321-0108B
Пластина замка
81 ₽/шт
3
09162-08008
Шайба, стопорная
85 ₽/шт
4
08322-0108A
Шайба
85 ₽/шт
5
63460-38B00
RACKET,RR COMBINATION LAMP
7 234 ₽/шт
6
09321-08005
Damper
7
01500-0612B
Болт
1 210 ₽/шт
8
08321-0106A
Шайба
81 ₽/шт
9
63463-38B10
PLATE,RR LICENSE
3 030 ₽/шт
10
63464-38B01
Cushion,rr lice
11
09180-05050
Кольцо/шайба
3 010 ₽/шт
12
09160-05501
Шайба (5.5X20X1.2)
81 ₽/шт
13
08316-2005A
Гайка
85 ₽/шт
15
68332-38B30
Label, tire air pressure
16
99011-38B50-28B
Manual, owner's
