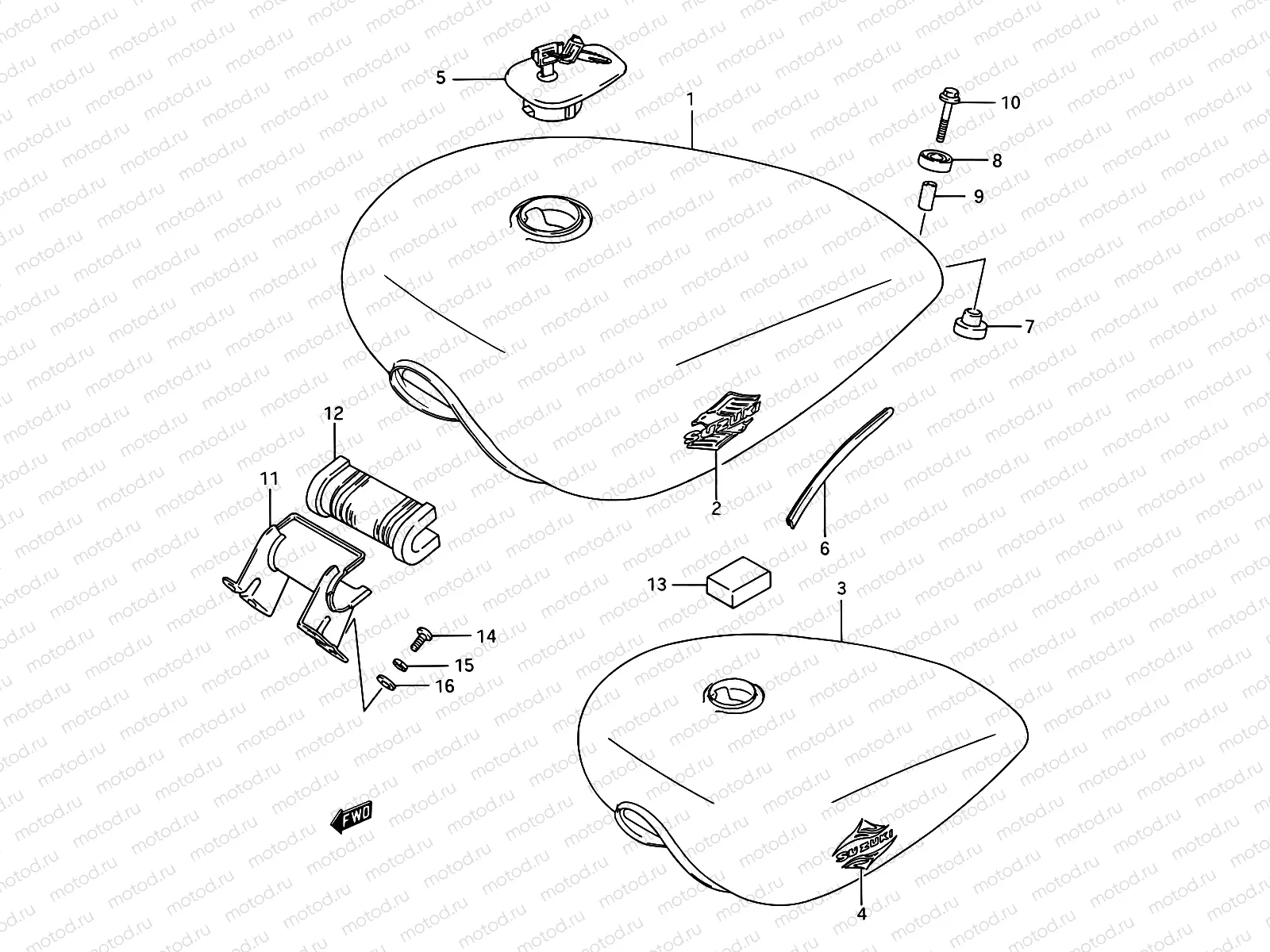

35 - FUEL TANK (MODEL H/J)

35 - FUEL TANK (MODEL H/J)
Например: 44110-38B21-YD8
1
44110-38B21-YD8
Fuel tank
2
68111-38A00-24W
Эмблема топливного бака
5 834 ₽/шт
2
68111-38A00-22Z
Эмблема топливного бака
5 865 ₽/шт
2
68111-38A00-23A
Эмблема топливного бака
1 732 ₽/шт
5
44200-38820
CAP SET,FUEL TANK
9 384 ₽/шт
5
44200-38851
Cap set,tank
5
997SO-38870
6
68241-04X50-00B
MOLDING
1 696 ₽/шт
7
09320-10038
CUSHION
115 ₽/шт
8
09320-14013
Валик топливного бака
221 ₽/шт
9
09180-06274
Кольцо/шайба
275 ₽/шт
10
01550-0635B
Болт
112 ₽/шт
11
44250-38B00-019
Кронштейн
3 597 ₽/шт
12
44511-38B01
CUSHION,FUEL TANK FR
1 036 ₽/шт
13
56314-48B10
CUSHION
210 ₽/шт
14
02142-0616A
Болт
81 ₽/шт
15
08321-0106A
Шайба
81 ₽/шт
16
08322-0106A
Шайба
81 ₽/шт
