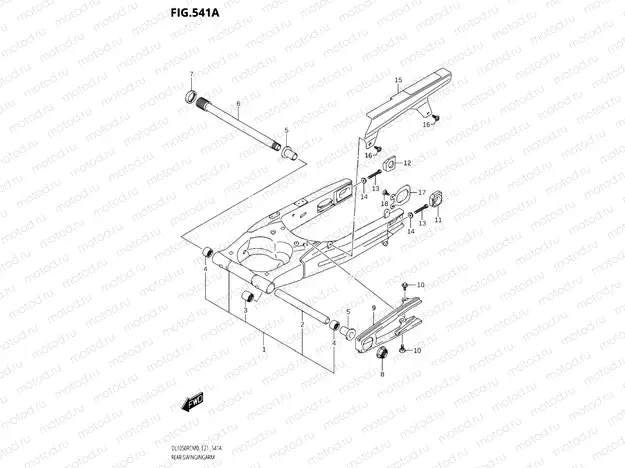

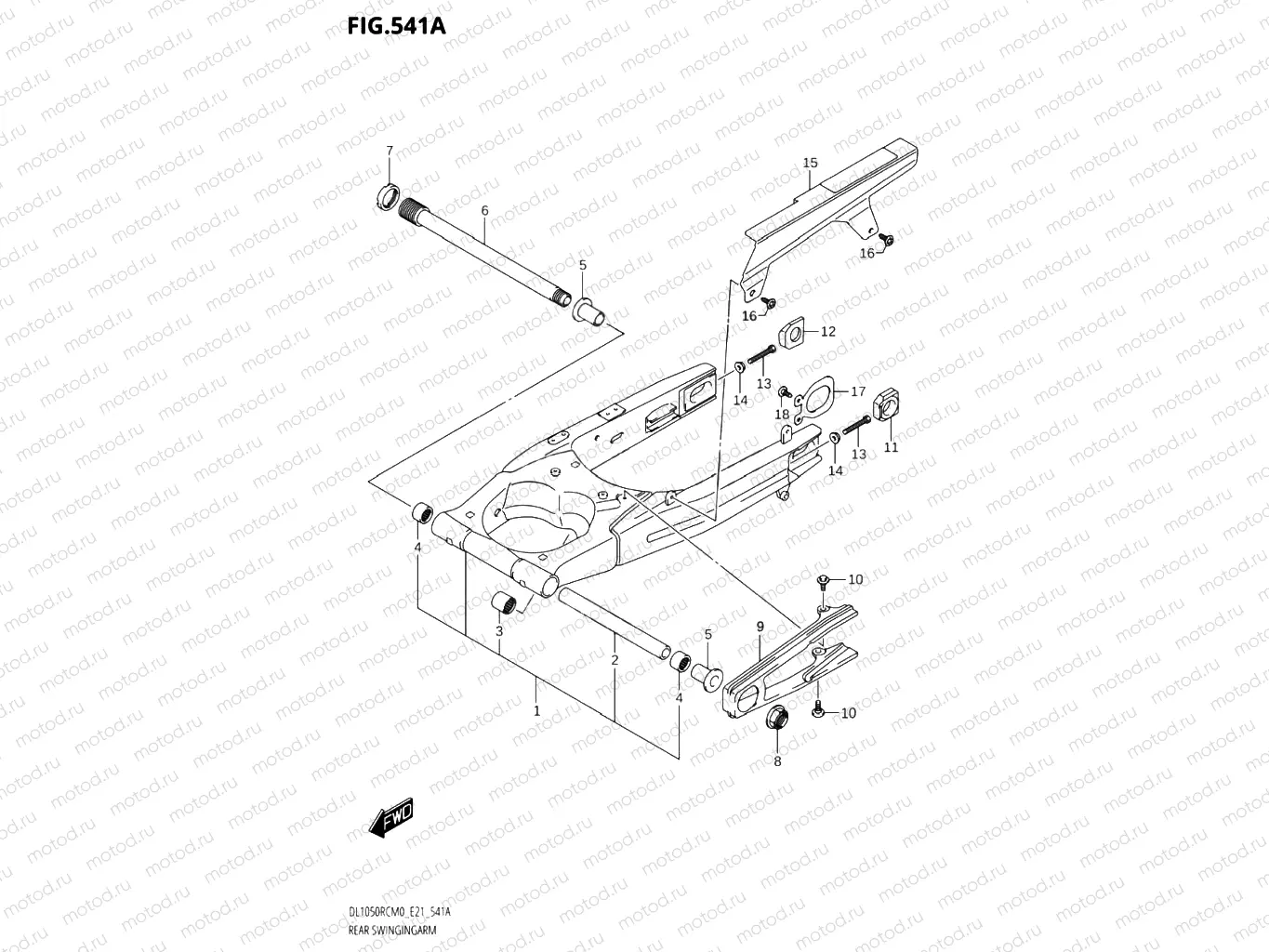

541A - REAR SWINGINGARM

541A - REAR SWINGINGARM
Например: 61000-31J21-YAP
1
61000-31J21-YAP
Swingingarm ass
2
61281-31J00
SPACER,RR SWGARM PIVOT CTR
1 795 ₽/шт
3
09263-20070
BEARING(20X27X30)
1 615 ₽/шт
4
09263-27015
Bearing(27X35X35)
1 567 ₽/шт
5
61251-41G00
Шайба, подшипник
1 870 ₽/шт
6
61211-31J00
SHAFT,RR SWGARM PIVOT
6 290 ₽/шт
7
61214-42E16
(NO NAME)
8
09159-20006
Гайка
1 518 ₽/шт
9
61273-31J01
Guard chain sliding shoe
10
09139-06226
Screw,chain buf
11
61446-40F00
НАТЯЖИТЕЛЬ ЦЕПИ
3 011 ₽/шт
12
61445-40F00
ADJUSTER,CHAIN
3 011 ₽/шт
13
09100-08287
BOLT(8X50)
162 ₽/шт
14
08316-1008A
Гайка вала
81 ₽/шт
15
61310-16G00
Корпус натяжения
3 825 ₽/шт
16
09139-06225
Bolt,chain case
17
61124-33E00
PLATE,RR SWING ARM BRKT
418 ₽/шт
18
02142-06127
Винт 6X12
81 ₽/шт
