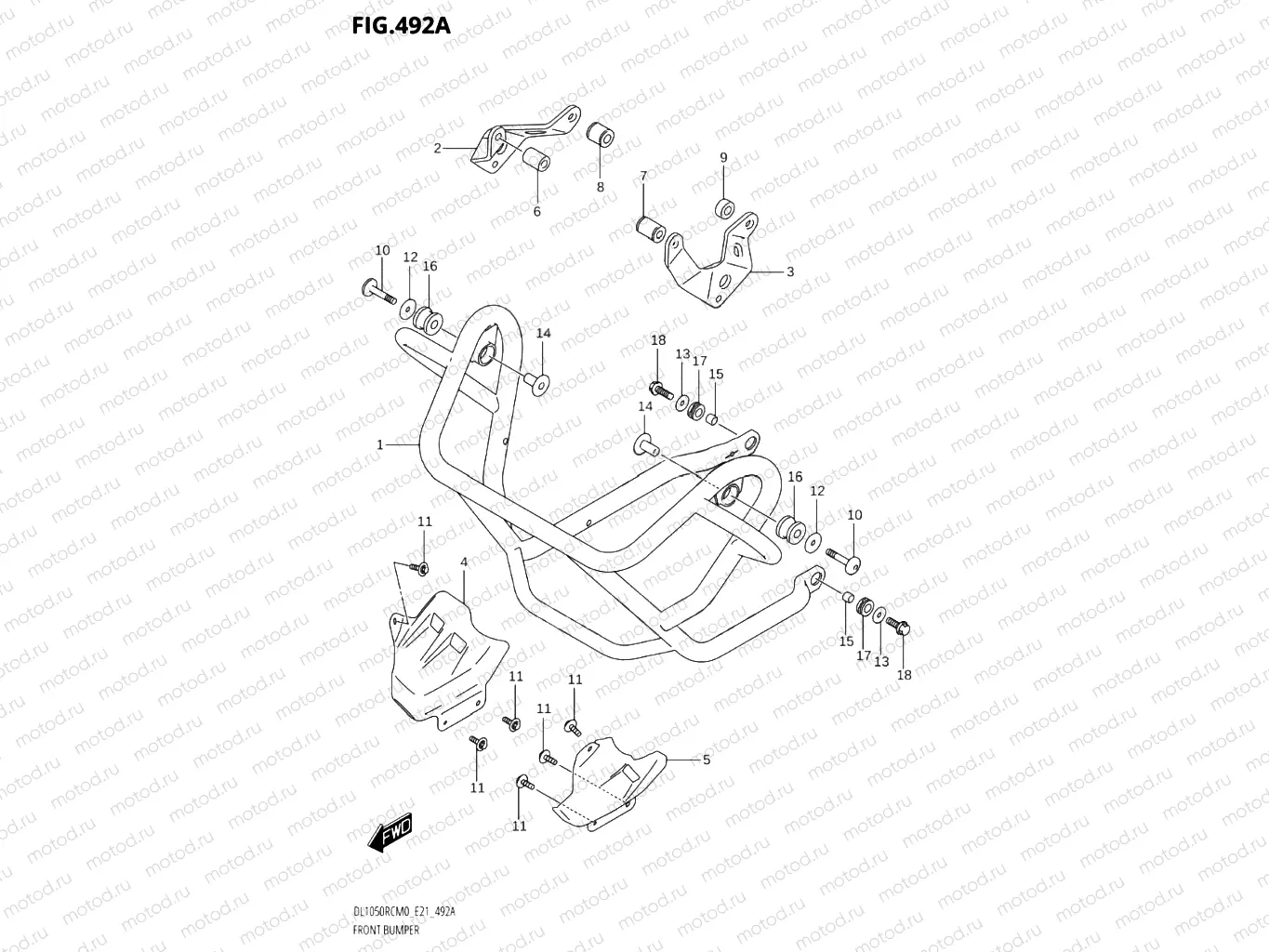

492A - FRONT BUMPER (DL1050RC)

492A - FRONT BUMPER (DL1050RC)

Например: 94210-06L00

1

94210-06L00

Bar,accessory

2

94230-06L00

Bracket,accesso

3

94240-06L00

Bracket,accesso

4

94251-06L00

COVER.UNDER RH

5

94261-06L00

Cover,under lh

6

94272-06L00

Spacer,fr rh

7

94273-06L00

Spacer,fr lh

8

94274-06L00

Spacer,rr rh

9

94275-06L00

Spacer,rr lh

10

09106-08207

Bolt,accessory

11

09116-06527

Bolt,with washe

12

09160-08157

WASHER(8.5X28X1.6)

1 490 ₽/шт

13

09160-08177

Washer,accessor

14

09180-08152

SPACER(8.6X12X24.2)

291 ₽/шт

15

09180-08230

Spacer,accessor

16

09320-12048

САЙЛЕНТБЛОК

469 ₽/шт

17

09320-12068

САЙЛЕНТБЛОК

2 070 ₽/шт

18

01550-0830B

Болт

113 ₽/шт
