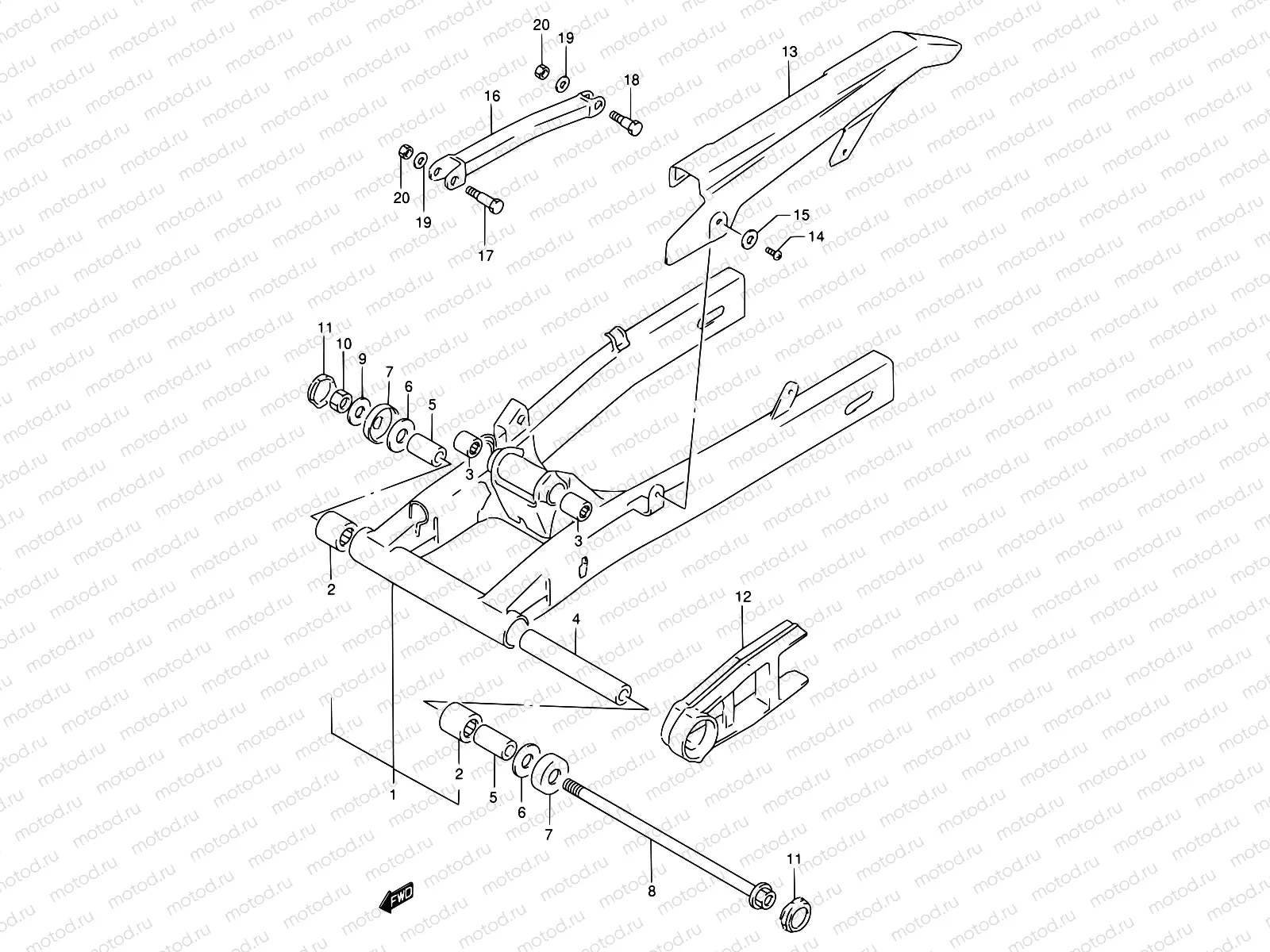

54 - REAR SWINGING ARM

54 - REAR SWINGING ARM
Например: 61000-24D02-20H
1
61000-24D02-20H
Swinging arm assy, rear (silver)
2
09263-22017
BEARING(22X29X30)
1 308 ₽/шт
3
09263-17053
Подшипник
1 147 ₽/шт
4
61282-01D00
SPACER,RR SWGARM PIVOT CTR
1 267 ₽/шт
5
61251-45001
SPACER,RR SWGARM PIVOT
1 003 ₽/шт
6
09160-14020
WASHER(14.2X34X1)
1 410 ₽/шт
7
61262-45002
CVR,RR SWGARM DUST SEAL(OD:40)
544 ₽/шт
8
61211-30B00
SHAFT,RR SWINGINGARM PIVOT
2 326 ₽/шт
9
09160-14009
ШАЙБА
1 640 ₽/шт
10
09159-14019
Гайка
7 080 ₽/шт
11
61222-43400
CAP,SWINGINGARM PIVOT
422 ₽/шт
12
61273-24D00
Buffer, chain tuch defense
13
61310-24D00
Case, chain
14
02142-0610B
Винт держатель
85 ₽/шт
15
09169-06026
Пластина замка
119 ₽/шт
16
64310-24D00-019
Torque link, rear (black)
17
09111-10052
BOLT(10X41)
3 280 ₽/шт
18
09100-10187
BOLT(10X34)
2 270 ₽/шт
19
09160-10142
Шайба
1 370 ₽/шт
20
09159-10027
Гайка
211 ₽/шт
