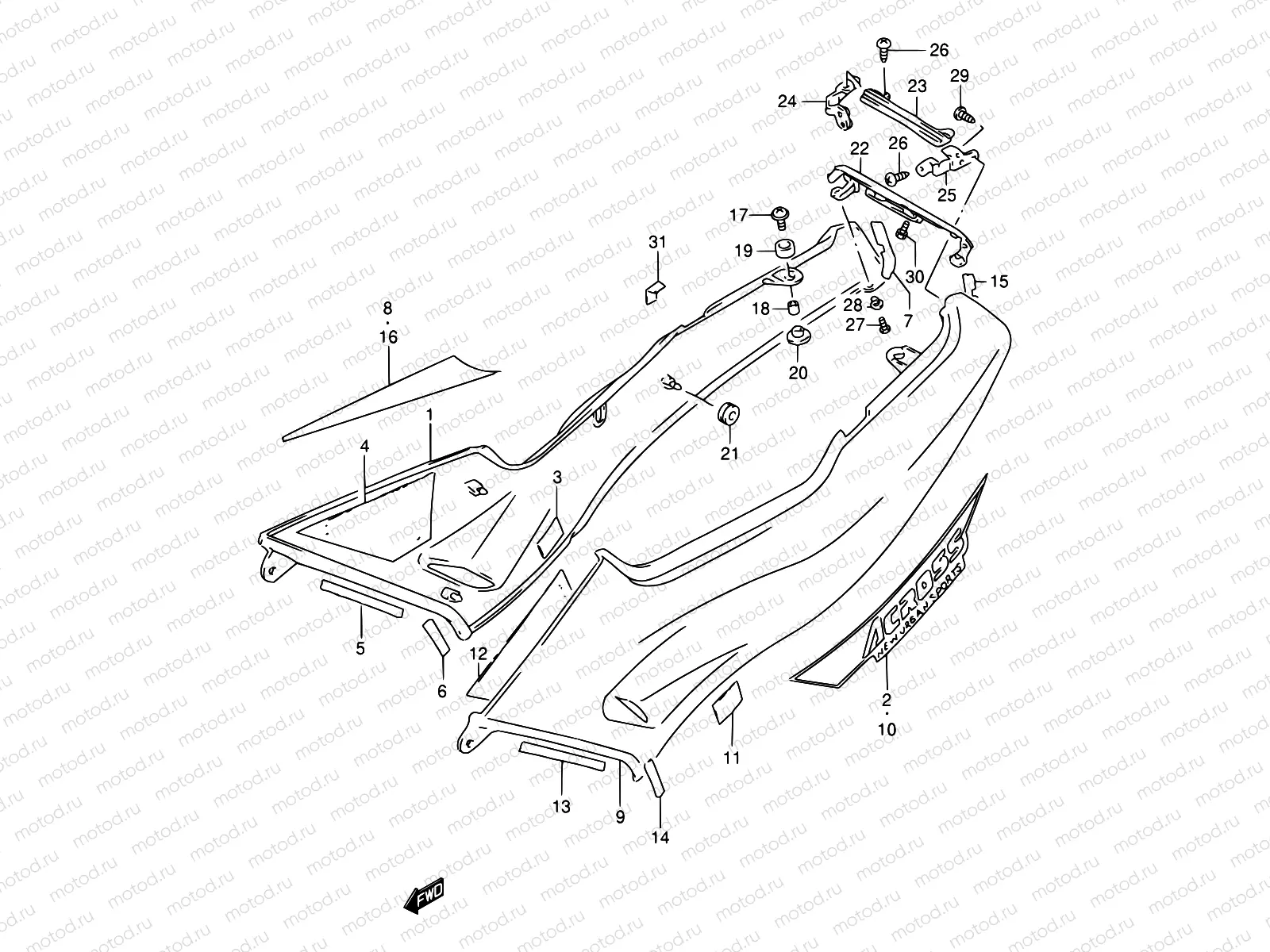

37C - FRAME COVER (MODEL V)

37C - FRAME COVER (MODEL V)

Например: 47110-24D60-2XX

1

47110-24D60-2XX

Cover, frame rh (black)

1

47110-24D60-33J

Cover, frame rh (black)

2

68131-24D40-G0B

.emblem, frame cover rh

2

68131-24D40-G0C

.emblem, frame cover rh

3

44885-38A00

CUSHION

254 ₽/шт

4

47117-24D00

.shield, heat rh

5

47161-24D00

Protector,frame

6

94461-08C00

PROTECTOR,FRAME COVER NO.2

313 ₽/шт

7

47162-24D00

.seal, rear

8

68135-24D00-1HU

.tape, cover rh (purple)

8

68135-24D00-1ZV

.tape, cover rh (green)

9

47210-24D60-2XX

Cover, frame lh (black)

9

47210-24D60-33J

Cover, frame lh (black)

10

68141-24D40-G0B

Emblem, frame cover

2 620 ₽/шт

10

68141-24D40-G0C

Emblem, frame cover

2 620 ₽/шт

11

44885-38A00

CUSHION

254 ₽/шт

12

47217-24D00

.shield, heat lh

13

47161-24D00

Protector,frame

14

94461-08C00

PROTECTOR,FRAME COVER NO.2

313 ₽/шт

15

47162-24D00

.seal, rear

16

68145-24D00-1HU

.tape, cover lh (purple)

16

68145-24D00-1ZV

.tape, cover lh (green)

17

09136-06105

Болт

129 ₽/шт

18

45537-04A00

Кольцо/шайба

162 ₽/шт

19

45149-04A00

CUSHION,TAIL COVER UPR

162 ₽/шт

20

45326-04A00

CUSHION,TAIL COVER LWR

162 ₽/шт

21

09320-08527

Cushion

1 640 ₽/шт

22

47320-24D10-33J

Cover, frame end (black)

23

47360-24D00

BRACKET,FRAME COVER RR

4 457 ₽/шт

24

47366-24D00

BRACKET,FRAME COVER RR,R

575 ₽/шт

25

47367-24D00

BRACKET,FRAME COVER RR,L

575 ₽/шт

26

02142-0508A

SCREW

85 ₽/шт

27

02142-0512A

Болт

85 ₽/шт

28

09161-05017-LCP

Rondelle

29

03541-0512B

Винт

81 ₽/шт

30

07130-05083

Vis

31

47163-24D00-33J

Protector, rear (red)
