Главная Каталог товаров SUZUKI EPC 350 cm³ - 699 cm³ SUZUKI GSX-R 600 SUZUKI GSX-R600 L1 (E03,E28,E33) SUZUKI (VIN: JS1C3111) 53 - EVAP SYSTEM (GSX-R600L1 E33)

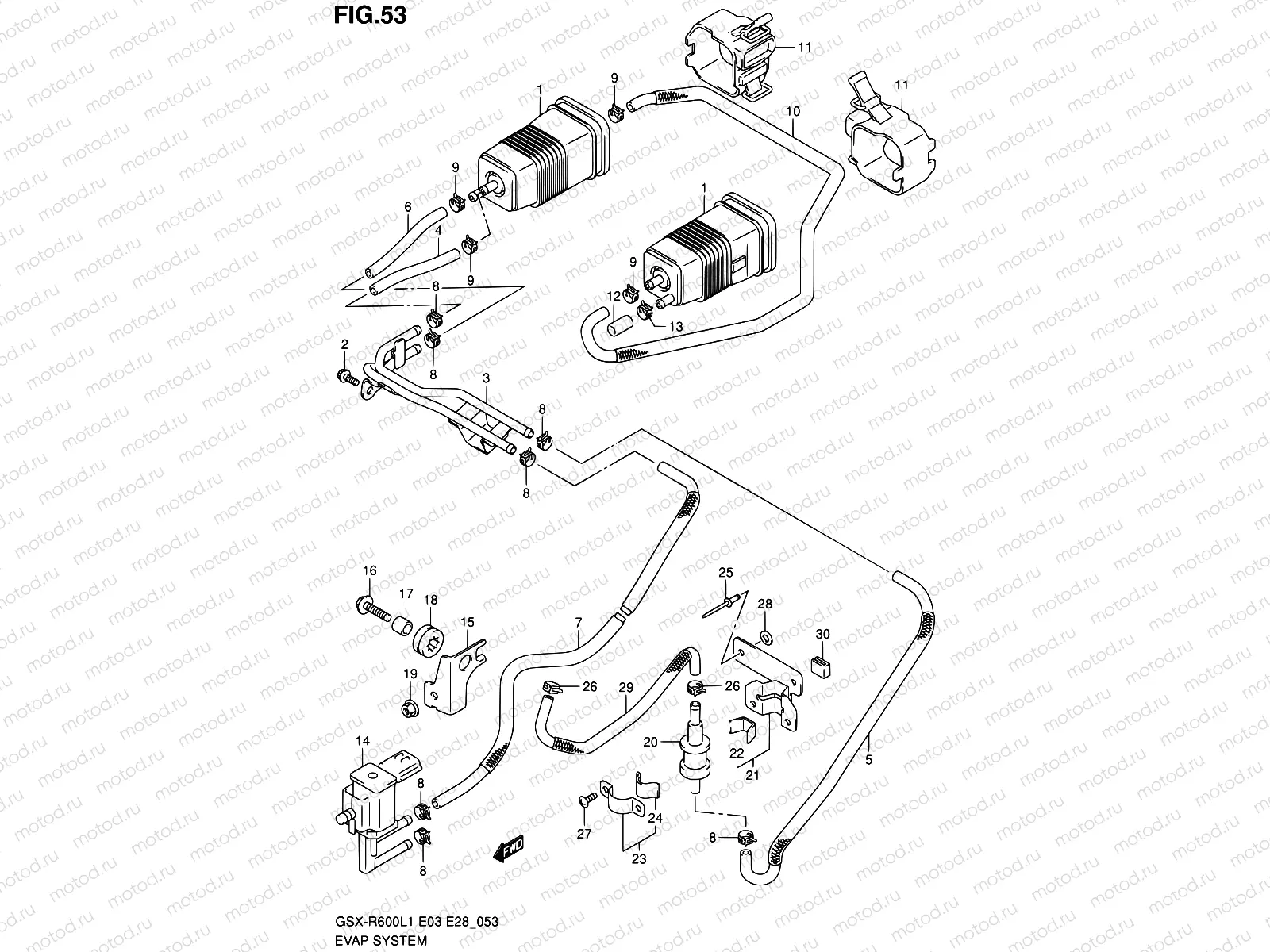

53 - EVAP SYSTEM (GSX-R600L1 E33)

53 - EVAP SYSTEM (GSX-R600L1 E33)

Например: 18560-14J00

1

18560-14J00

Адсорбер с активированным углем

11 339 ₽/шт

2

07120-0612B

БОЛТ

184 ₽/шт

3

18340-14J00

PIPE,EVAP

4 731 ₽/шт

4

18561-14J00

HOSE,SURGE NO.1

1 282 ₽/шт

5

18562-14J00

HOSE,SURGE NO.2

2 620 ₽/шт

6

18563-14J00

HOSE,PURGE NO.1

1 282 ₽/шт

7

18564-14J00

HOSE,PURGE NO.2

3 519 ₽/шт

8

09401-10409

ХОМУТ МАЛЫЙ

119 ₽/шт

9

09401-12404

Крепёж

162 ₽/шт

10

18565-14J00

HOSE,CANISTER JOINT

5 161 ₽/шт

11

18572-14J00

CUSHION,CANISTER

1 200 ₽/шт

12

09251-07003

КРЫШКА ВОЗДУШНОГО ФИЛЬТРА

162 ₽/шт

13

09401-11413

ХОМУТ МАЛЫЙ

102 ₽/шт

14

18117-52G00

Клапан

9 520 ₽/шт

15

18571-14J00

BRACKET,PURGE VALVE

602 ₽/шт

16

09116-06203

BOLT(6X30)

1 840 ₽/шт

17

09180-06319

Прокладка 6.5X10X1

2 270 ₽/шт

18

09320-10055

CUSHION

187 ₽/шт

19

08316-1006A

Гайка

85 ₽/шт

20

44240-38A00-000

VALVE,FUEL TANK BREATHER

2 210 ₽/шт

21

44890-47H00

PLATE,BREATHER VALVE

1 431 ₽/шт

22

44894-24A00

CUSHION

98 ₽/шт

23

44892-24A00

PLATE,FUEL TANK BREATHER NO.2

227 ₽/шт

24

44894-24A00

CUSHION

98 ₽/шт

25

09229-04038

RIVET

145 ₽/шт

26

09401-11413

ХОМУТ МАЛЫЙ

102 ₽/шт

27

02142-0408B

Винт

82 ₽/шт

28

08322-0104B

Шайба

81 ₽/шт

29

44434-37H00

OSE,TANK & BREATHER VALVE

3 382 ₽/шт

30

44894-24A00

CUSHION

98 ₽/шт
