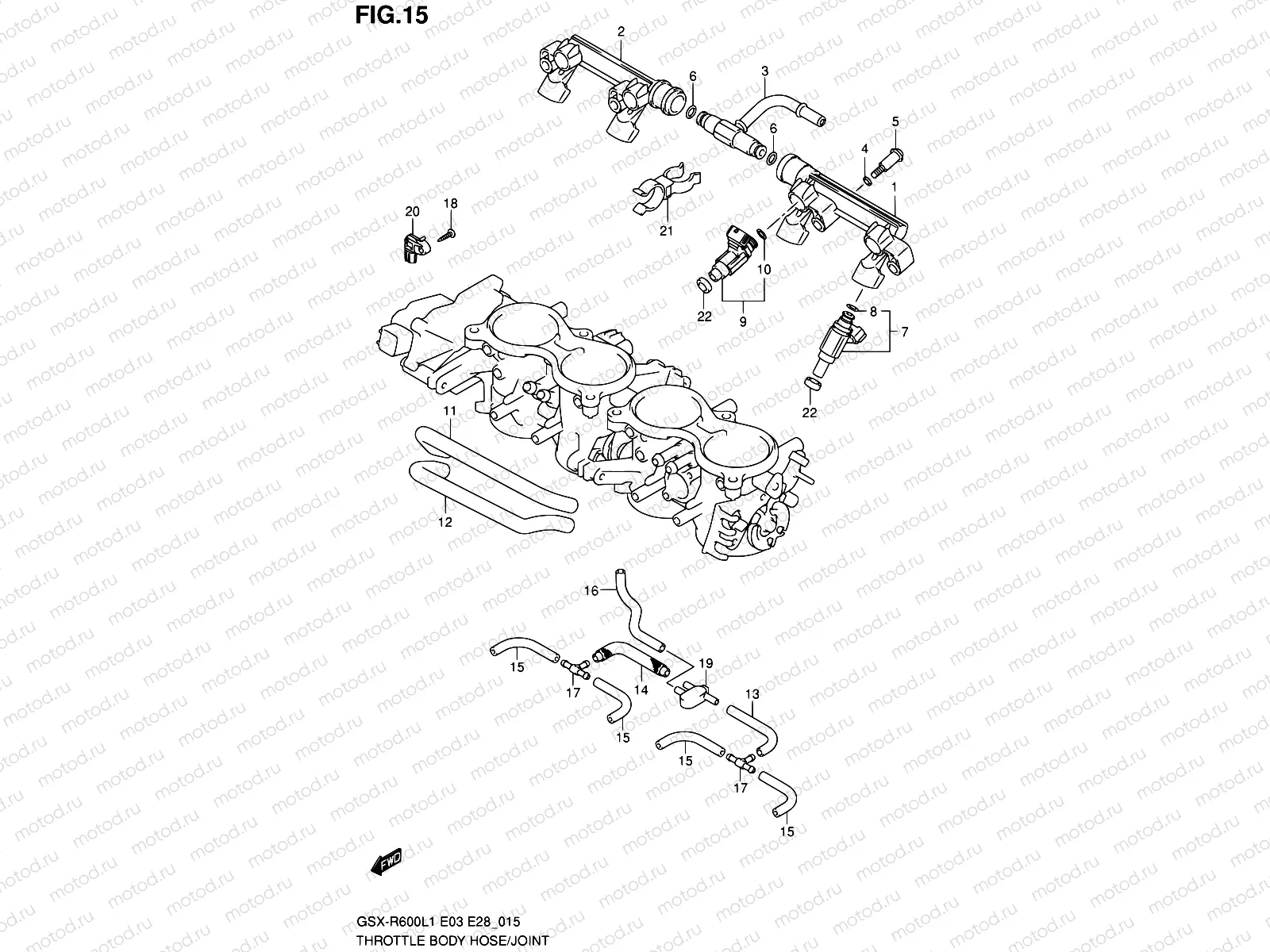

15 - THROTTLE BODY HOSE/JOINT (GSX-R600L1 E28)

15 - THROTTLE BODY HOSE/JOINT (GSX-R600L1 E28)

Например: 13473-14J00

1

13473-14J00

Подающая труба

4 809 ₽/шт

2

13473-14J10

Подающая труба

4 809 ₽/шт

3

13473-29G00

NIPPLE ASSY

4 848 ₽/шт

4

13602-29G01

Packing

184 ₽/шт

5

13601-29G00

Болт

207 ₽/шт

6

15721-08J00

O RING

493 ₽/шт

7

15710-14J00

INJECTOR ASSY

17 204 ₽/шт

8

15717-58B00

Кольцо уплотнительное

581 ₽/шт

9

15710-14J10

INJECTOR ASSY

17 204 ₽/шт

10

15717-58B00

Кольцо уплотнительное

581 ₽/шт

11

13698-14J00

HOSE

2 639 ₽/шт

12

13698-14J10

HOSE

2 639 ₽/шт

13

13683-14J00

HOSE

473 ₽/шт

14

13683-14J10

HOSE

571 ₽/шт

15

13683-10F61

Hose(L:425)

1 088 ₽/шт

16

13683-29G01

Hose

590 ₽/шт

17

13685-02FA0

WAY,VACUUM HOSE

355 ₽/шт

18

13437-14J00

Болт

227 ₽/шт

19

13471-18H00

Золотник

520 ₽/шт

20

15620-29G00

Датчик прессуры

14 623 ₽/шт

21

09408-00262

CLAMP

2 030 ₽/шт

22

15722-14J00

SEAL

692 ₽/шт
