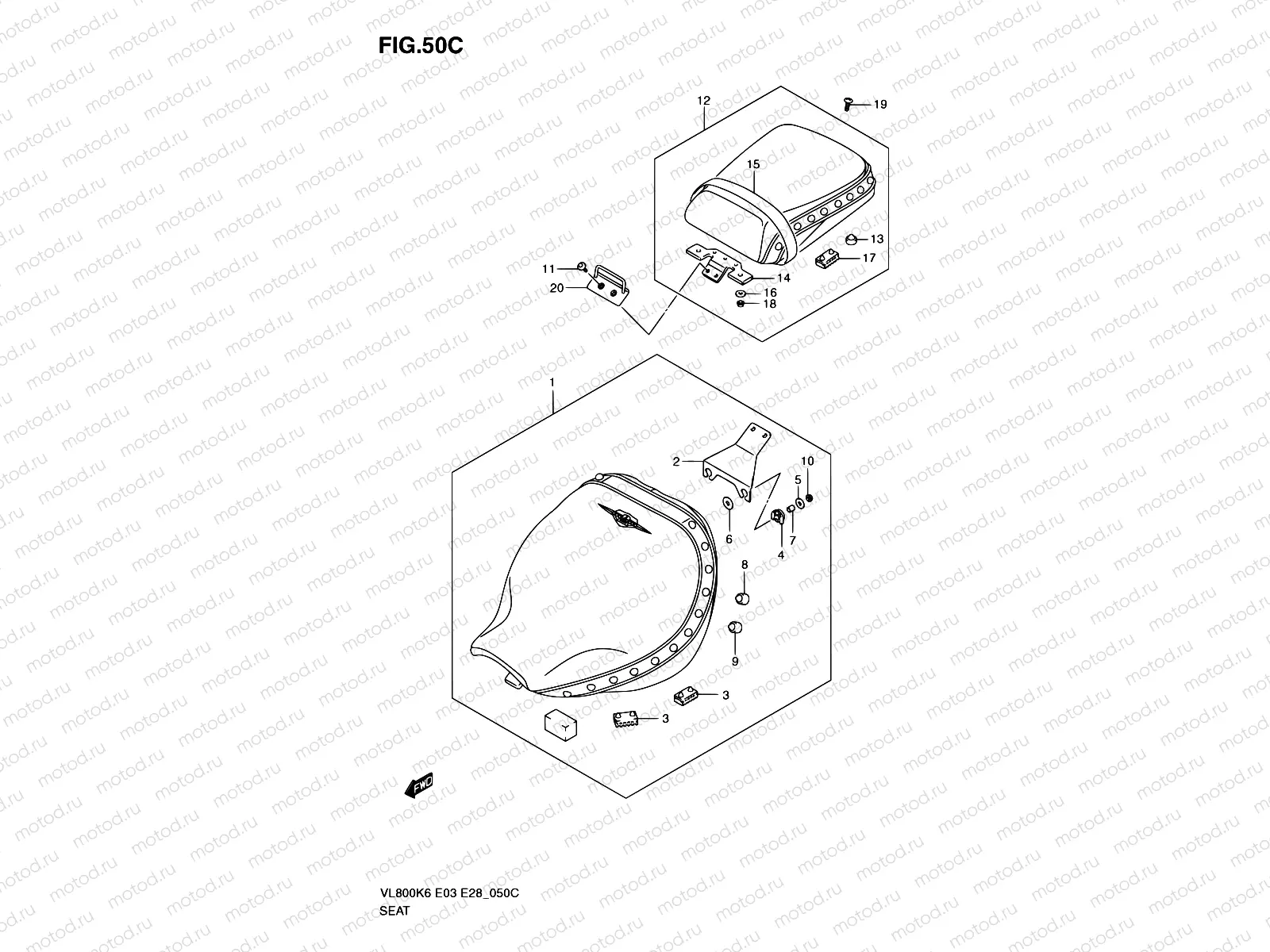

50C - SEAT (VL800TK9/TL0)

50C - SEAT (VL800TK9/TL0)
Например: 45100-43H10-GFA
1
45100-43H10-GFA
Seat assy (black)
2
45115-43H00
Кронштейн сидения
1 853 ₽/шт
3
45149-31300
CUSHION,SEAT(40X20X15)
510 ₽/шт
4
45215-43H00
CUSHION,SEAT BRACKET
1 095 ₽/шт
5
09160-06088
ШАЙБА
97 ₽/шт
6
09160-06501
Шайба
102 ₽/шт
7
09180-C0628-8J000
Кольцо/шайба
221 ₽/шт
8
09321-10002
CUSHION
162 ₽/шт
9
09321-10033
CUSHION
2 970 ₽/шт
10
08316-1006A
Гайка
85 ₽/шт
11
09106-06064
БОЛТ
3 680 ₽/шт
12
45300-43H10-GFA
Seat assy, pillion (black)
13
45147-12FA0
CUSHION,RR
255 ₽/шт
14
45330-43H00
BRACKET,PILLION SEAT
2 835 ₽/шт
15
45380-43H00-48H
BAND,SEAT PILLION(BLACK)
1 159 ₽/шт
16
09160-06088
ШАЙБА
97 ₽/шт
17
09321-10002
CUSHION
162 ₽/шт
18
08316-1006A
Гайка
85 ₽/шт
19
09106-08140
Заглушка масляной магистрали
258 ₽/шт
20
45210-43H00
BRACKET,SEAT SUPPORT
1 584 ₽/шт
