Главная Каталог товаров SUZUKI EPC 700 cm³ - 1099 cm³ SUZUKI VL 800 Intruder C800 / Boulevard C50 SUZUKI VL800 L0 Intruder C800 / Boulevard C50 SUZUKI 29 - SPEEDOMETER (VL800K6/TK6/CK6)

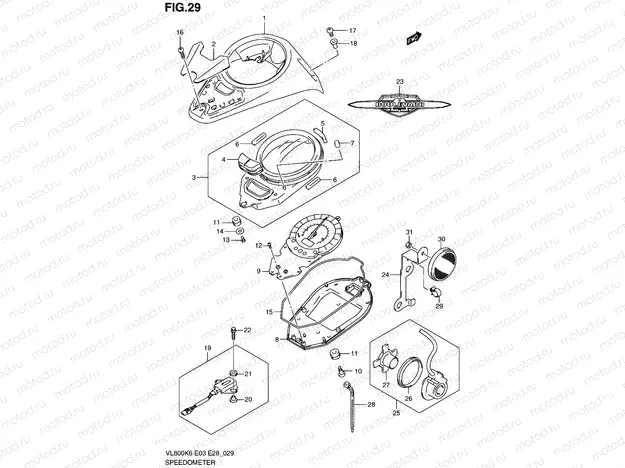

29 - SPEEDOMETER (VL800K6/TK6/CK6)

29 - SPEEDOMETER (VL800K6/TK6/CK6)

Например: 34150-41F00

1

34150-41F00

CASE ASSY

17 947 ₽/шт

2

34157-41FA0

PLATE,DECORATION

2 040 ₽/шт

3

34151-41F00

CASE,UPR

15 405 ₽/шт

4

34141-41F00

SWITCH,SELECT

1 322 ₽/шт

5

34196-41F00

CUSHION NO.1

438 ₽/шт

6

34196-41F10

CUSHION NO.2

438 ₽/шт

7

34961-41F00

CUSHION NO.4

426 ₽/шт

8

34152-41F00

CASE,LWR

3 734 ₽/шт

9

34120-41FF1

СП

47 124 ₽/шт

9

34120-41FK1

Speedometer (mile/kilo)

9

34120-41FE1

Speedometer

9

34120-41FJ1

Speedometer (kilo)

10

34186-41F00

Болт

563 ₽/шт

11

34996-43410

ВТУЛКА УПЛОТНИТЕЛЬНАЯ

170 ₽/шт

12

34183-14F00

Болт

203 ₽/шт

13

34149-16B00

Болт

85 ₽/шт

14

34181-21D00

Шайба

418 ₽/шт

15

34153-41F00

Прокладка

829 ₽/шт

16

09139-05025

БОЛТ НЕ КОЛЕСНЫЙ, МЕТАЛЛ

162 ₽/шт

17

09139-05032

SCREW(5X18)

129 ₽/шт

18

94618-48H10

Nut

19

36510-39F00

RESISTOR ASSY

6 647 ₽/шт

20

09180-06319

Прокладка 6.5X10X1

2 270 ₽/шт

21

09320-10015

САЙЛЕНТБЛОК

226 ₽/шт

22

09118-06086

Болт 6X25

1 680 ₽/шт

23

68281-41F10

EMBLEM,BOULEVARD

2 665 ₽/шт

24

34938-41F30

Guide,speed sen

24

34938-41F50

GUIDE,SPEED SENSOR LEAD

567 ₽/шт

25

34990-41F10

Сенсор скорости

13 372 ₽/шт

26

09286-44001

SEAL,OIL(44X55X6)

935 ₽/шт

27

34983-27G00

MAGNET

1 955 ₽/шт

28

09407-14407

ЗАЖИМ

221 ₽/шт

29

09403-06410

Хомут

1 250 ₽/шт

30

35950-14A00

REFLECTOR,REFLEX FR

2 295 ₽/шт

31

08316-1005B

Гайка

1 520 ₽/шт
