Главная Каталог товаров SUZUKI EPC 700 cm³ - 1099 cm³ SUZUKI DR 800 Big SUZUKI DR800S M SUZUKI 5 - CRANKSHAFT

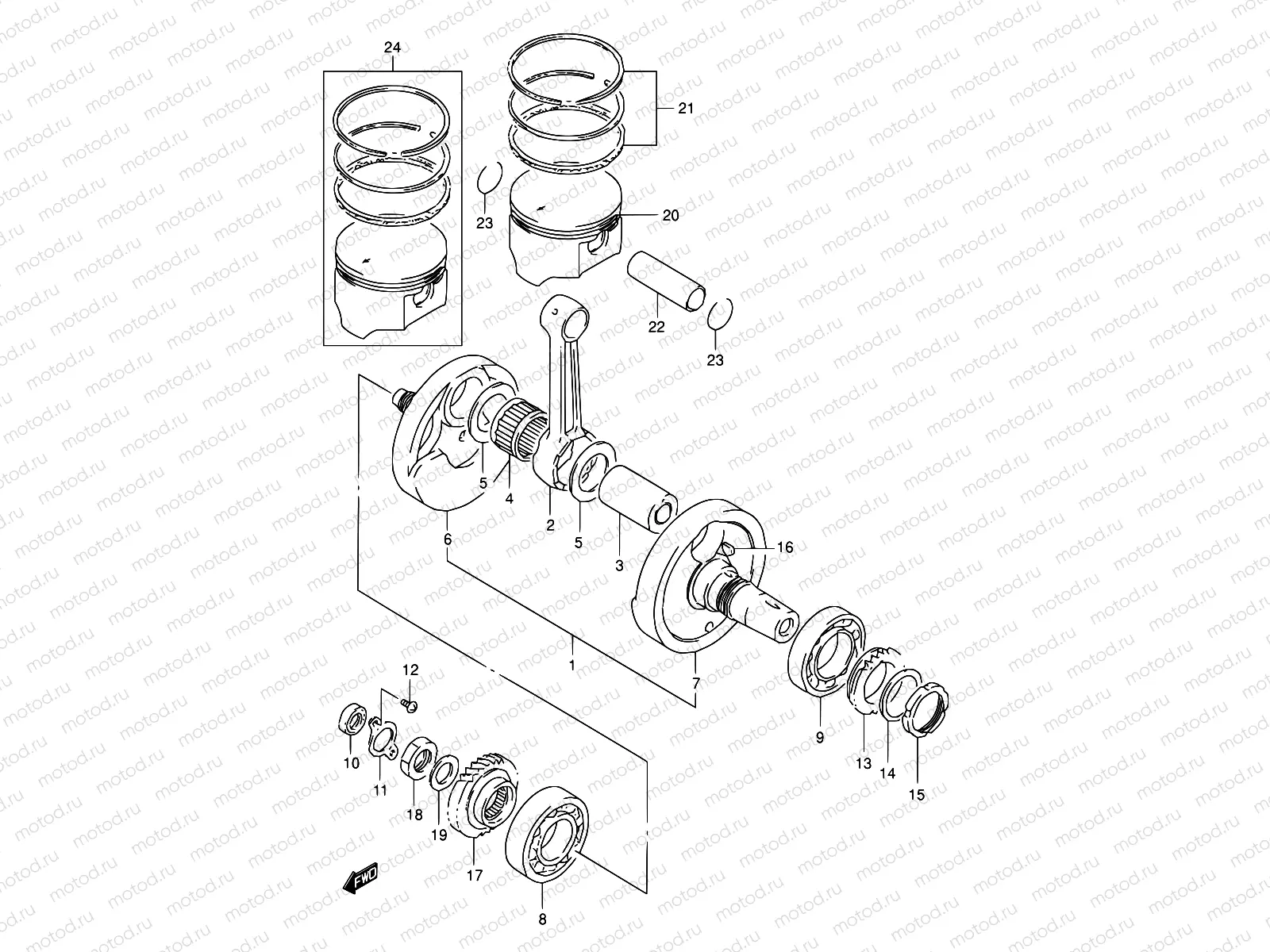

5 - CRANKSHAFT

5 - CRANKSHAFT

Например: 12200-31D00

1

12200-31D00

Vilebrequin

2

12161-45B00

Connecting rod

3

12210-31D00

Палец шатунный

6 056 ₽/шт

4

09263-41005

Bearing

5

09160-41002

Шайба

598 ₽/шт

6

12221-45B01

.crankshaft, rh

7

12261-45B00

.crankshaft, lh

8

09262-40007

BEARING(40X90X23)

6 686 ₽/шт

9

09262-45007

BEARING(45X85X19)

6 622 ₽/шт

10

09282-16002

SEAL,OIL(16X30X6)

791 ₽/шт

11

12548-37400

RETAINER,CRANKSHAFT BEARING,R

504 ₽/шт

12

02112-0510B

Болт

85 ₽/шт

13

12662-44B00

Sprocket,bal.dr

14

09164-40003

WASHER

132 ₽/шт

15

12664-44B00

NUT,BAL DRIVE SPRKT

1 185 ₽/шт

16

09420-04008

Ключ

187 ₽/шт

17

21111-44B10

Gear, primary drive (nt:33)

18

09140-22012

Гайка

6 330 ₽/шт

19

09164-22007

Шайба

3 680 ₽/шт

20

12111-31D00-0F0

Piston (105.00m

21

12140-44B10

Ring set

22

12151-44B00

Палец поршневой

5 249 ₽/шт

23

09381-26002

Стопорное кольцо

1 370 ₽/шт

24

12100-31D00-050

Piston kit (OS: 0.5)

24

12100-31D00-100

Piston kit (1,0)
