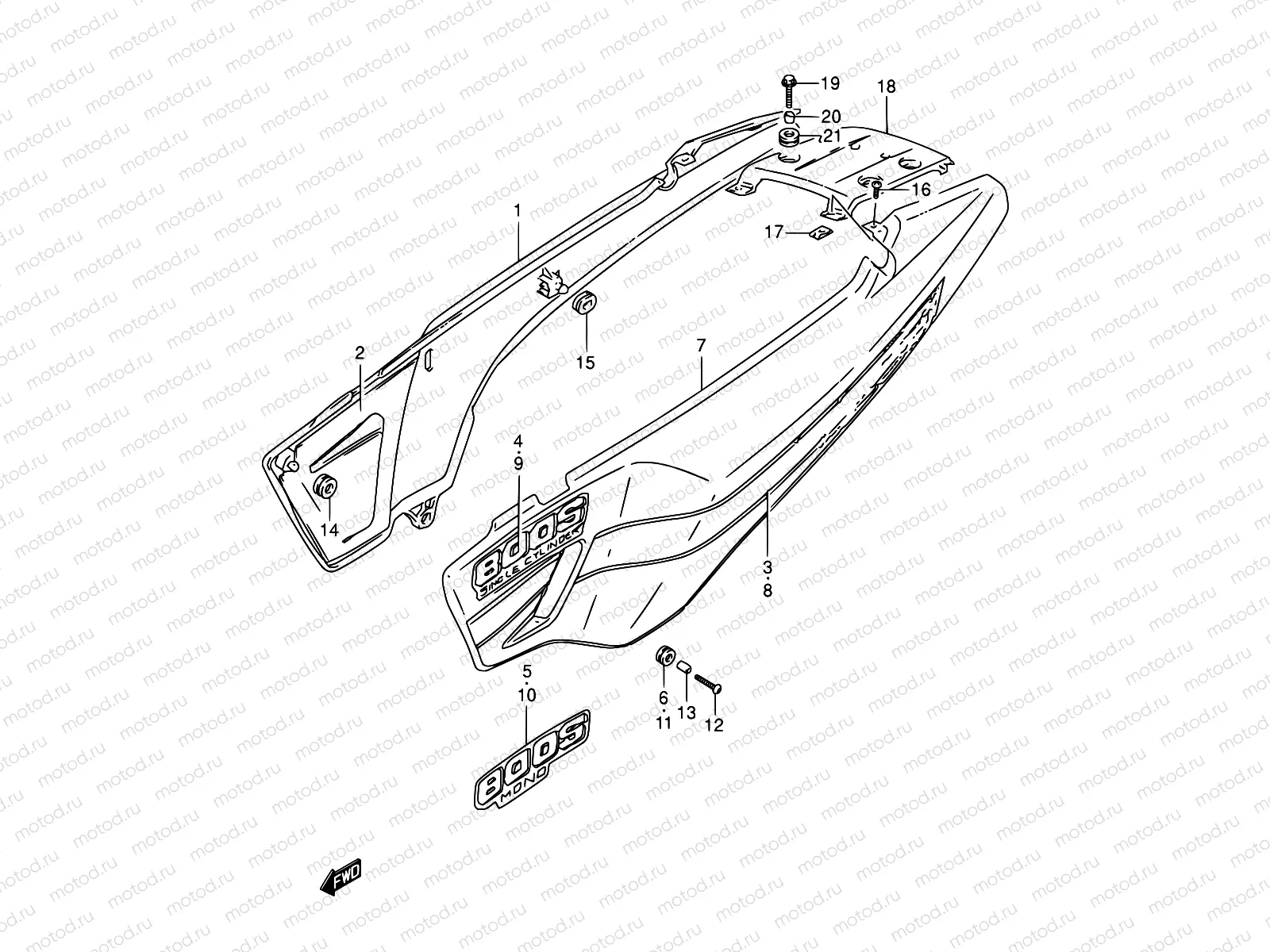

36 - FRAME COVER (MODEL M)

36 - FRAME COVER (MODEL M)
Например: 47166-31D00
1
47166-31D00
HEAT SHIELD,FRAME COVER,R
1
47111-31D00-12F
COVER,FRAME,R(BLUE)
41 055 ₽/шт
1
68130-31D00-1FA
Tape set, rh
1
68131-31D00-H49
Emblem
1
68130-31D00-1EZ
Tape set, rh
1
68131-31D00-H48
Emblem, lh
1
47111-31D00-33J
Cover,frame r
1
47110-31D10-12F
Cover, frame rh (blue)
1
47110-31D10-22P
Cover, frame rh (red)
2
47166-31D00
HEAT SHIELD,FRAME COVER,R
3
68130-31D00-1EZ
.tape set, rh
3
68130-31D00-1FA
.tape set, rh
4
68131-31D00-H48
.emblem, rh
4
68131-31D00-H49
Emblem
5
68131-31D10-H48
.emblem, rh
5
68131-31D10-H49
.emblem, rh
6
09320-09016
РЕЗИНКА
162 ₽/шт
7
68131-31D00-H49
Emblem
7
47211-31D00-12F
Cover,frame,l
7
68140-31D00-1FA
Tape set, lh
7
68131-31D00-H48
Emblem, lh
7
68140-31D00-1EZ
Tape set, lh
7
47211-31D00-33J
Cover,frame,l
7
47210-31D10-12F
Cover, frame lh (blue)
7
47210-31D10-22P
Cover, frame lh (red)
8
68140-31D00-1EZ
.tape set, lh
8
68140-31D00-1FA
.tape set, lh
9
68131-31D00-H48
.emblem, lh
9
68131-31D00-H49
Emblem
10
68131-31D10-H48
.emblem, lh
10
68131-31D10-H49
.emblem, lh
11
09320-09016
РЕЗИНКА
162 ₽/шт
12
09136-06081
Болт
82 ₽/шт
13
09180-06307
Кольцо/шайба
179 ₽/шт
14
09320-08509
Cushion(8X22X7)
210 ₽/шт
15
09320-08029
CUSHION
153 ₽/шт
16
03241-M0512-A
Vis
17
09148-05038
ГАЙКА
97 ₽/шт
18
47311-31D00-12F
Cover, frame center
18
47311-31D00-22P
Cover, frame center
19
09116-06147
Болт копрусный
162 ₽/шт
20
09180-08190
SPACER(8.5X12X12.5)
2 420 ₽/шт
21
09320-12031
САЙЛЕНТБЛОК
204 ₽/шт
