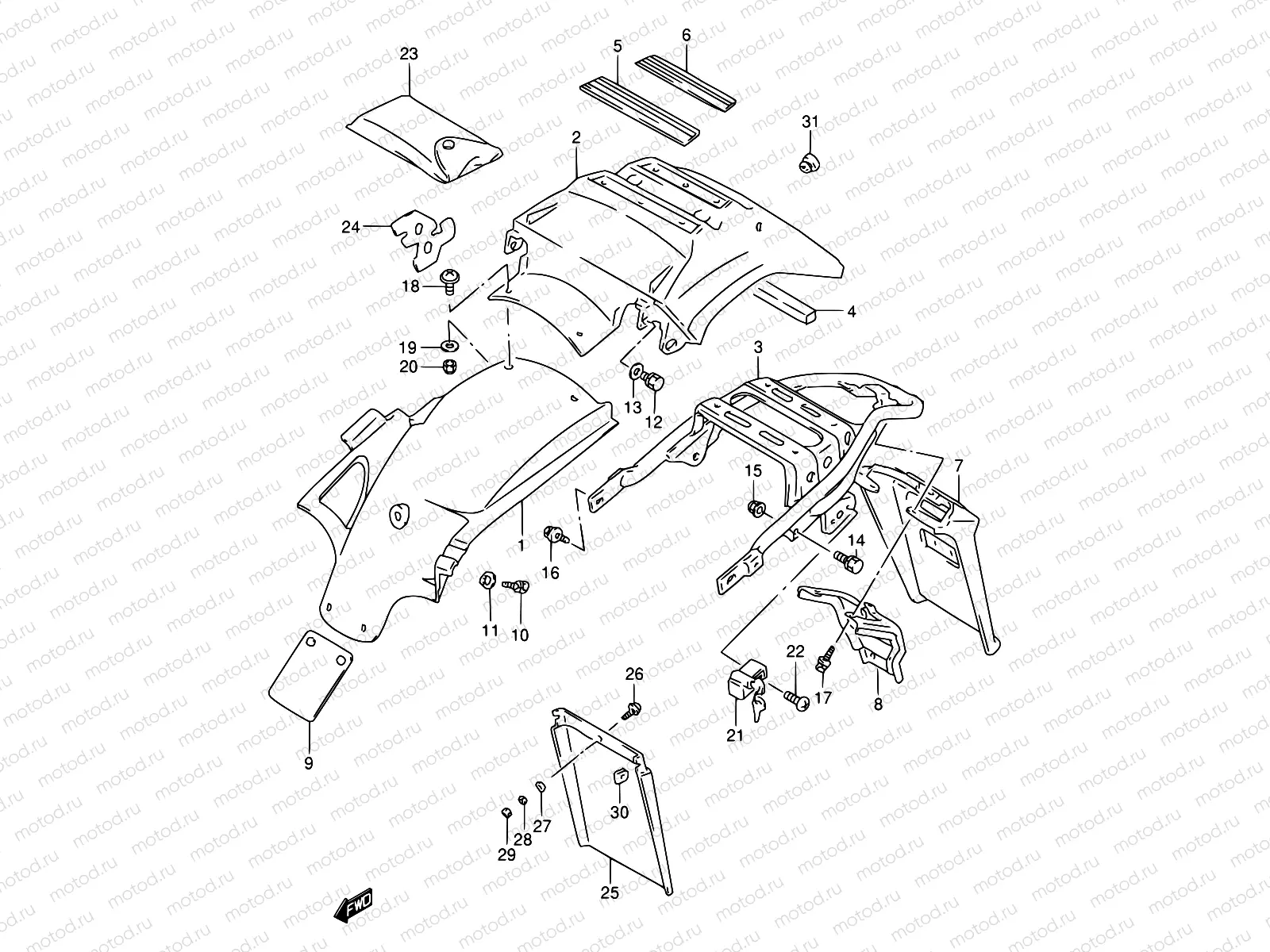

49 - REAR FENDER

49 - REAR FENDER
Например: 63112-12E10
1
63112-12E10
Body, rear fender front
2
63113-12E10-30H
Body,rear fende
2
63113-12E10-019
Body,rear fende
3
63120-12E10
REINF COMP,REAR FENDER
4
63192-12E00
Cushion, fender (l:125)
5
63193-12E00
Cushion, fender (l:166.2)
6
63193-12E10
Cushion, fender (l:149.5)
7
63311-03D01
Extension,rr fe
7
63311-03D11
Extension, rear fender
7
63311-03D30
EXTENSION,REAR FENDER
8
63320-03D03
Reinforcement,r
9
63411-13700
Mud guard,rr fe
10
01550-0612B
БОЛТ
81 ₽/шт
11
09169-06010
WASHER
211 ₽/шт
12
01570-0612A
Болт
85 ₽/шт
13
09169-06041
Шайба
85 ₽/шт
14
01570-0825A
БОЛТ
113 ₽/шт
15
08319-31087
Гайка
178 ₽/шт
16
01550-0816B
Болт крепёжный
97 ₽/шт
17
09116-06152
BOLT(6X20)
146 ₽/шт
18
09136-05035
Screw (5x16)
19
09160-05043
Шайба
102 ₽/шт
20
08319-21057
Гайка
97 ₽/шт
21
95700-41821
LOCK SET,HELMET
8 172 ₽/шт
22
09139-06089
Болт
1 520 ₽/шт
23
09800-21078
Tool assy
24
63116-12E01
Shield, rear fender
25
63331-03D00
Mud guard,rear
25
63331-03D30
MUD GUARD.REAR FENDER.REAR
26
02142-0516B
Болт
85 ₽/шт
27
09160-05037
Шайба
97 ₽/шт
28
08321-0105A
Пластина замка
81 ₽/шт
29
09140-05006
Гайка
1 330 ₽/шт
30
09148-05013
Гайка
97 ₽/шт
31
09250-12016
Cap(Od:20)
162 ₽/шт
