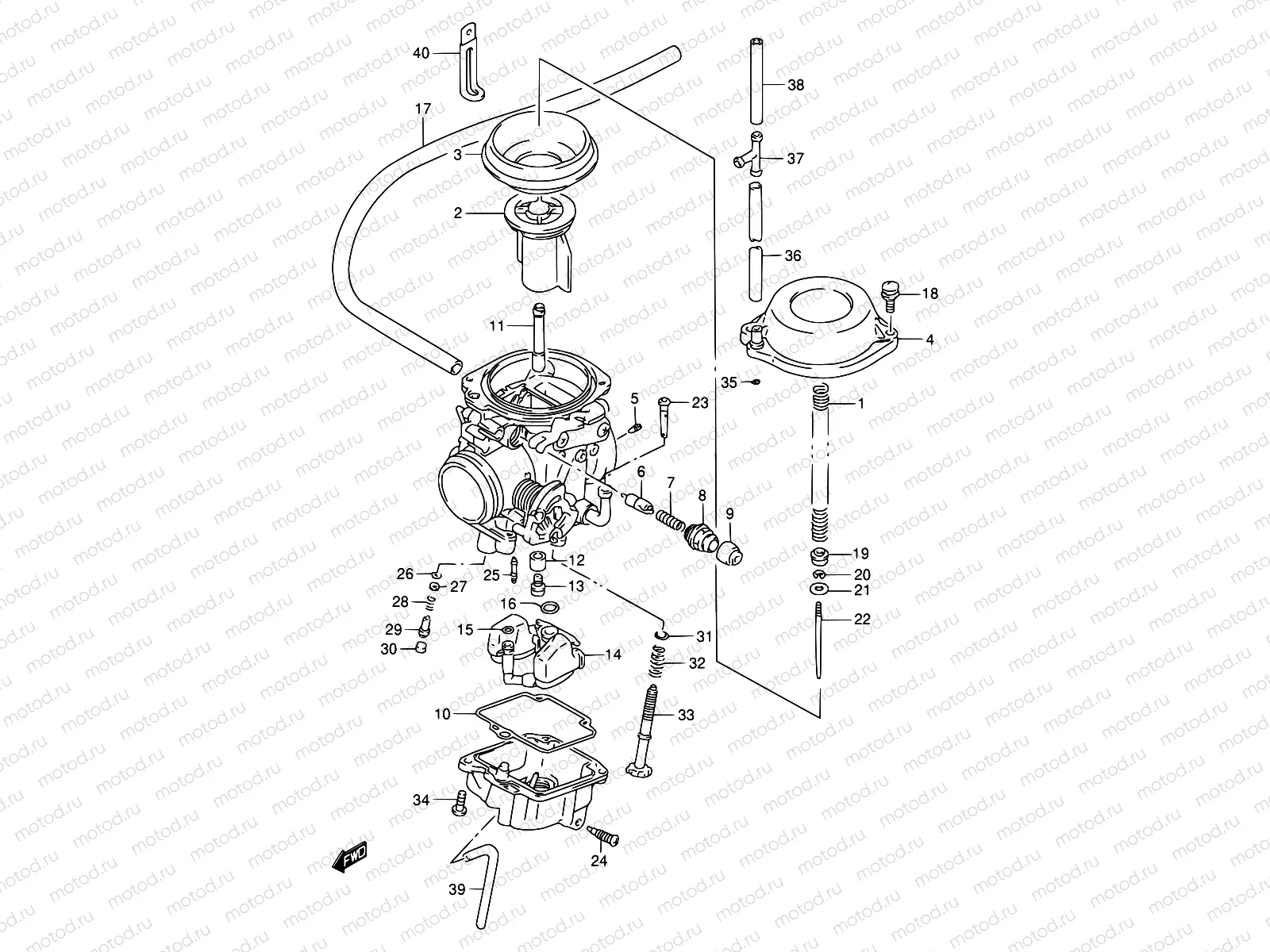

11A - CARBURETOR (E18)

11A - CARBURETOR (E18)
Например: 13200-12EB0
0
13200-12EB0
Carburettor
1
13417-17D00
Пружина
655 ₽/шт
2
13501-12D00
Valve,piston
3
13507-07D02
iaphragm
3 485 ₽/шт
4
13502-12D10
COVER,DIAPHRAGM
5
09493-28006
Жиклер (1.4)
1 122 ₽/шт
6
13411-12D00
PLUNGER
1 396 ₽/шт
7
13417-22010
Пружина
204 ₽/шт
8
13418-43410
HOLDER,GUIDE
888 ₽/шт
9
13681-04011
CAP
835 ₽/шт
10
13258-44B00
Прокладка крышки поплавковой камеры
767 ₽/шт
11
09494-00754
JET,NEEDLE(Y-2)
2 620 ₽/шт
12
13331-07D00
RING
1 309 ₽/шт
13
09491-27010
JET,MAIN(137.5)
805 ₽/шт
14
13250-12EH0
FLOAT/NEEDLE VALVE ASSY
6 412 ₽/шт
15
13278-47091
O Ring
210 ₽/шт
16
13374-35C00
КОЛЬЦО УПЛОТНИТЕЛЬНОЕ
275 ₽/шт
17
09354-65113-600
Cső (6.5x11.5x600)
18
02112-7516A
Болт
102 ₽/шт
19
13331-12D00
RING
348 ₽/шт
20
13394-31210
CLIP,NEEDLE
238 ₽/шт
21
13387-07D00
RING
459 ₽/шт
22
13383-12E00
Needle,jet
23
13236-12C00
FILTER
833 ₽/шт
24
13247-02340
Заглушка дренажная
258 ₽/шт
25
09492-52010
Жиклер (52.5)
1 650 ₽/шт
26
13295-29901
O-Ring, Pilot Air Screw
210 ₽/шт
27
13291-29900
Шайба
162 ₽/шт
28
13268-47070
Пружина
272 ₽/шт
29
13279-47070
Винт топливный
884 ₽/шт
30
13281-05A00
PLUG
170 ₽/шт
31
13427-38300
WASHER
170 ₽/шт
32
13271-24D00
Пружина
438 ₽/шт
33
13267-13D01
Регулятор
1 349 ₽/шт
34
13601-05148-XC0
Винт,5X14
211 ₽/шт
35
13278-02340
O RING
162 ₽/шт
36
09355-45857-600
Шланг
1 433 ₽/шт
37
09367-06002
Соединение 3-х стороннее
179 ₽/шт
38
09355-45857-600
Шланг
1 433 ₽/шт
39
09355-30001-600
Hose (7.4X3.2X135)
549 ₽/шт
40
09404-06039
Clamp(L:65)
194 ₽/шт
