Главная Каталог товаров SUZUKI EPC 125 cm³ - 349 cm³ SUZUKI UC 150 Epicuro SUZUKI UC150R Y Epicuro SUZUKI (VIN: JS1AY121) 48A - FRONT WHEEL (MODEL Y/K1)

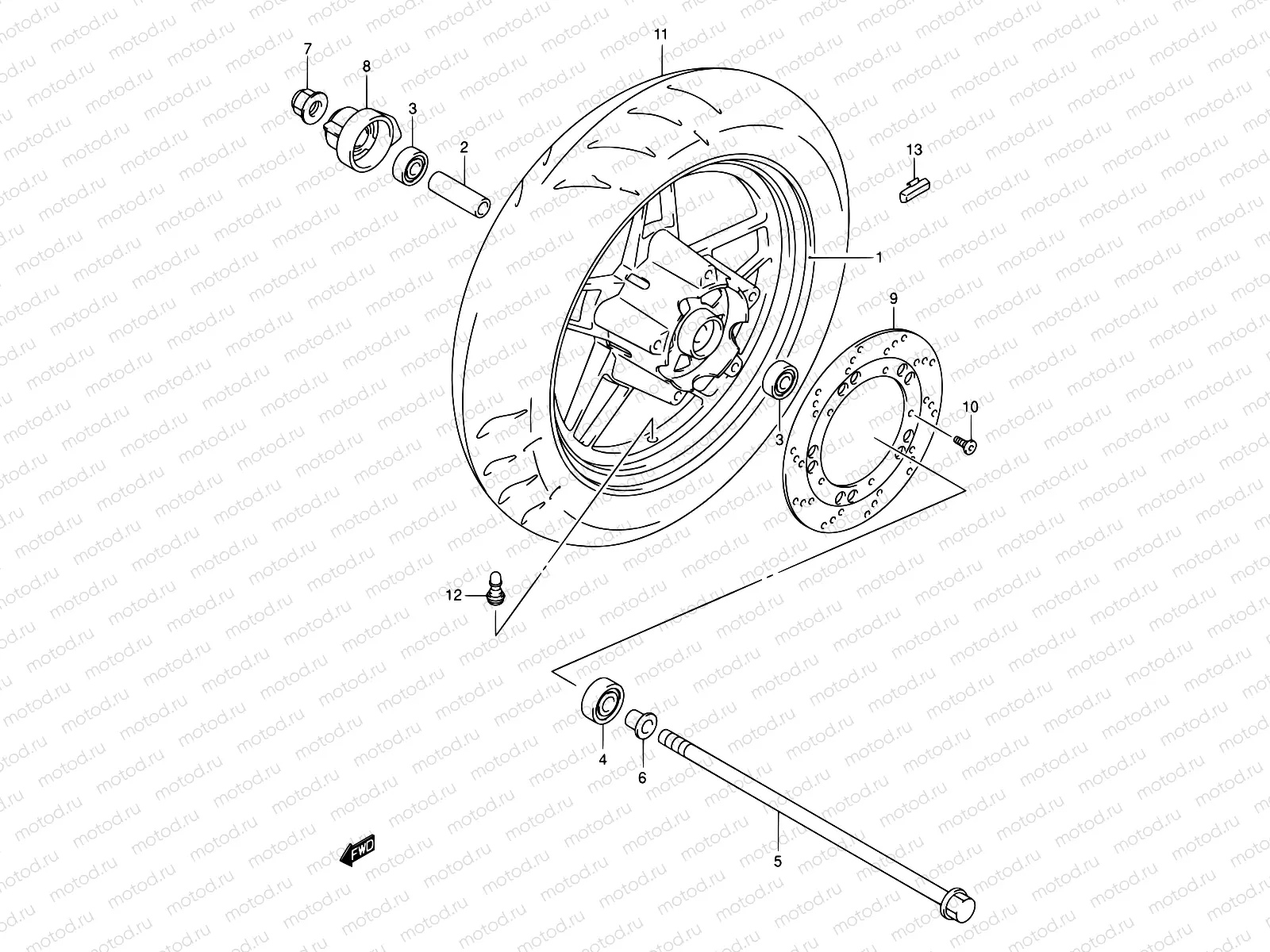

48A - FRONT WHEEL (MODEL Y/K1)

48A - FRONT WHEEL (MODEL Y/K1)

Например: 54111-21F10-12R

1

54111-21F10-12R

WHEEL,FRONT,12XMT2.50

2

09180-12148

SPACER(12.5X19X105.5)

7 590 ₽/шт

3

08133-62017

BEARING

1 139 ₽/шт

4

09285-18002

SEAL,OIL(18X32X7)

368 ₽/шт

5

54711-21F00

AXLE,FR

1 630 ₽/шт

6

64751-20400

SPACER,RR AXLE,L

684 ₽/шт

7

08319-3112A

Гайка

211 ₽/шт

8

54600-21F00

BOX ASSY,SPEEDOMETER GEAR

6 803 ₽/шт

9

59221-21F00

DISC,FR BRAKE

23 460 ₽/шт

10

09106-08155

BOLT(8X20)

2 390 ₽/шт

11

55110-21F10

BAND 100/90-12

12

43130-24A00

Ниппель

468 ₽/шт

13

43222-73H10-A05

Felni súly

13

43224-73H10-A05

BALANCER. WHEEL NO.2

13

43226-73H10-A05

BALANCER. WHEEL NO.3
