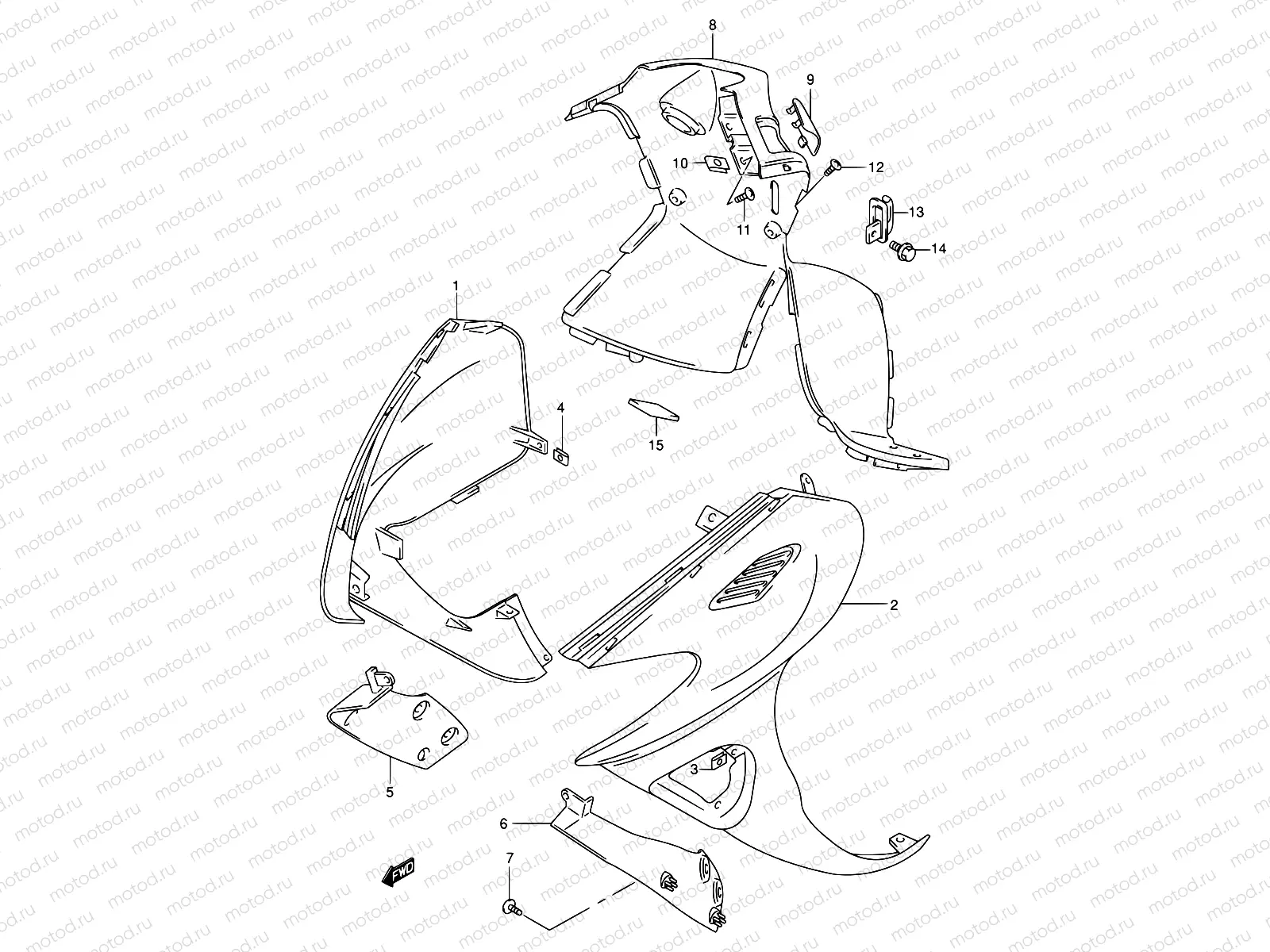

Главная Каталог товаров SUZUKI EPC 125 cm³ - 349 cm³ SUZUKI UC 150 Epicuro SUZUKI UC150R Y Epicuro SUZUKI (VIN: JS1AY121) 34A - SIDE LEG SHIELD (MODEL Y/K1)

34A - SIDE LEG SHIELD (MODEL Y/K1)

34A - SIDE LEG SHIELD (MODEL Y/K1)

Например: 48111-21F20-Y7H

1

48111-21F20-Y7H

SHIELD,LEG,R(BLUE)

16 930 ₽/шт

1

48111-21F20-Y7M

SHIELD,LEG,R(BLUE)

16 930 ₽/шт

1

48111-21F20-YD8

Shield,leg,r

2

48112-21F20-Y7H

SHIELD,LEG,L

16 930 ₽/шт

2

48112-21F20-Y7M

SHIELD,LEG,L

16 930 ₽/шт

2

48112-21F20-YD8

Shield, leg lh (silver)

3

09148-04020

NUT

1 410 ₽/шт

4

09148-05020

Гайка

97 ₽/шт

5

48138-21F00

SHIELD,LEG INNER,R

1 412 ₽/шт

6

48139-21F00

SHIELD,LEG INNER,L

1 412 ₽/шт

7

03541-0516B

Болт

81 ₽/шт

8

92111-21F00-Y0J

COVER,LEG SHIELD

20 528 ₽/шт

9

92112-21F00-Y0J

Lid,rsvr maint

10

09148-05020

Гайка

97 ₽/шт

11

03541-0516B

Болт

81 ₽/шт

12

02142-0612B

Винт

81 ₽/шт

13

92171-25E00-Y0J

HOOK,LEG SHIELD

739 ₽/шт

14

09116-06165

BOLT(6X16)

1 520 ₽/шт

15

63191-25C00

USHION

204 ₽/шт
