Главная Каталог товаров SUZUKI EPC 125 cm³ - 349 cm³ SUZUKI DR 250 SUZUKI DR250S R SUZUKI 47 - REAR FENDER

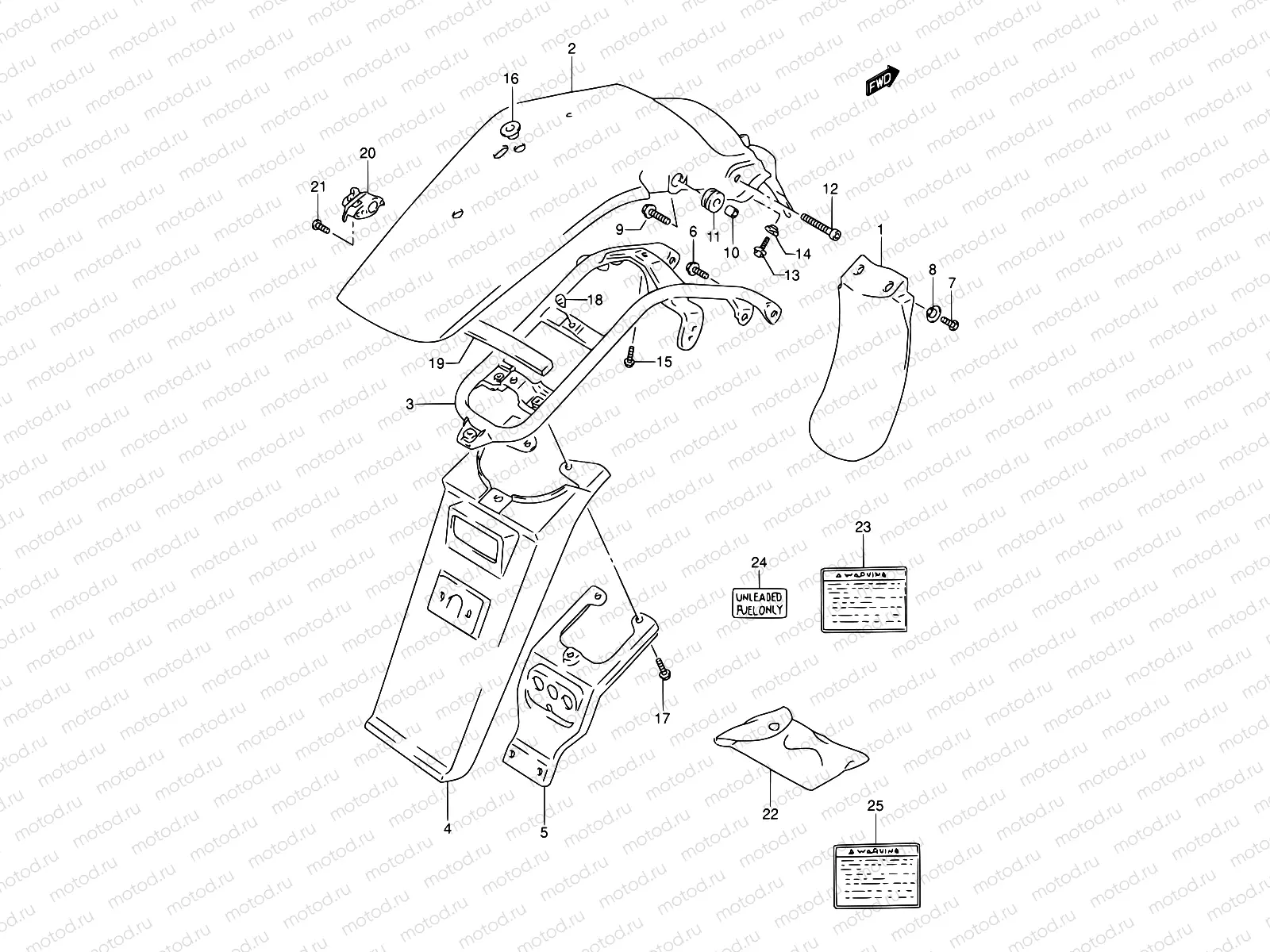

47 - REAR FENDER

47 - REAR FENDER

Например: 63112-14D00

1

63112-14D00

Body,rr fend,fr

2

63113-14D03-30H

Fender, rear

3

63120-14D11

Reinforcement, rear fender

4

63311-03D01

Extension,rr fe

5

63320-03D03

Reinforcement,r

6

09103-08291

Vis

7

02142-0612B

Винт

81 ₽/шт

8

09169-06045

Шайба

1 060 ₽/шт

9

09103-08292

Vis

10

09180-08187

Кольцо/шайба

162 ₽/шт

11

09320-12090

Cushion(11.8X25X7.5)

179 ₽/шт

12

09106-08105

БОЛТ

179 ₽/шт

13

01550-0616B

БОЛТ

81 ₽/шт

14

09169-06038

Шайба

1 210 ₽/шт

15

01580-0816A

Болт

97 ₽/шт

16

09160-14059

WASHER(14.5X26X1.6)

1 600 ₽/шт

17

01580-0616A

БОЛТ

102 ₽/шт

18

09321-06036

Cushion,license Plate

162 ₽/шт

19

63191-44A00

CUSHION(25X185X15)

473 ₽/шт

20

95700-03811

LOCK SET,HELMET

4 497 ₽/шт

21

02112-0512A

Болт

85 ₽/шт

22

09800-21078

Tool assy

23

68319-33E02

Label,general Warning

1 155 ₽/шт

23

68319-33E32

Label,general w

24

86932-73060

Ярлык топлива

162 ₽/шт

24

68623-01B01

Label,unleaded Fuel

221 ₽/шт

25

68393-14D10

Label, caution starting

25

68393-14D20

Label, caution starting

26

68332-14D00

Label, tire air pressure
