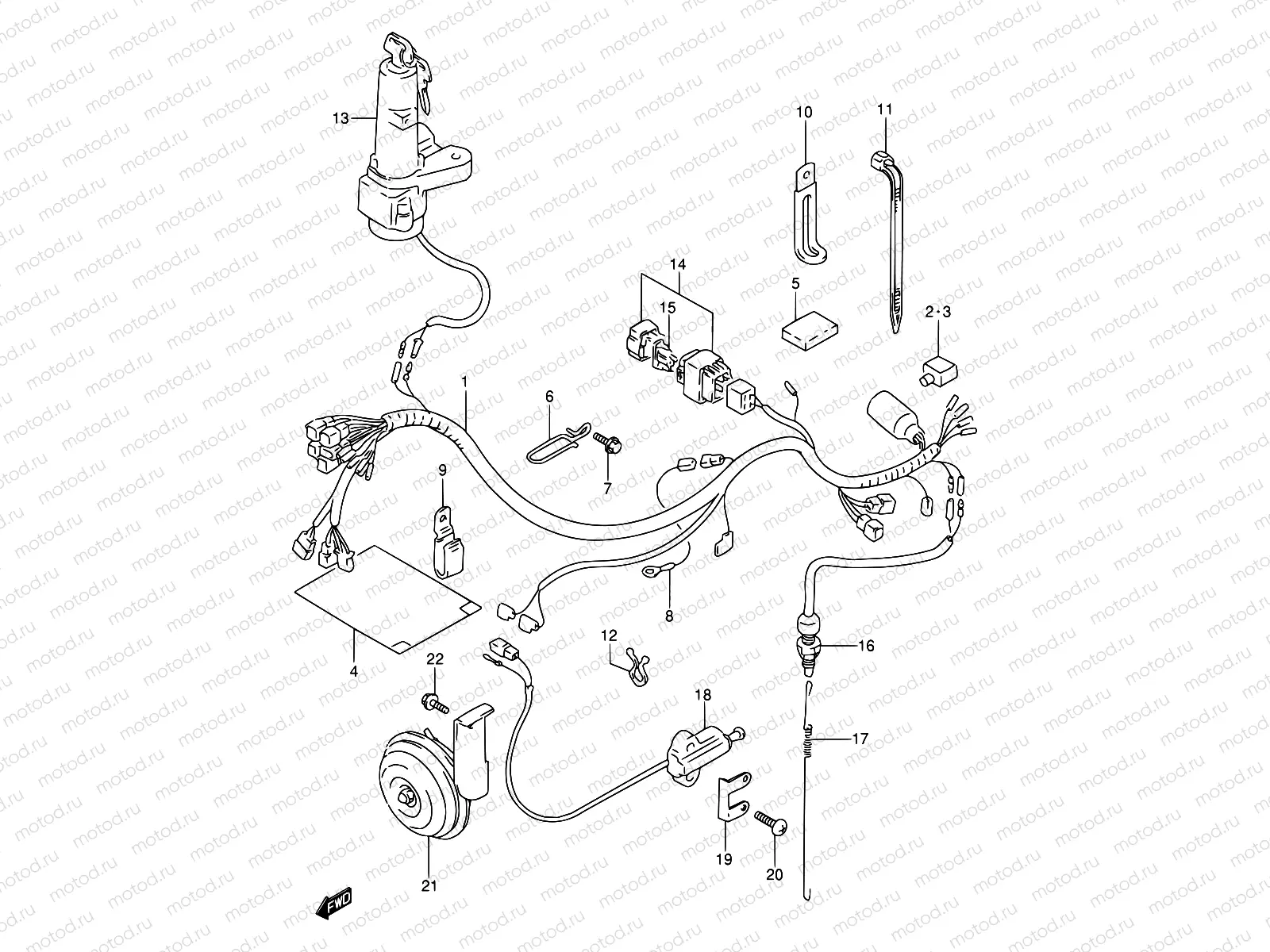

26 - WIRING HARNESS

26 - WIRING HARNESS
Например: 36610-14D21
1
36610-14D21
Harness, wiring
1
36610-14D50
Harness,wiring
2
33624-03D00
OP
3
33624-03A00
CAP,BATTERY PLUS TERMINAL
348 ₽/шт
4
36618-15D21
Cover,wiring Harness
969 ₽/шт
5
36920-14D00
PROTECTOR,WIRING HARNESS
387 ₽/шт
6
36619-15D11
GUIDE,WIRING HARNESS
1 122 ₽/шт
7
01550-0610B
Болт
85 ₽/шт
8
36851-05D00
WIRE,REGULATOR EARTH LEAD
387 ₽/шт
9
09403-06329
Clamp
2 030 ₽/шт
10
09404-06039
Clamp(L:65)
194 ₽/шт
10
09404-08420
Струбцина L:137
221 ₽/шт
10
09404-08212
Clamp
129 ₽/шт
11
09407-02401
Clamp
11
09407-14407
ЗАЖИМ
221 ₽/шт
11
09407-14403
КЛЕММА
221 ₽/шт
11
09407-18402
Струбцина (L:165)
211 ₽/шт
11
09407-25401
Хомут
221 ₽/шт
12
09408-00012
Проводка
1 210 ₽/шт
13
37110-03D01
Замок зажигания
7 912 ₽/шт
14
36740-04701
BOX ASSY,FUSE
2 635 ₽/шт
15
09481-10015-025
Fusible (15A)
16
37740-14D00
Переключатель
1 806 ₽/шт
17
09443-06080
SPRING
3 750 ₽/шт
18
37840-12X51
Switch Assy,side Stand
6 412 ₽/шт
19
37841-14D00
Протектор
606 ₽/шт
20
02142-0620B
Болт
1 060 ₽/шт
21
38500-14D02
HORN
22
01550-0616B
БОЛТ
81 ₽/шт
