Главная Каталог товаров SUZUKI EPC 700 cm³ - 1099 cm³ SUZUKI GSX 750 SUZUKI GSX750F V SUZUKI (VIN: GR78A) 47 - FRONT DAMPER

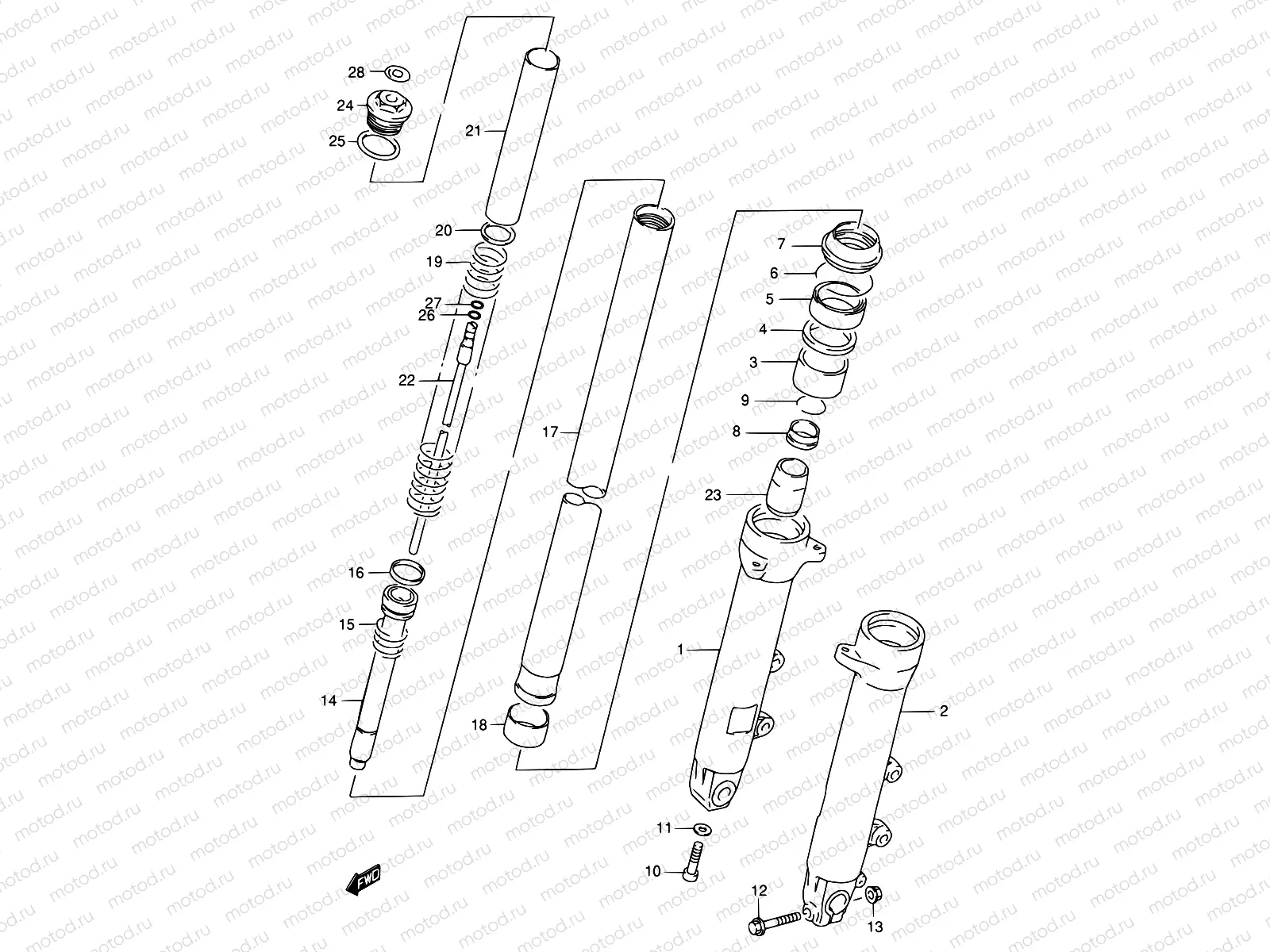

47 - FRONT DAMPER

47 - FRONT DAMPER
Например: 51103-20C30
0
51103-20C30
Damper assy, front fork rh
0
51104-20C30
Damper assy, front fork lh
0
51103-20C20-13L
Damper assy, front fork rh (silver)
0
51104-20C20-13L
Damper assy, front fork lh (silver)
1
51130-20C20-13L
.tube, outer rh (silver)
2
51140-20C20-13L
Tube,outer,l
3
51152-48B31
Направляющая втулка
2 380 ₽/шт
4
51168-38B00
SPACER,SEAL
459 ₽/шт
5
51153-08D00
Сальник
1 195 ₽/шт
6
51556-38B00
Кольцо
243 ₽/шт
7
51571-47D50
Уплотнение
804 ₽/шт
8
51197-20C10
.valve, oil lock piece
9
51133-28E00
Ring,stopper
10
51147-48130
BOLT(8X27)
221 ₽/шт
11
51148-36011
GASKET
210 ₽/шт
12
01550-08507
БОЛТ
2 070 ₽/шт
13
08316-10087
ГАЙКА
82 ₽/шт
14
51194-20C20
.pipe, seat under
15
51177-48B31
Пружина
275 ₽/шт
16
51196-19C00
Кольцо поршневое
485 ₽/шт
17
51110-20C20
.tube, inner
18
51121-48B31
Скользящая втулка
2 180 ₽/шт
19
51171-20C20
SPRING,FRONT
20
51192-19C00
JOINT,SPRING
194 ₽/шт
21
51176-34C00
SPACER,SPRING
669 ₽/шт
22
52111-20C20
Rod, inner
23
51195-20C30
.piece, oil lock
23
51195-48B31
PIECE,OIL LOCK
1 173 ₽/шт
24
51351-20C20
BOLT,FORK
3 871 ₽/шт
25
51117-12C00
O RING
194 ₽/шт
26
09280-06005
Кольцо уплотнительное
129 ₽/шт
27
51169-20C20
Кольцо
301 ₽/шт
28
51149-20C20
LABEL,S-H
387 ₽/шт
