Главная Каталог товаров SUZUKI EPC 700 cm³ - 1099 cm³ SUZUKI GSX 750 SUZUKI GSX750F V SUZUKI (VIN: GR78A) 43 - COWLING BODY

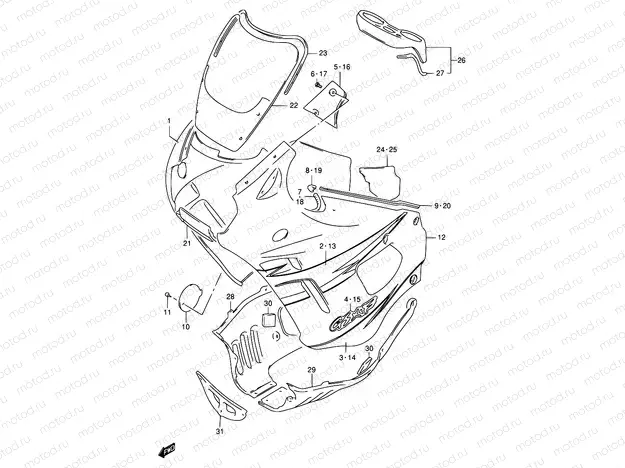

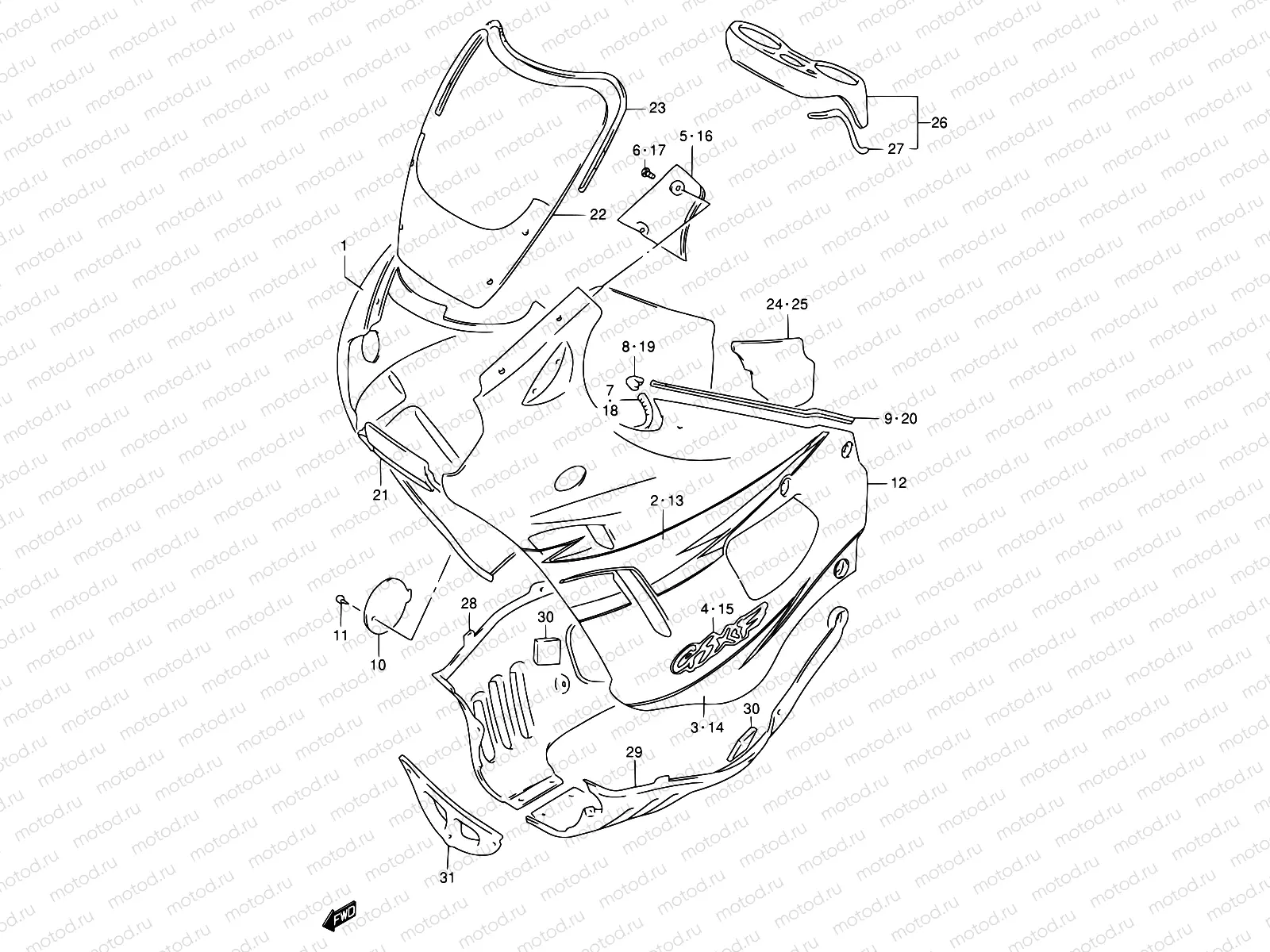

43 - COWLING BODY

43 - COWLING BODY

Например: 94401-21CN0-33J

1

94401-21CN0-33J

over assy,cowl

1

94401-21CN0-22U

over, cowling rh (maroon)

2

68685-21C10-G2T

APE,BODY COWL SIDE UPPER,R

2

68685-21C10-G2U

TAPE,BODY COWL SIDE UPPER,R

3

68686-21C20-G2N

TAPE,BODY COWL SIDE LWR,R

5 865 ₽/шт

3

68686-21C20-G2P

TAPE,BODY COWL SIDE LWR,R

5 865 ₽/шт

4

68681-21C50-G2R

.emblem

4

68681-21C50-G2S

EMBLEM,BODY COWL SIDE

5

94433-19C01-33J

over,meter r.s

5

94433-19C01-22U

OVER,METER SIDE,R

6

03541-0410A

Болт

85 ₽/шт

7

94631-49310

MOLD,COWLING

8 835 ₽/шт

8

94438-19C00

Joint

9

94635-19C00

MOLDING

918 ₽/шт

10

94435-19C01-33J

LID,OIL

2 463 ₽/шт

10

94435-19C01

Lid,oil(non pai

11

09139-06030

Винт (6X16)

194 ₽/шт

12

94402-21CN0-33J

over cowling l

12

94402-21CN0-22U

over assy,cowl

13

68695-21C10-G2T

.tape, side upper lh

13

68695-21C10-G2U

.tape, side upper lh

14

68696-21C20-G2N

Tape,body cowl

14

68696-21C20-G2P

.tape, side lower lh

15

68681-21C50-G2R

,emblem

15

68681-21C50-G2S

EMBLEM,BODY COWL SIDE

16

94443-19C01-33J

over,meter l.s

16

94443-19C01-22U

.cover, meter lh (maroon)

17

03541-0410A

Болт

85 ₽/шт

18

94631-49310

MOLD,COWLING

8 835 ₽/шт

19

94438-19C00

Joint

20

94635-19C00

MOLDING

918 ₽/шт

21

94421-19C01-33J

PANEL,COWLING CTR

3 324 ₽/шт

21

94421-19C01-22U

PANEL,COWLING,CENTER

22

94610-20C60

Screen,wind

23

94631-18D01

Molding,windscr

24

94576-20C00

ushion

25

94586-20C00

RUBBER

26

94420-20C02

over cmp,meter

27

94635-20C00

MOLDING,METER COVER

28

94471-19C00

OVER, UNDER,RH (CHARCOAL)

28

94471-19C00-33J

over under rh

29

94481-19C00-17U

over,cwl.,un,l

29

94481-19C00-33J

OVER,COWLING UNDER,L

17 243 ₽/шт

30

94915-44E00

CUSHION UNER COWL R

578 ₽/шт

31

94475-19C01

over cowling
