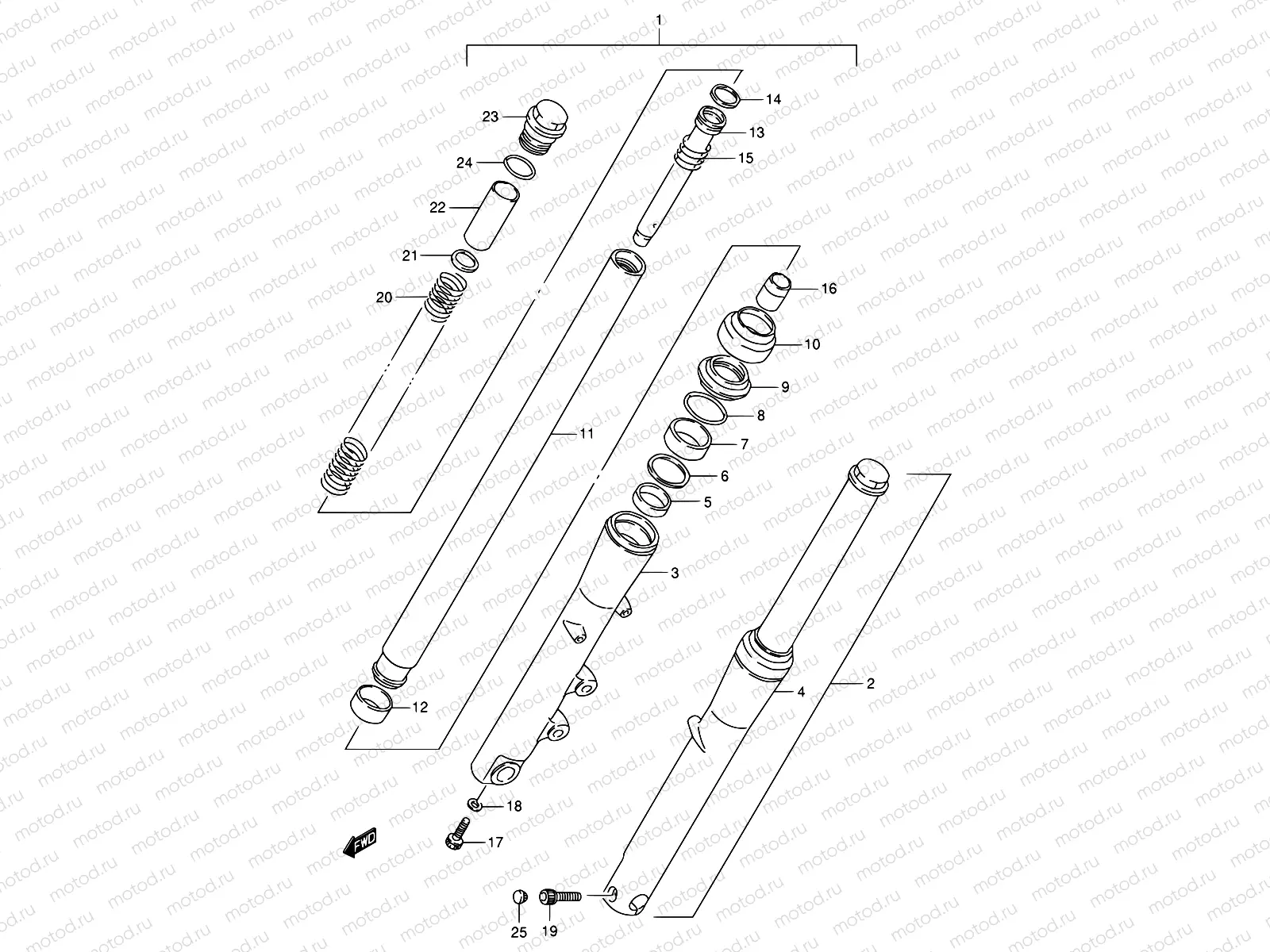

46A - FRONT FORK (MODEL T/V)

46A - FRONT FORK (MODEL T/V)
Например: 51103-39A41
1
51103-39A41
Damper assy,r
2
51104-39A41
Damper assy,l
3
51131-39A00
Tube,fork rh ou
4
51141-39A00
Tube,fork lh ou
5
51152-39A40
Направляющая втулка
1 508 ₽/шт
6
51168-39A00
SPACER,SEAL
528 ₽/шт
7
51153-19D00
Сальник
2 550 ₽/шт
8
51156-32B00
Кольцо
454 ₽/шт
9
51173-19D00
SEAL,DUST
1 479 ₽/шт
10
51572-38B00
COVER,CASE
2 913 ₽/шт
11
51110-39A41
TUBE,INNER
34 799 ₽/шт
12
51121-39A40
Скользящая втулка
2 040 ₽/шт
13
51146-39A00
Pipe,seat
14
51196-32B00
Кольцо поршневое
559 ₽/шт
15
51177-32B00
Пружина
669 ₽/шт
16
51195-38B00
PIECE,OIL LOCK
2 014 ₽/шт
17
51147-48130
BOLT(8X27)
221 ₽/шт
18
51148-36011
GASKET
210 ₽/шт
19
07130-08357
Болт
153 ₽/шт
20
51171-39A00
Пружина
5 396 ₽/шт
21
51172-32B00
WASHER,SPRING
422 ₽/шт
22
51176-39A00
Прокладка
864 ₽/шт
23
51351-39A00
BOLT,FORK
5 709 ₽/шт
24
51117-39A00
O RING
238 ₽/шт
25
09250-06009
Крышка
194 ₽/шт
