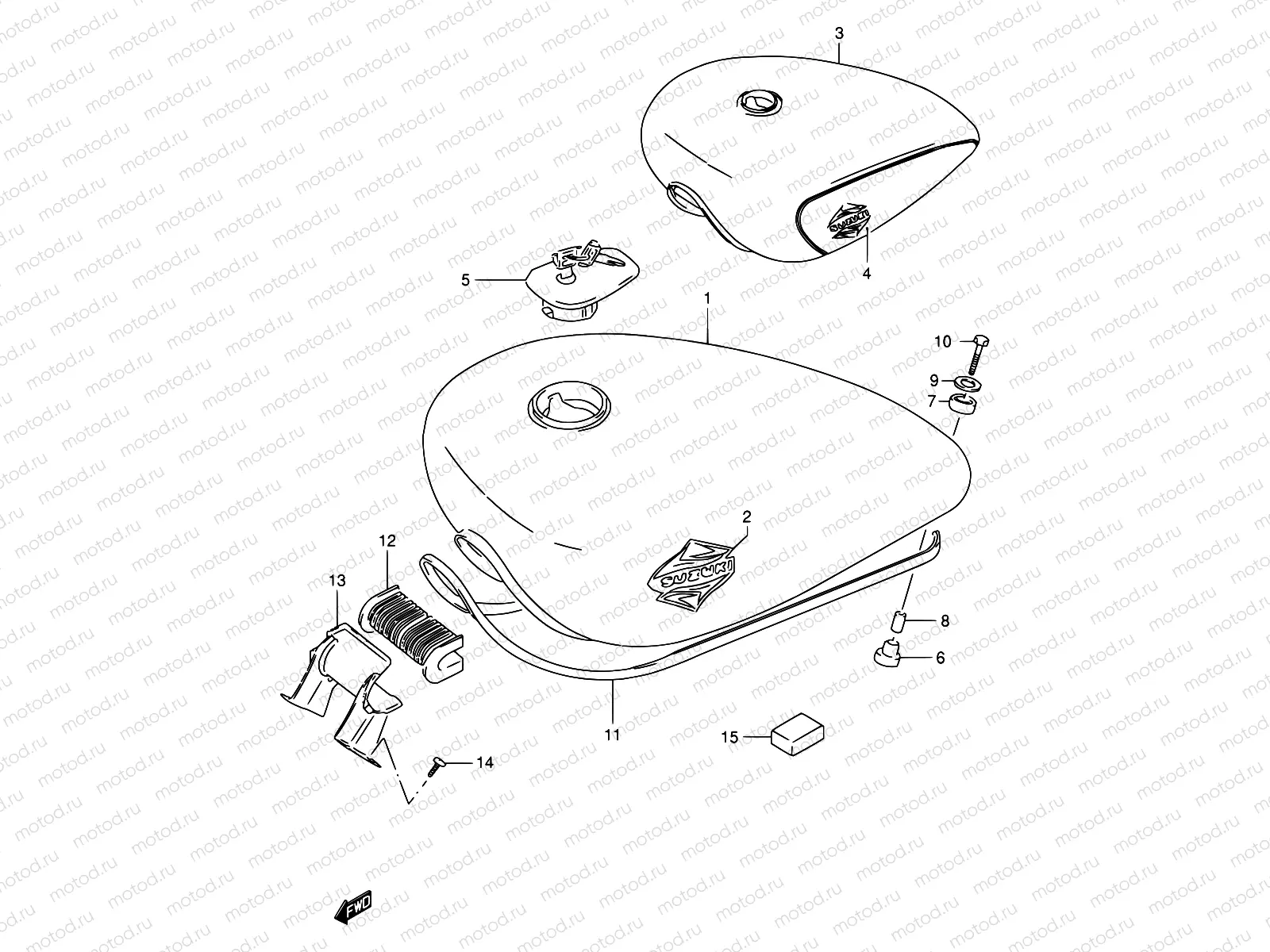

37A - FUEL TANK (MODEL S/T)

37A - FUEL TANK (MODEL S/T)
Например: 44100-39AC1-2BX
3
44100-39AC1-2BX
TANK ASSY,FUEL(BROWN)
83 776 ₽/шт
3
44100-39AC1-1ZV
Fuel tank (Green)
4
68110-38B00-E6Y
.tape set, fuel tank
4
68110-38B00-E7A
utocollant (Fuel tank)
5
44200-38820
CAP SET,FUEL TANK
9 384 ₽/шт
5
44200-38851
Cap set,tank
5
997SO-38870
6
09320-10038
CUSHION
115 ₽/шт
7
09320-14013
Валик топливного бака
221 ₽/шт
8
09180-06273
Кольцо/шайба
2 460 ₽/шт
9
09160-06501
Шайба
102 ₽/шт
10
01500-0635A
Болт
1 330 ₽/шт
11
68241-04X50-00B
MOLDING
1 696 ₽/шт
12
44511-38A01
CUSHION,FUEL TANK FR
790 ₽/шт
13
44250-38A01-019
Кронштейн
6 803 ₽/шт
14
02112-7616A
Болт
102 ₽/шт
15
56314-48B10
CUSHION
210 ₽/шт
