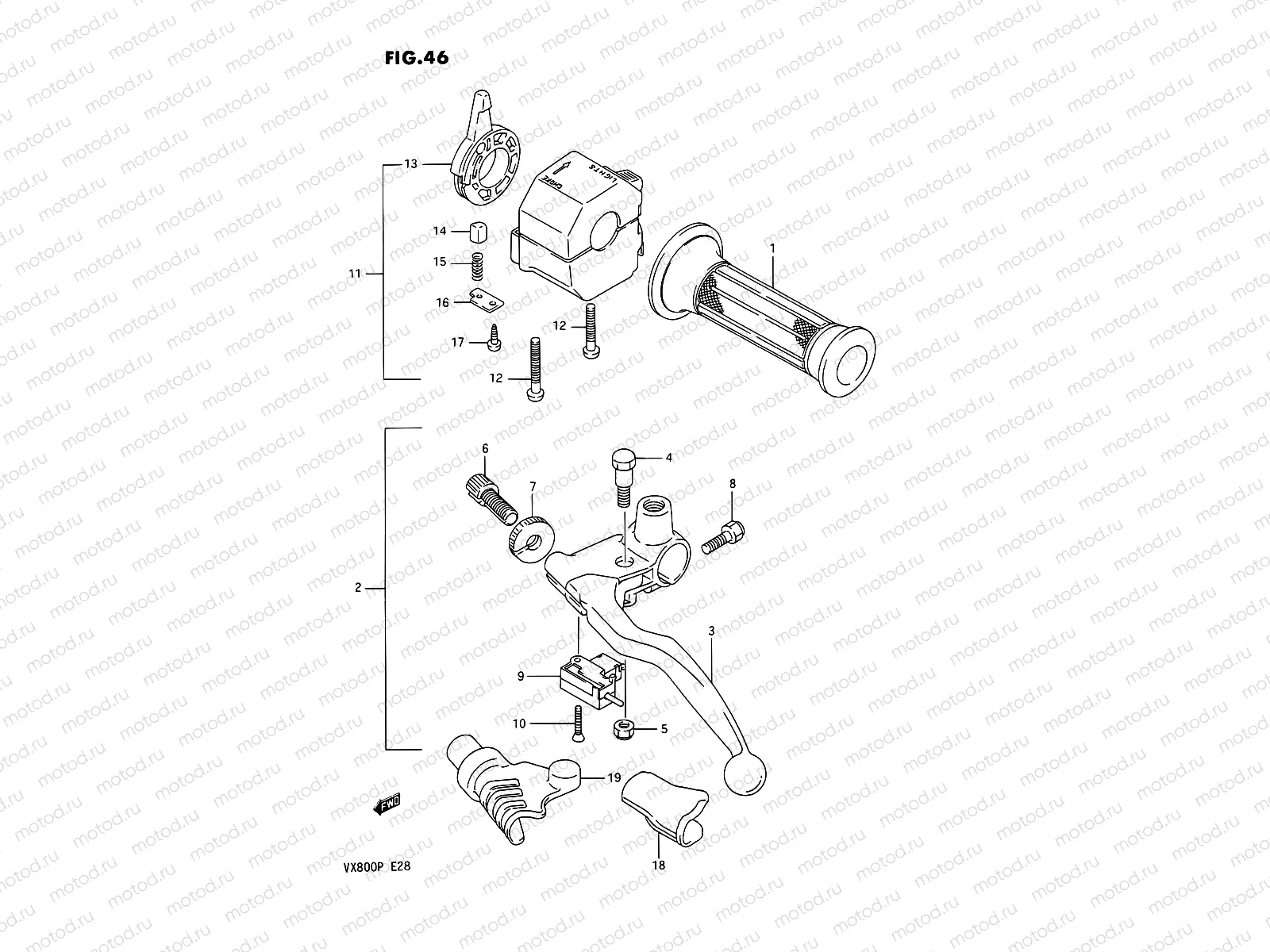

46 - LEFT HANDLE SWITCH

46 - LEFT HANDLE SWITCH
Например: 57211-49500
1
57211-49500
Рукоятка, левая
2 635 ₽/шт
2
57500-45C30
Lever assy, clutch (coronet silver)
3
57620-45C00
Рычаг сцепления
3 715 ₽/шт
4
57431-21D11
BOLT,LEVER PIVOT
544 ₽/шт
5
08319-2106A
Гайка
114 ₽/шт
6
57441-45C01
Adjuster,wire
731 ₽/шт
7
57442-45C01
Nut,lock
708 ₽/шт
8
01547-0620B
БОЛТ
81 ₽/шт
9
57560-05A00
ПЕРЕКЛЮЧАТЕЛЬ
816 ₽/шт
10
02132-03208
.screw
11
37400-45C00
Switch assy, handle,lh
12
02112-0545B
Болт
221 ₽/шт
13
37481-30B01
Lever,choke
14
37482-30B00
Piece,slide
15
37483-30B00
Пружина
859 ₽/шт
16
37486-30B00
Plate
17
03511-0412A
Болт
81 ₽/шт
19
57661-45C01
over,clutch Lever
903 ₽/шт
