Главная Каталог товаров SUZUKI EPC 700 cm³ - 1099 cm³ SUZUKI VX 800 SUZUKI VX800 P SUZUKI 37 - SEAT

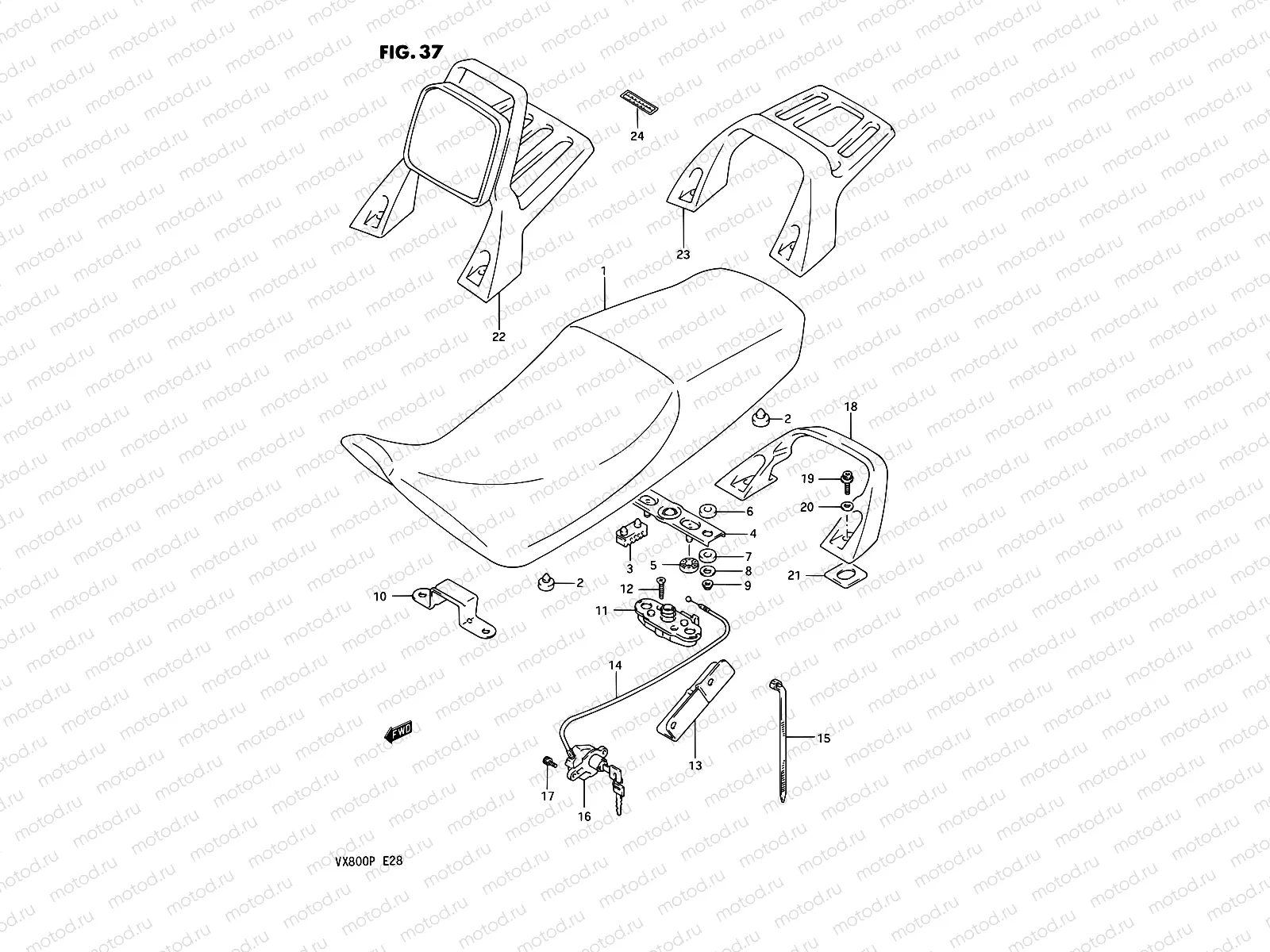

37 - SEAT

37 - SEAT

Например: 45100-45C00-58R

1

45100-45C00-58R

Seat set (black)

2

09321-10002

CUSHION

162 ₽/шт

3

45149-31300

CUSHION,SEAT(40X20X15)

510 ₽/шт

4

45215-22A00

STRIKER,SEAT LOCK

2 326 ₽/шт

5

45213-13601

CUSHION,SEAT LOCK(10X22X6)

194 ₽/шт

6

45126-41B00

CUSHION,UPR

164 ₽/шт

7

45127-41B00

CUSHION,LWR

164 ₽/шт

8

08212-06201

Шайба

81 ₽/шт

9

08319-31067

Гайка

153 ₽/шт

10

45119-45C00

Plate,seat fr

11

45220-47H00

BRACKET,SEAT SUPPORT

7 390 ₽/шт

12

02122-0630B

Болт

1 250 ₽/шт

13

45288-45C00

Plate, seat lock cable

14

45280-45C00

able,seat lock

15

09407-18402

Струбцина (L:165)

211 ₽/шт

16

45700-19841

Cap set,seat

17

09106-06075

БОЛТ

1 450 ₽/шт

18

46211-45C01-33J

Handle,pillion

18

46211-45C01-22U

Handle,pillion

19

07130-10307

Болт

2 620 ₽/шт

20

08322-0110B

Шайба

85 ₽/шт

21

47161-45C00

ushion

22

46300-45812-23S

Carrier set,spo

23

46300-45822-23S

portcarrierset

24

68391-14D00

.label, warning

Узлы для VX800 P SUZUKI

1 - CYLINDER HEAD (FRONT)

1 - CYLINDER HEAD (FRONT)

2 - CYLINDER HEAD (REAR)

2 - CYLINDER HEAD (REAR)

5 - CRANKCASE COVER

5 - CRANKCASE COVER

7 - STARTER CLUTCH

7 - STARTER CLUTCH

8 - CAMSHAFT - VALVE

8 - CAMSHAFT - VALVE

10 - CARBURETOR (FRONT)

10 - CARBURETOR (FRONT)

11 - CARBURETOR (REAR)

11 - CARBURETOR (REAR)

12 - AIR CLEANER (FRONT)

12 - AIR CLEANER (FRONT)

13 - AIR CLEANER (REAR)

13 - AIR CLEANER (REAR)

15 - OIL PUMP - FUEL PUMP

15 - OIL PUMP - FUEL PUMP

16 - WATER PUMP

16 - WATER PUMP

19 - TRANSMISSION

19 - TRANSMISSION

20 - SECONDARY DRIVE GEAR

20 - SECONDARY DRIVE GEAR

21 - GEAR SHIFTING

21 - GEAR SHIFTING

22 - PROPELLER SHAFT - FINAL DRIVE GEAR

22 - PROPELLER SHAFT - FINAL DRIVE GEAR

23 - STARTING MOTOR

23 - STARTING MOTOR

26 - ELECTRICAL

26 - ELECTRICAL

27 - SPEEDOMETER - TACHOMETER

27 - SPEEDOMETER - TACHOMETER

28A - HEADLAMP (MODEL P)

28A - HEADLAMP (MODEL P)

29 - TURN SIGNAL LAMP

29 - TURN SIGNAL LAMP

30 - REAR COMBINATION LAMP

30 - REAR COMBINATION LAMP

31 - WIRING HARNESS

31 - WIRING HARNESS

45 - RIGHT HANDLE SWITCH

45 - RIGHT HANDLE SWITCH

46 - LEFT HANDLE SWITCH

46 - LEFT HANDLE SWITCH

33 - STAND - REAR BRAKE

33 - STAND - REAR BRAKE

38 - FRAME COVER

38 - FRAME COVER

40 - STEERING STEM

40 - STEERING STEM

41 - HEADLAMP HOUSING

41 - HEADLAMP HOUSING

42 - FRONT FENDER

42 - FRONT FENDER

49 - REAR SWINGING ARM

49 - REAR SWINGING ARM

50 - REAR FENDER - LABEL

50 - REAR FENDER - LABEL

54 - COWLING (OPTIONAL)

54 - COWLING (OPTIONAL)

39 - FRONT DAMPER

39 - FRONT DAMPER

43 - FRONT WHEEL

43 - FRONT WHEEL

47 - FRONT CALIPER

47 - FRONT CALIPER

48A - FRONT MASTER CYLINDER (MODEL P)

48A - FRONT MASTER CYLINDER (MODEL P)

51 - REAR WHEEL

51 - REAR WHEEL

52A - REAR CALIPER (MODEL P)

52A - REAR CALIPER (MODEL P)

53 - REAR MASTER CYLINDER

53 - REAR MASTER CYLINDER
