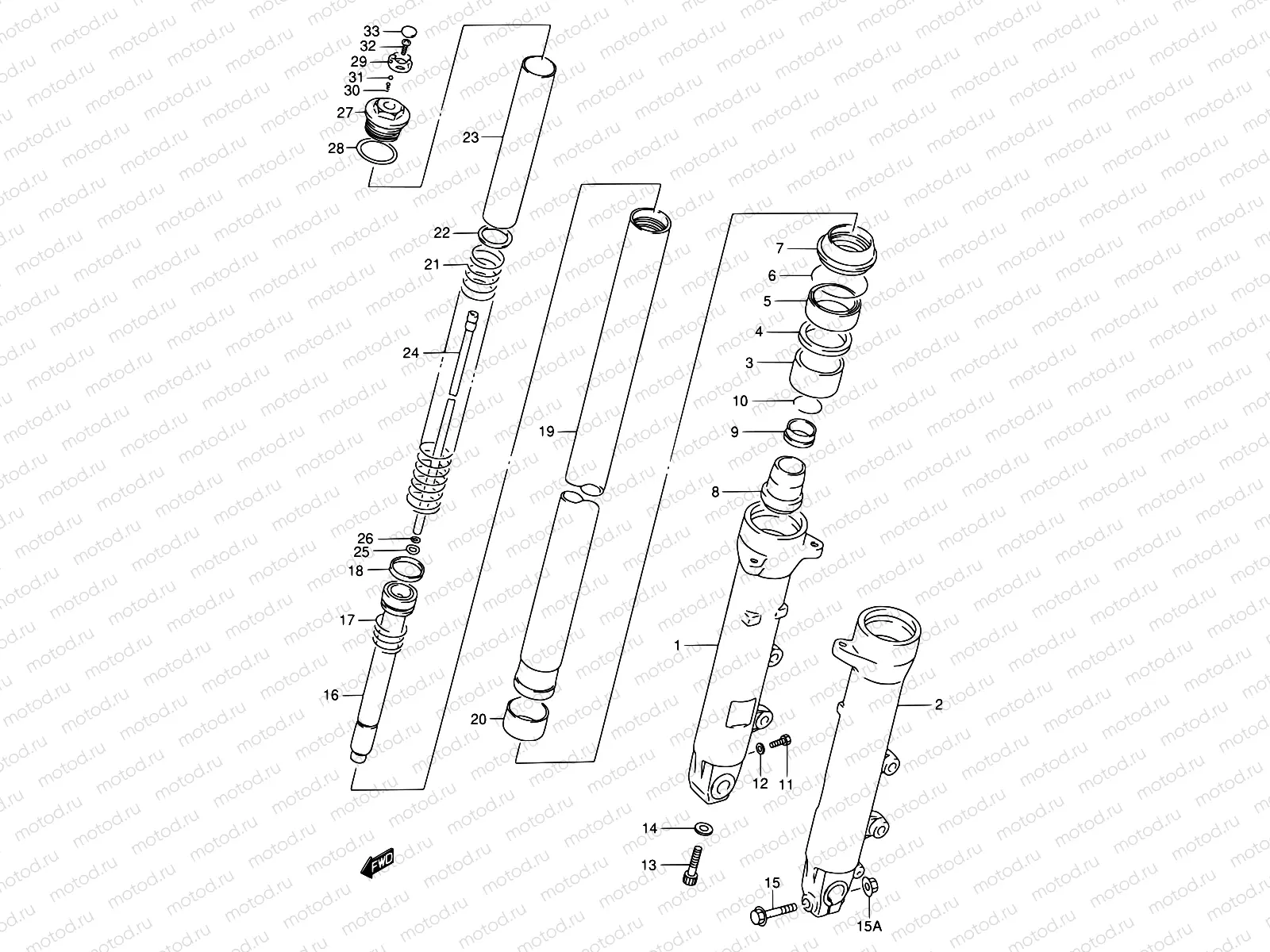

45A - FRONT DAMPER (MODEL S/T)

45A - FRONT DAMPER (MODEL S/T)
Например: 51103-20C00-13L
0
51103-20C00-13L
Damper assy, rh (silver)
0
51103-20C10-13L
Damper assy, rh (silver)
0
51104-20C00-13L
Damper assy, lh (silver)
0
51104-20C10-13L
Damper assy, lh (silver)
1
51130-19C10-13L
TUBE,OUTER,R
36 168 ₽/шт
2
51140-19C10-13L
Tube,outer l
3
51152-48B31
Направляющая втулка
2 380 ₽/шт
4
51168-38B00
SPACER,SEAL
459 ₽/шт
5
51153-08D00
Сальник
1 195 ₽/шт
6
51556-38B00
Кольцо
243 ₽/шт
7
51173-15D00
UST SEAL
1 340 ₽/шт
8
51195-20C10
PIECE,OIL LOCK
9
51197-20C10
.valve, oil lock piece
10
51133-28E00
Ring,stopper
11
09100-06011
Болт цепи
1 250 ₽/шт
12
51183-31030
Прокладка
210 ₽/шт
13
51147-48130
BOLT(8X27)
221 ₽/шт
14
51148-36011
GASKET
210 ₽/шт
15
01550-08507
БОЛТ
2 070 ₽/шт
15
08316-10087
ГАЙКА
82 ₽/шт
16
51194-20C00
.pipe, seat under
16
51194-20C10
.pipe, seat under
17
51177-48B31
Пружина
275 ₽/шт
18
51196-19C00
Кольцо поршневое
485 ₽/шт
19
51110-20C00
Tube,inner
20
51121-48B31
Скользящая втулка
2 180 ₽/шт
21
51171-20C00
Spring,main
22
51192-19C00
JOINT,SPRING
194 ₽/шт
23
51176-34C00
SPACER,SPRING
669 ₽/шт
24
52111-19C10
Rod ,inner
25
51354-19C10
.washer
26
51117-19C10
Кольцо уплотнительное
210 ₽/шт
27
51351-20C00
BOLT,FORK
4 066 ₽/шт
28
51117-12C00
O RING
194 ₽/шт
29
52193-19C10
Plate adjuster
30
51118-19C10
Spring
31
51835-17C00
BALL
184 ₽/шт
32
51188-19C10
Vis
33
51189-19C10
AP
594 ₽/шт
