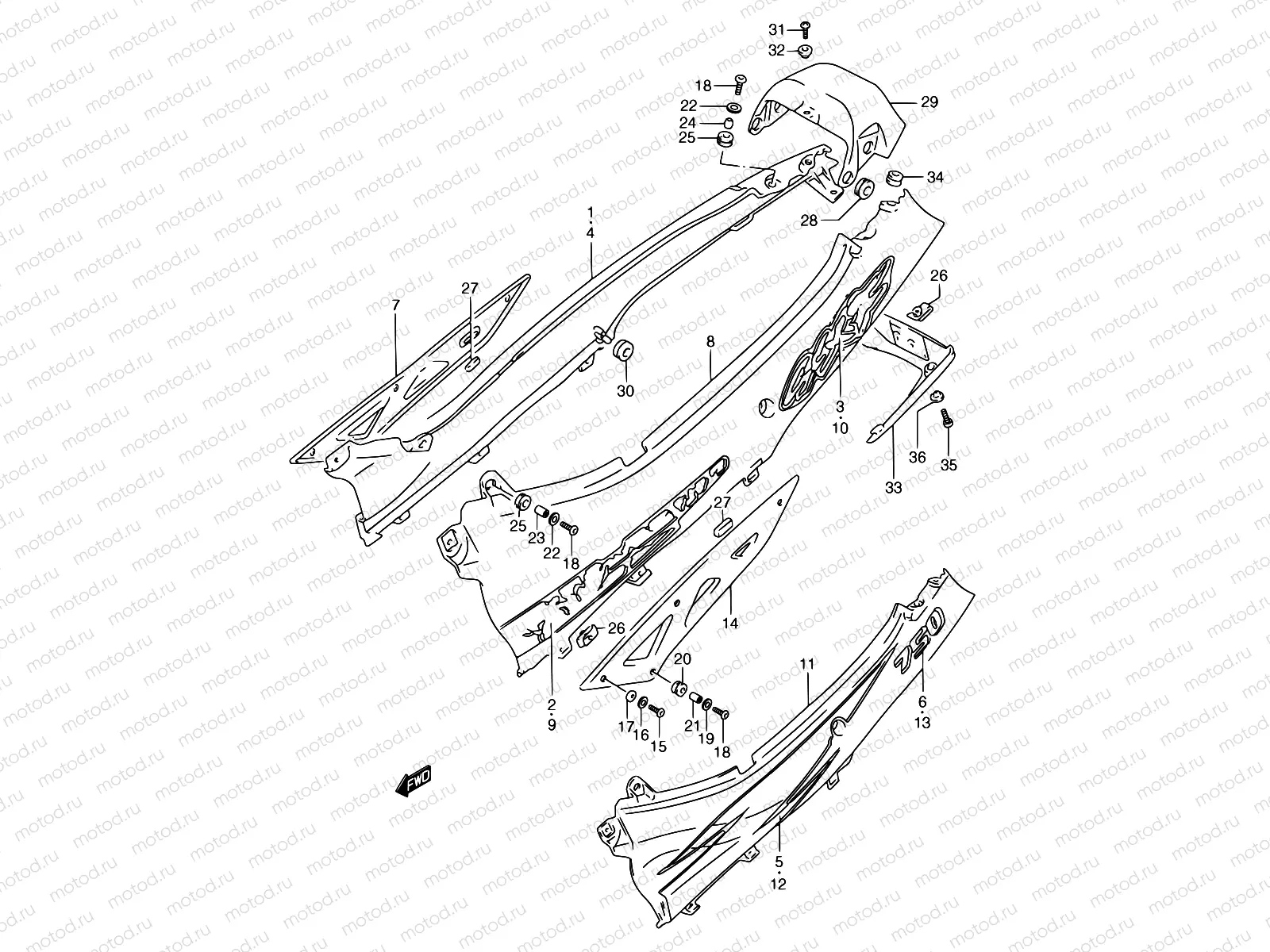

36D - FRAME COVER (MODEL S/T)

36D - FRAME COVER (MODEL S/T)
Например: 47110-21C90-Y98
4
47110-21C90-Y98
over,frame,r.
4
47110-21C90-33J
over, frame rh (black)
5
68135-21C10-Z56
Tape,frame cove
5
68135-21C10-Z55
.tape, rh
6
68131-21C30-E7H
mblem
6
68131-21C30-E7G
.emblem
7
47131-20C00
over,frame r
11
47210-21C90-Y98
over, frame lh (green)
11
47210-21C90-33J
over,frame,l.
12
68145-21C10-Z56
.tape, lh
12
68145-21C10-Z55
.tape, lh
13
68131-21C30-E7H
mblem
13
68131-21C30-E7G
.emblem
14
47231-20C00
over frame l
15
09120-06005
Screw
16
09160-06129
Шайба,6.5X16X1
102 ₽/шт
17
09320-06501
Шайба
2 420 ₽/шт
18
09139-06030
Винт (6X16)
194 ₽/шт
19
09160-06054
Шайба
129 ₽/шт
20
09320-08509
Cushion(8X22X7)
210 ₽/шт
21
09180-06092
SPACER(6.2X8.3X6.1)
226 ₽/шт
22
09160-06109
Шайба
85 ₽/шт
23
09180-06283
Кольцо/шайба
162 ₽/шт
24
09180-06038
ВТУЛКА
1 020 ₽/шт
25
09320-09016
РЕЗИНКА
162 ₽/шт
26
47153-19C01
PLATE,FRAME COVER
395 ₽/шт
27
47161-20C00
ZITTING
28
09308-16006
Втулка
1 720 ₽/шт
29
47311-20C01
OVER, FRAME CENTER (GREEN)
29
47311-20C01-33J
over,frame,ctr
30
09320-08527
Cushion
1 640 ₽/шт
31
02142-0610B
Винт держатель
85 ₽/шт
32
09169-06011
Пластина замка
759 ₽/шт
33
47321-20C00
over,frame rr.
34
94433-26B01
Cushion
35
02142-0616A
Болт
81 ₽/шт
36
09169-06011
Пластина замка
759 ₽/шт
