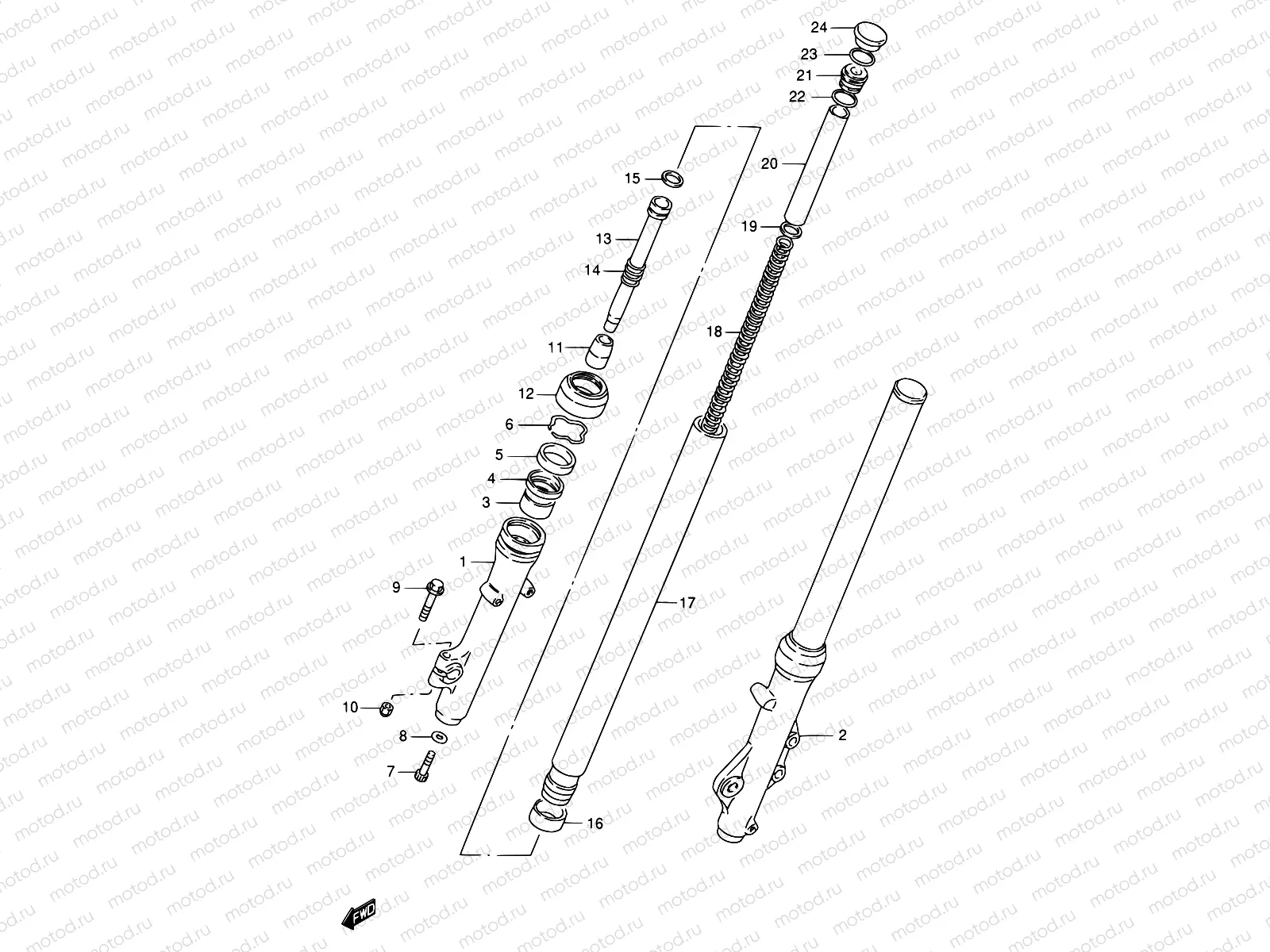

45 - FRONT DAMPER

45 - FRONT DAMPER

Например: 51103-38301

0

51103-38301

Damper assy, front fork rh

0

51104-38311

Damper assy, front fork lh

1

51130-38301

Tube,outer,r

2

51140-38311

Tube,outer,l

3

51152-11420

Направляющая втулка

1 220 ₽/шт

4

51168-38301

.spacer

5

51153-02B00

Сальник

3 145 ₽/шт

6

51156-02B00

RING,OIL SEAL STOPPER

328 ₽/шт

7

51147-48130

BOLT(8X27)

221 ₽/шт

8

51148-36011

GASKET

210 ₽/шт

9

01550-08457

Болт

113 ₽/шт

10

08316-10087

ГАЙКА

82 ₽/шт

11

51195-48000

PIECE,OIL LOCK

1 581 ₽/шт

12

51571-37310

DUST SEAL

1 627 ₽/шт

13

51146-38300

Cylinder,fr for

14

51177-36030

Пружина

344 ₽/шт

15

51196-33130

Кольцо поршневое

559 ₽/шт

16

51121-11420

BUSH

1 220 ₽/шт

17

51110-38300

Tube,fork inner

18

51171-38300

SPRING

2 581 ₽/шт

19

51172-36331

Пружина

278 ₽/шт

20

51176-36331

.collor, spring

21

51175-48500

SEAT,SPRING

633 ₽/шт

22

51181-33131

O RING

364 ₽/шт

23

51169-48500

Кольцо

172 ₽/шт

24

51189-44031

Крышка вилки

473 ₽/шт
