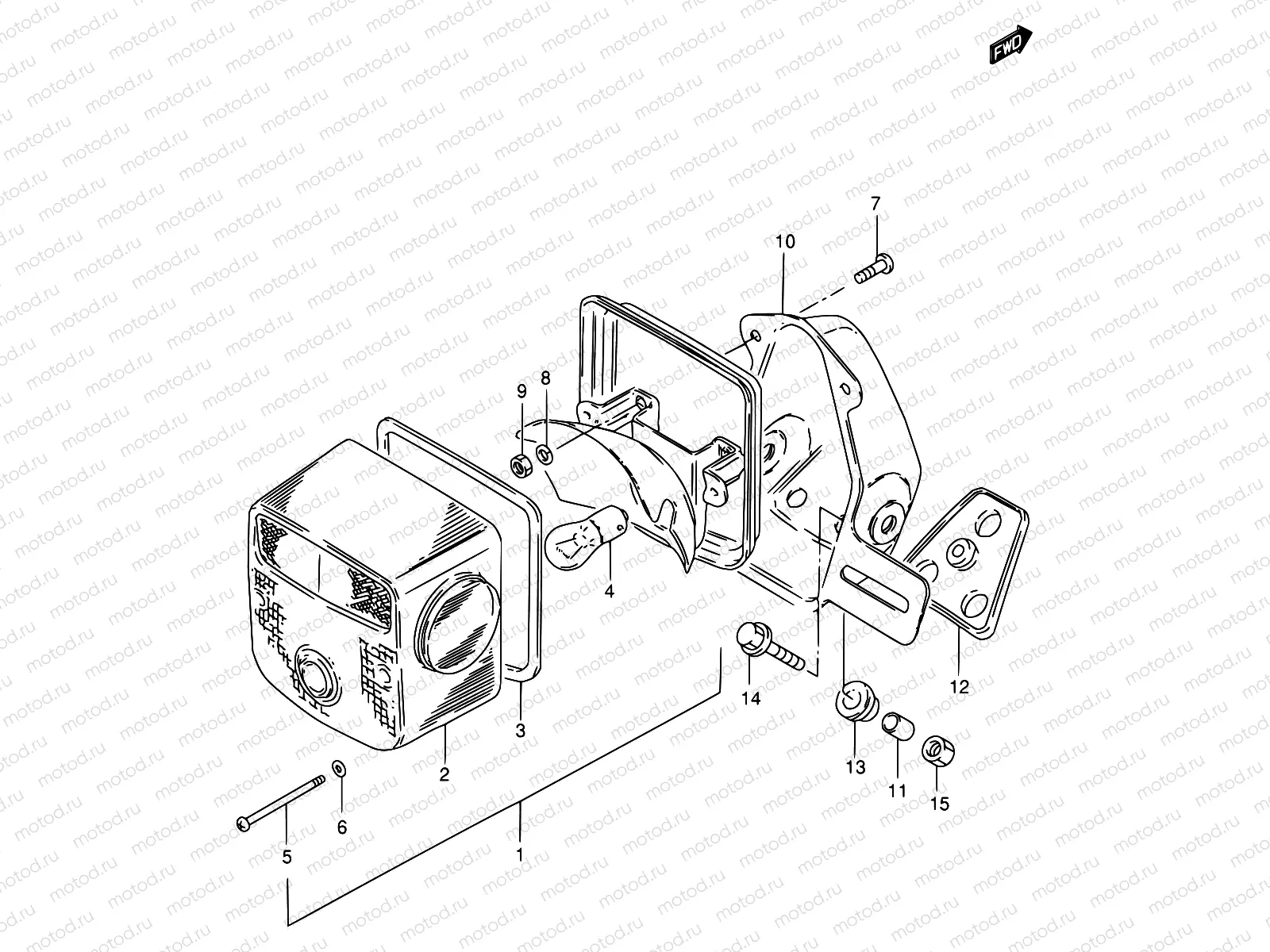

29 - REAR COMBINATION LAMP (MODEL T/W/X E25,E39,E54)

29 - REAR COMBINATION LAMP (MODEL T/W/X E25,E39,E54)

Например: 35720-38361

1

35720-38361

Lamp unit,rr co

2

35712-38361

Lens,rr combi l

3

35713-30510

Gasket

4

40503-00838-069

P21/5w,5w, bay1 (12V 21/5W BAY15d)

5

02112-04558

Болт

82 ₽/шт

6

35627-43010

GASKET

179 ₽/шт

7

02112-3616A

Болт

1 210 ₽/шт

8

08321-01067

Шайба, стопорная

81 ₽/шт

9

08310-00067

Гайка

81 ₽/шт

10

35730-38390

Bracket gn125

11

35766-26470

Кольцо/шайба

141 ₽/шт

12

35765-26470

CUSHION

555 ₽/шт

13

35764-26470

CUSHION

172 ₽/шт

14

09116-06167

БОЛТ

145 ₽/шт

15

08310-0006B

Гайка

81 ₽/шт
