Главная Каталог товаров SUZUKI EPC 350 cm³ - 699 cm³ SUZUKI DR 350 SUZUKI DR350S P SUZUKI (VIN: SK42A) 44A - REAR SHOCK ABSORBER (DR350SHN/SHP/SHR)

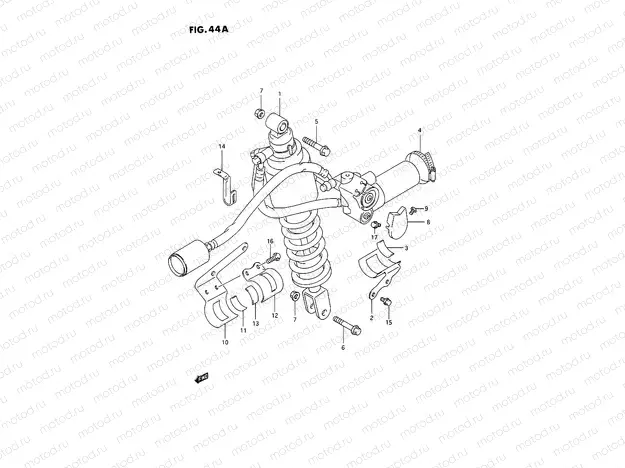

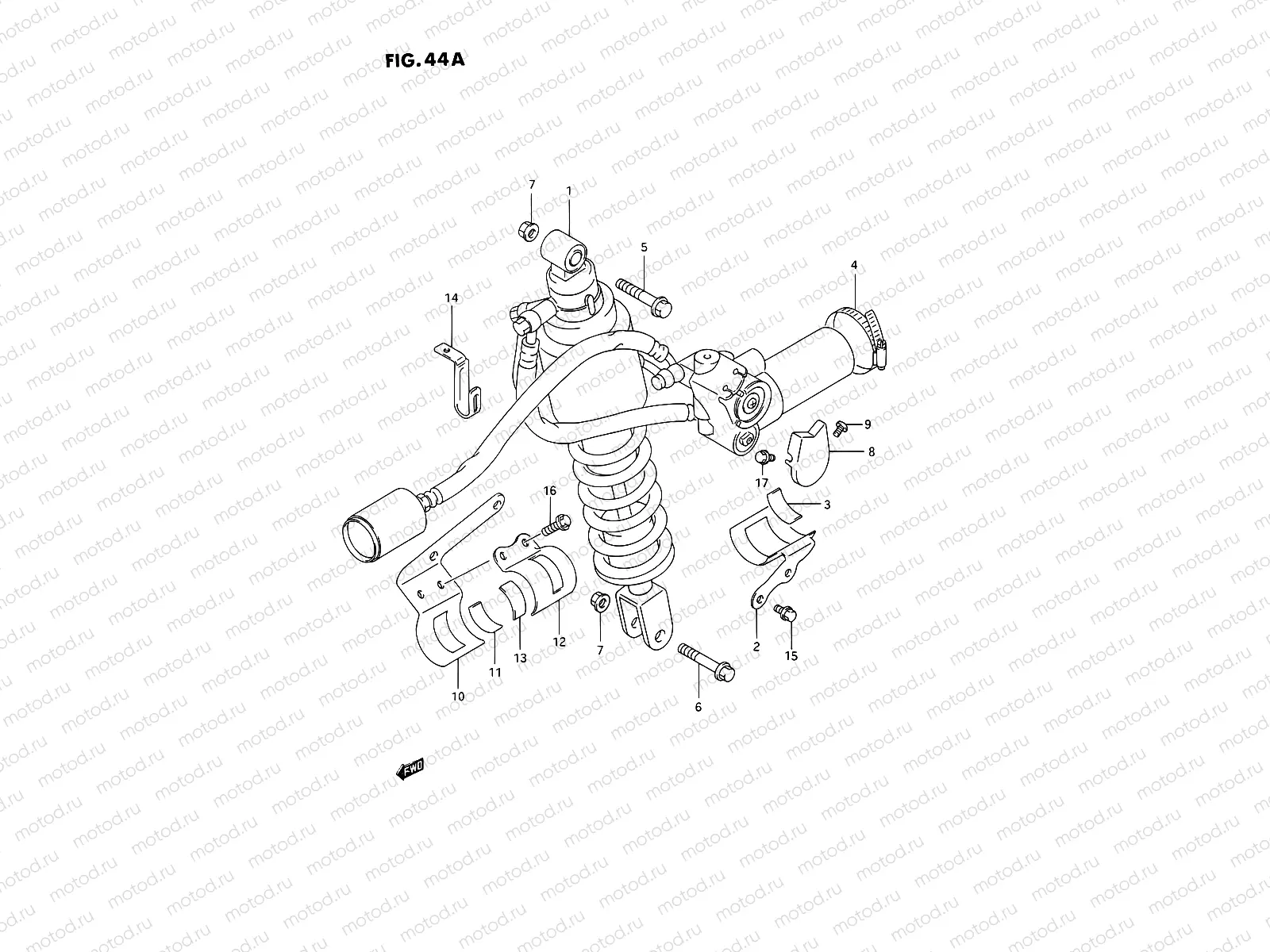

44A - REAR SHOCK ABSORBER (DR350SHN/SHP/SHR)

44A - REAR SHOCK ABSORBER (DR350SHN/SHP/SHR)

Например: 62100-14D50-1TS

1

62100-14D50-1TS

Absorber assy, rear shock (white)

2

62421-15D50

.bracket, reserver tank

3

53146-20C01

Damper

4

09402-57511

CLAMP

663 ₽/шт

5

62311-28E00

BOLT,RR SHOCK ABSORBER

414 ₽/шт

6

62648-14500

BOLT,RR CUSHION ROD UPR

697 ₽/шт

7

09159-10115

Гайка

289 ₽/шт

8

62442-15D50

Cover, chamber cap

9

02142-0508A

SCREW

85 ₽/шт

10

62445-15D50

Bracket, joint no.1

11

53146-20C01

Damper

12

62446-15D50

Bracket, joint no.2

13

53146-20C01

Damper

14

09403-15303

Clamp

15

01550-0610B

Болт

85 ₽/шт

16

01550-08127

БОЛТ

1 640 ₽/шт

16

01550-0812B

Болт

97 ₽/шт

17

01550-05083

Vis
