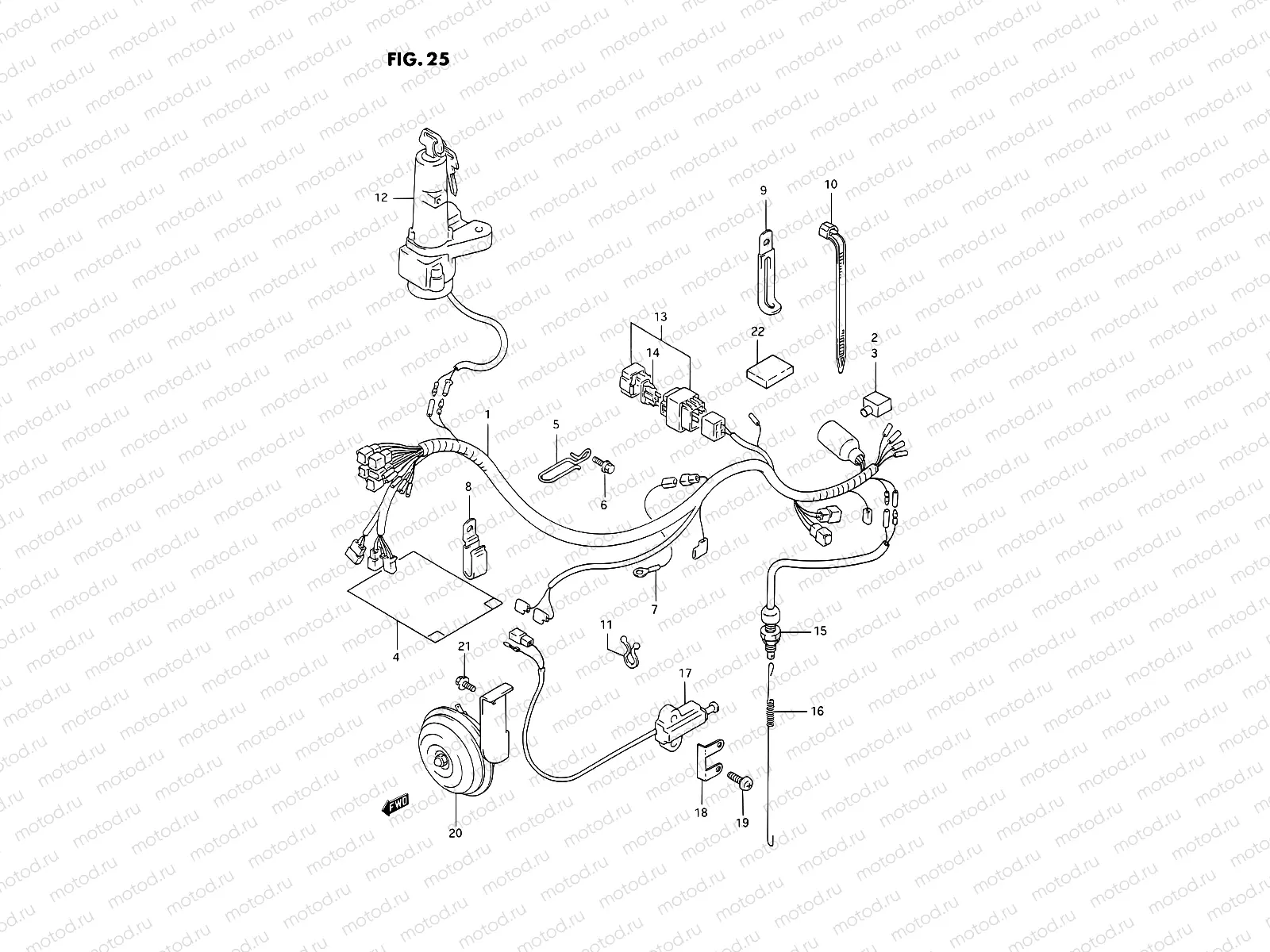

25 - WIRING HARNESS

25 - WIRING HARNESS

Например: 36610-14D21

1

36610-14D21

Harness, wiring

1

36610-14D50

Harness,wiring

2

33624-03D00

OP

3

33624-03A00

CAP,BATTERY PLUS TERMINAL

348 ₽/шт

4

36618-15D21

Cover,wiring Harness

969 ₽/шт

5

36619-15D11

GUIDE,WIRING HARNESS

1 122 ₽/шт

6

01550-0610B

Болт

85 ₽/шт

7

36851-05D00

WIRE,REGULATOR EARTH LEAD

387 ₽/шт

8

09403-06329

Clamp

2 030 ₽/шт

9

09404-06039

Clamp(L:65)

194 ₽/шт

9

09404-08420

Струбцина L:137

221 ₽/шт

9

09404-08212

Clamp

129 ₽/шт

10

09407-02401

Clamp

10

09407-14407

ЗАЖИМ

221 ₽/шт

10

09407-14403

КЛЕММА

221 ₽/шт

10

09407-18402

Струбцина (L:165)

211 ₽/шт

10

09407-25401

Хомут

221 ₽/шт

11

09408-00012

Проводка

1 210 ₽/шт

12

37110-03D01

Замок зажигания

7 912 ₽/шт

13

36740-04701

BOX ASSY,FUSE

2 635 ₽/шт

14

09481-10015-025

Fusible (15A)

15

37740-14D00

Переключатель

1 806 ₽/шт

16

09443-06080

SPRING

3 750 ₽/шт

17

37840-12X51

Switch Assy,side Stand

6 412 ₽/шт

18

37841-14D00

Протектор

606 ₽/шт

19

02142-0620B

Болт

1 060 ₽/шт

20

38500-14D02

HORN

20

38500-14D11

Horn assy

21

01550-0616B

БОЛТ

81 ₽/шт

22

36920-14D00

PROTECTOR,WIRING HARNESS

387 ₽/шт
